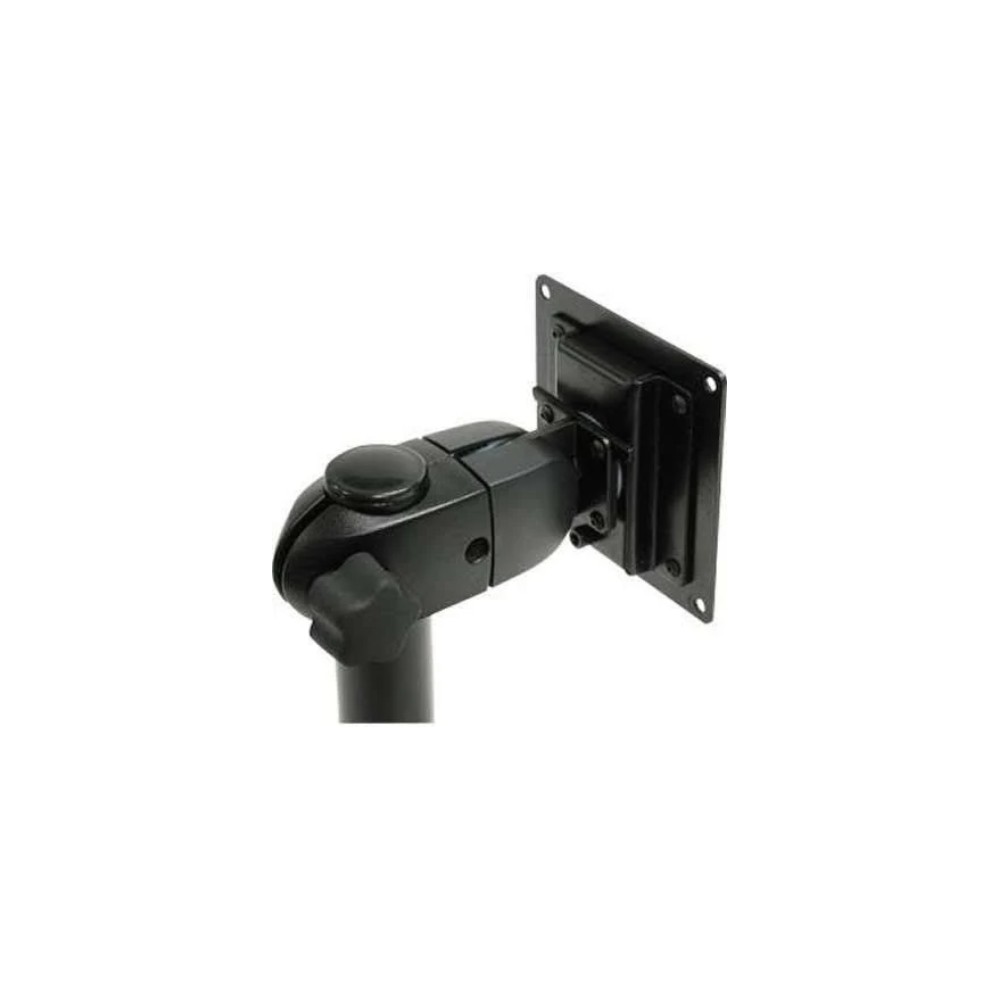

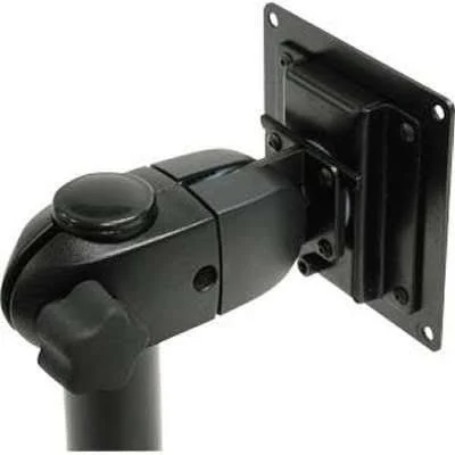

Ergotron 47-058-200 – DS100 Clamping Single Pivot, Black
Overview
The Ergotron 47-058-200 DS100 Clamping Single Pivot is a pole-mounted display pivot for the Ergotron DS100 monitor mounting system. It attaches at any point along a compatible DS100 Pole and provides height positioning, full tilt adjustment and 360° display rotation.
Technical Information
The clamping pivot supports displays up to 25 lb (11.3 kg). Display height can be repositioned along the DS100 Pole by turning the adjustment handle, while the heavy-duty friction pivot provides tilt adjustment. The display interface supports VESA MIS-D mounting patterns and provides 360° rotation.
Compatibility
The 47-058-200 is designed for the Ergotron DS100 Pole and is not compatible with the DS100 Crossbar. The clamp attaches to the DS100 Pole, which has a 1.5-inch (38 mm) diameter. Display mounting supports 75 x 75 mm and 100 x 100 mm VESA patterns.
Key Features
- DS100 Clamping Single Pivot in black
- Supports displays up to 25 lb (11.3 kg)
- Height adjustment along the DS100 Pole using the adjustment handle
- 180° tilt adjustment and 360° display rotation
- VESA MIS-D 75 x 75 mm and 100 x 100 mm compatibility
Applications
The 47-058-200 is suited to professional workstations, control desks, technical work areas and multi-display installations using the Ergotron DS100 platform. It can be positioned at different heights along the DS100 Pole to accommodate individual display layouts.
DC Supplies Product Note
The 47-058-200 is a DS100 display pivot component rather than a complete monitor stand. A compatible DS100 Pole and suitable base or mounting configuration are required. This part attaches to the DS100 Pole only and should not be specified for DS100 Crossbar installations.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 47-058-200 |
|---|
| Product | DS100 Clamping Single Pivot |
|---|
| Product Type | Monitor pivot / pole clamp |
|---|
| Series | DS100 |
|---|
| Color | Black |
|---|
| Maximum Display Size | Up to 30 in |
|---|
| Load Capacity | 25 lb (11.3 kg) |
|---|
| Height Adjustment | Along DS100 Pole |
|---|
| Tilt | 180° |
|---|
| Pan | Not specified |
|---|
| Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Pole Compatibility | DS100 Pole, 1.5 in (38 mm) diameter |
|---|
| Crossbar Compatibility | Not compatible with DS100 Crossbar |
|---|
| Product Weight | 2.9 lb (1.3 kg) |
|---|
| Shipping Weight | 4 lb (1.8 kg) |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 47-058-200?
The 47-058-200 is the Ergotron DS100 Clamping Single Pivot in black, designed to mount a display directly to a compatible DS100 Pole.
What is the maximum display weight?
The pivot supports displays weighing up to 25 lb (11.3 kg).
What display size is supported?
Ergotron and authorized distributors specify displays up to 30 inches, subject to the overall balance requirements of the DS100 stand configuration.
Which VESA patterns are supported?
The pivot supports VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
Can the display height be adjusted?
Yes. The pivot can be repositioned at different points along the DS100 Pole using its adjustment handle.
What tilt adjustment is available?
The pivot provides 180° tilt adjustment.
Does the display rotate?
Yes. The display interface provides 360° rotation.
Which Ergotron pole does it fit?
The 47-058-200 is designed specifically for the Ergotron DS100 Pole. The DS100 Pole has a 1.5-inch (38 mm) diameter.
Can it attach to an Ergotron DS100 Crossbar?
No. The 47-058-200 is designed for the DS100 Pole only and is not compatible with the DS100 Crossbar.
Is this a complete monitor stand?
No. It is an individual DS100 pivot component. A compatible DS100 Pole and appropriate base or mounting hardware are required for a complete installation.
What is the warranty?
The 47-058-200 carries a 5-year warranty.
