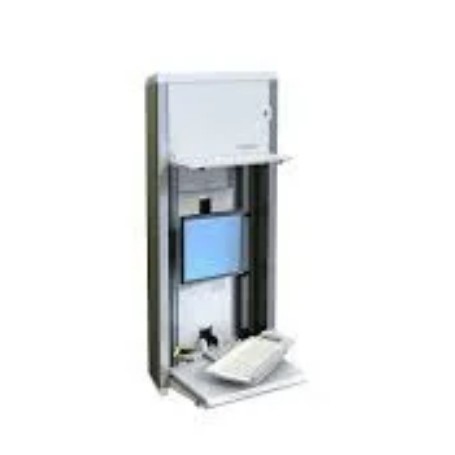

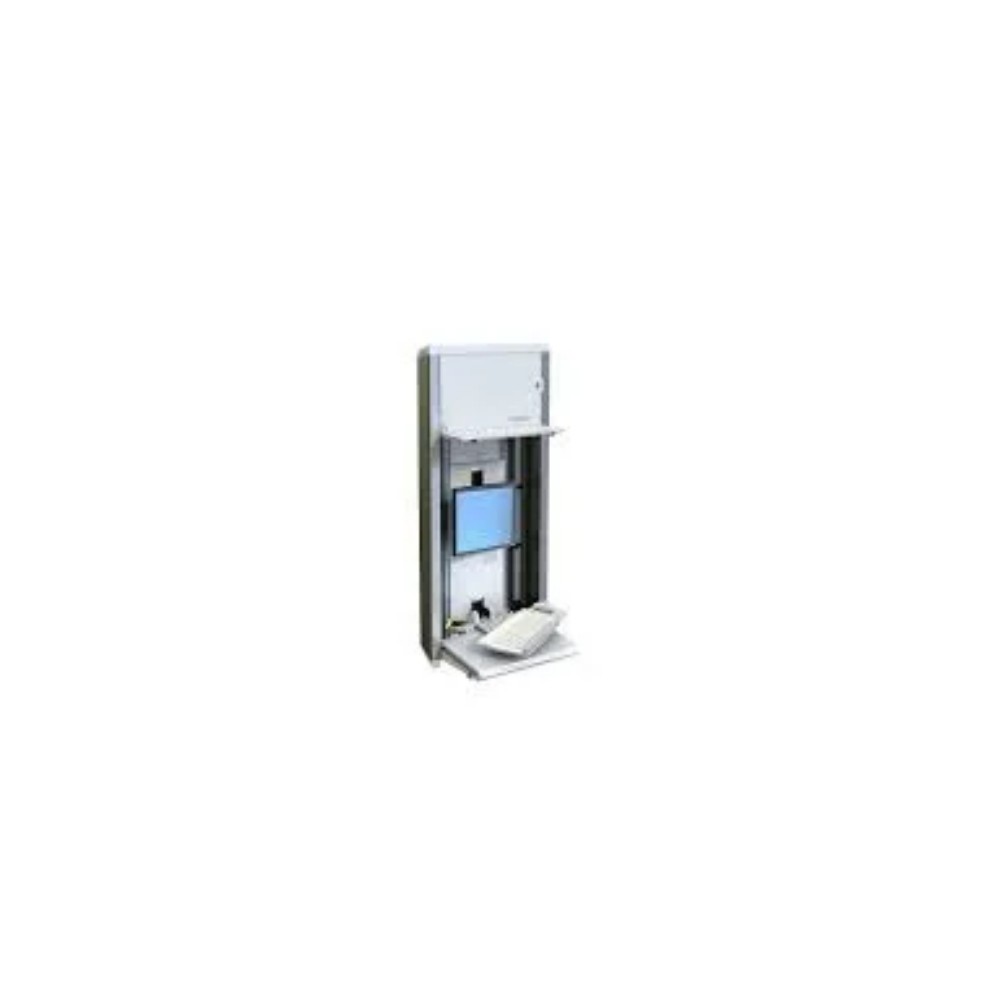

Ergotron 60-595-062 – StyleView VL Enclosure Wall-Mount Workstation
Overview
The Ergotron 60-595-062 StyleView VL Enclosure is a secure wall-mounted computer workstation designed for point-of-care environments. The low-profile enclosure combines a vertical monitor and keyboard mounting system with enclosed CPU storage, helping protect equipment and patient data while providing ergonomic adjustment for multiple users.
Technical Information
The StyleView VL Enclosure provides 9 inches (23 cm) of smooth tandem vertical adjustment for the monitor and keyboard. The monitor platform supports displays up to 22 inches with an 8–33 lb (3.6–15 kg) total vertical-lift load rating. The monitor can pan through 10°, while the slide-out keyboard tray extends an additional 5 inches (13 cm) and pans for user positioning.
Compatibility
The enclosure supports VESA MIS-D displays using 75 x 75 mm or 100 x 100 mm mounting patterns. The maximum specified monitor physical dimensions are 20.7 inches wide, 14.7 inches high and 2.75 inches deep. The enclosed CPU compartment accommodates systems up to 13.75 inches wide, 12.75 inches high and 3.75 inches deep.
Key Features
- Secure wall-mounted StyleView VL workstation configuration
- 9-inch (23 cm) vertical adjustment for monitor and keyboard
- Keyless locking mechanism for securing the enclosure and computer equipment
- Separate ventilated CPU compartment for small-form-factor and ultra-small-form-factor computers
- Slide-out keyboard tray with wrist rest, mouse pouch and scanner holder
Applications
The 60-595-062 is designed for healthcare point-of-care applications including patient rooms, clinical work areas and other space-constrained environments. Its wall-mounted configuration keeps computing equipment close to the point of care while the enclosure and keyless locking system help protect technology and sensitive information.
DC Supplies Product Note
The 60-595-062 is the white StyleView VL Enclosure. It is a complete wall-mounted workstation enclosure rather than a standalone monitor arm or basic wall mount. The listed load capacity applies to the vertical-lift engine and includes the monitor plus contents of the keyboard tray, mouse pouch and scanner holder.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 60-595-062 |
|---|
| Product | StyleView VL Enclosure |
|---|
| Product Type | Wall-mount computer workstation |
|---|
| Color | White |
|---|
| Typical Display Size | Up to 22 in |
|---|
| Weight Capacity | 8–33 lb (3.6–15 kg) |
|---|
| Vertical Lift | 9 in (23 cm) |
|---|
| Monitor Pan | 10° |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Maximum Monitor Dimensions | 20.7 W × 14.7 H × 2.75 D in |
|---|
| Maximum CPU Dimensions | 13.75 W × 12.75 H × 3.75 D in |
|---|
| Enclosure Dimensions | 27.2 W × 60.6 H × 6.75 D in closed; 20.6 D in open |
|---|
| Keyboard Tray | Slide-out, negative-tilt |
|---|
| CPU Compartment | Separate locking compartment |
|---|
| Mounting | Wall mount |
|---|
| Cable Management | Internal |
|---|
| Warranty | 5 years; 1 year on electronic components |
|---|
FAQs
What is the Ergotron 60-595-062?
The 60-595-062 is the Ergotron StyleView VL Enclosure, a secure wall-mounted computer workstation for healthcare and point-of-care environments.
What display size does it support?
The specified typical display size is up to 22 inches. Maximum monitor physical dimensions are 20.7 inches wide, 14.7 inches high and 2.75 inches deep.
What is the weight capacity?
The vertical-lift engine is rated for 8–33 lb (3.6–15 kg). This rating includes the monitor and the contents of the keyboard tray, mouse pouch and scanner holder.
How much vertical adjustment is available?
The monitor and keyboard provide 9 inches (23 cm) of tandem vertical adjustment.
Does the monitor pan?
Yes. The monitor provides 10° of pan adjustment.
What VESA patterns are supported?
The enclosure supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.
What size computer can be installed?
The CPU compartment accommodates computers up to 13.75 inches wide, 12.75 inches high and 3.75 inches deep.
Does it include a keyboard tray?
Yes. The workstation includes a slide-out keyboard tray, wrist rest, mouse pouch and scanner holder.
How is the computer secured?
The enclosure uses a keyless locking mechanism and includes a separate locking CPU compartment to help protect equipment and patient data.
How does cable management work?
Internal cable management is included, with cable access openings that allow connections to pass through the enclosure.
What is the warranty?
The StyleView VL Enclosure carries a 5-year warranty, with a 1-year warranty on electronic components.
