Ubiquiti UA-G3-SK-Elevator – G3 Elevator Access Control Starter Kit
Overview
The Ubiquiti UA-G3-SK-Elevator is a G3 Elevator Starter Kit designed for UniFi Access elevator control. It connects to in-elevator readers over PoE and authorizes floor selection while providing digital inputs for elevator car position, car status, door status, and emergency signals.

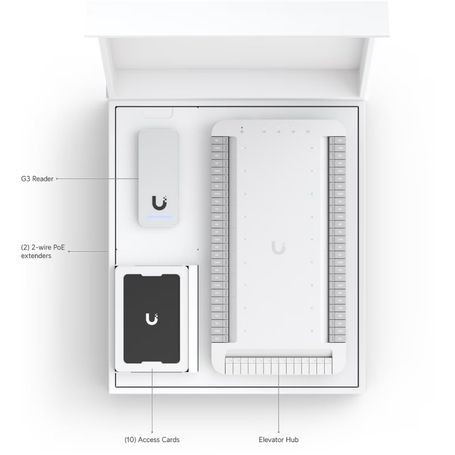

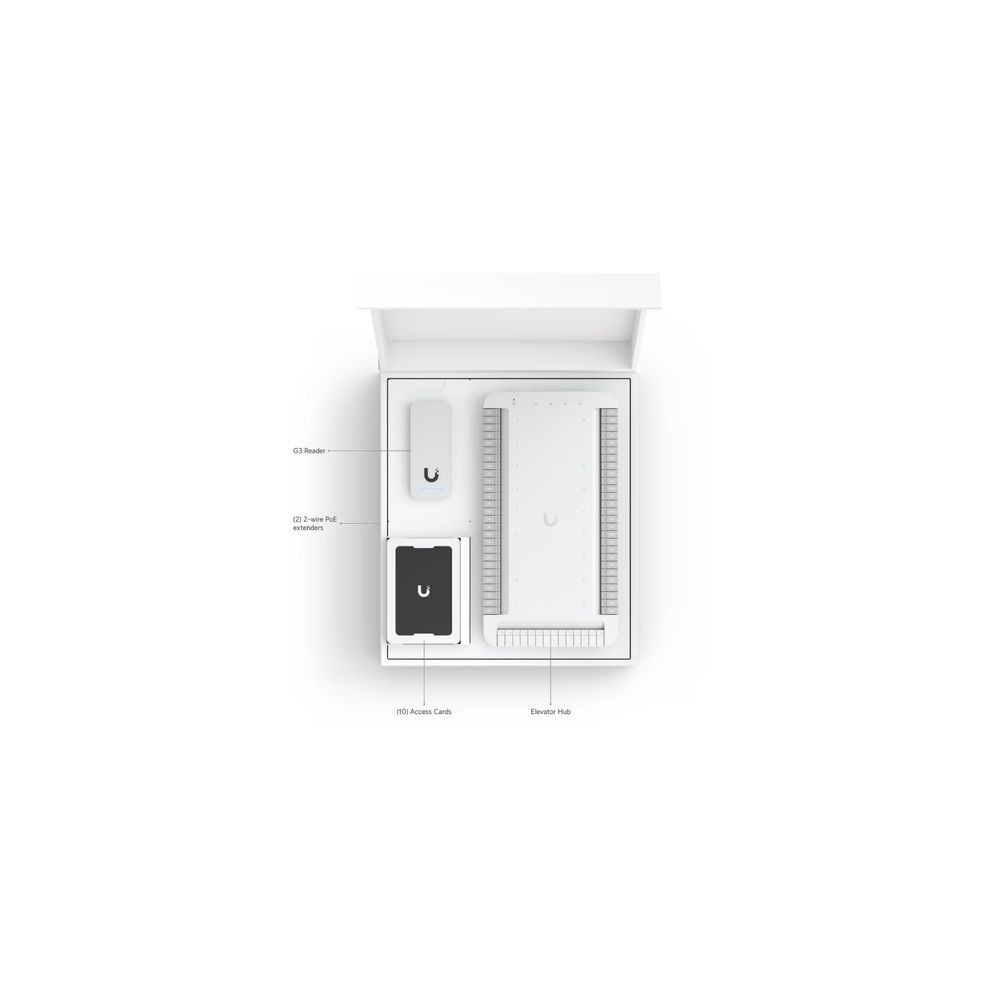

The Elevator Hub supports up to 18 floors through its relay outputs and supports up to 6,000 users. The kit includes one Elevator Hub, one G3 Reader, two 2-wire PoE extenders, and ten Access Cards.
Technical Information
The Elevator Hub provides four 10/100/1000 Base-T interfaces, one PoE++ input, and four PoE+ outputs rated at 30W per port with a maximum aggregated output of 45W. It provides 18 relays rated at 30V DC and 2A for elevator control.
The hub includes digital inputs for emergency status, 5-bit elevator car position, car status including Up/Down/Stop/Full, and door Open/Close status. The G3 Reader provides NFC credentials, Apple and Google Wallet support, mobile unlock, Touch Pass, and handwave request-to-exit functionality.
Compatibility
The UA-G3-SK-Elevator is designed for UniFi Access deployments requiring elevator floor access control. The Elevator Hub connects to compatible in-elevator readers using PoE and provides relay outputs for floor authorization. The G3 Reader supports indoor and outdoor installation and connects through 10/100 MbE Ethernet.
Applications
- Commercial building elevator access control
- Multi-floor office and enterprise buildings
- UniFi Access elevator deployments supporting up to 18 floors
- Elevator systems requiring card, keyfob, mobile or wallet credentials
- Access-controlled buildings requiring emergency and elevator status inputs
Key Features
- Supports elevator access control for up to 18 floors
- Elevator Hub with 18 relay outputs rated 30V DC / 2A
- G3 Reader with NFC, mobile unlock, Apple/Google Wallet and Touch Pass
- PoE++ hub input with four PoE+ outputs for connected readers
- Includes two 2-wire PoE extenders and ten Access Cards
DC Supplies Product Note
The Elevator Hub uses PoE++ and provides PoE+ outputs at 50V DC, while the G3 Reader uses PoE with a supported 48V DC range. Ubiquiti recommends Cat 5e as the minimum performance category for PoE cabling and specifies minimum conductor gauges for PSE-to-device connections.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-G3-SK-Elevator |
| Product Type | G3 Elevator Access Control Starter Kit |
| Management Application | UniFi Access |
| Maximum User Count | 6,000 |
| Elevator Floors | Up to 18 floors |
| Elevator Hub Dimensions | 129.3 x 244.7 x 33.6 mm |
| Elevator Hub Weight | 537 g |
| Elevator Hub Networking | 4 x 10/100/1000 Base-T |
| Elevator Hub PoE Input | 1 x PoE++, 50V DC, 1.2A |
| Elevator Hub PoE Outputs | 4 x PoE+, 50V DC, 30W per port, 45W maximum aggregated |
| Elevator Hub Relays | 18 x 30V DC / 2A |
| Elevator Hub Maximum Power | 7W without PoE output |
| G3 Reader Dimensions | 93 x 40 x 36.5 mm |
| G3 Reader Weight | 82 g |
| G3 Reader Networking | 1 x 10/100 MbE RJ45 |
| G3 Reader Connectivity | BLE 4.1, NFC |
| G3 Reader Power | PoE, 48V DC supported voltage |
| G3 Reader Maximum Power | 5W |
| G3 Reader Weatherproofing | IP55 |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | <30 mm |
| Operating Temperature | Hub: -10 to 40°C; Reader: -30 to 45°C |
| Certifications | CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti UA-G3-SK-Elevator?
It is a UniFi Access starter kit designed to control elevator floor selection using connected in-elevator readers and the Elevator Hub.
How many elevator floors does the kit support?
The Elevator Hub supports up to 18 floors through its relay outputs.
How many users does the Elevator Hub support?
Ubiquiti specifies a maximum user count of 6,000.
What is included in the kit?
The kit includes one Elevator Hub, one G3 Reader, two 2-wire PoE extenders, and ten Access Cards. Ubiquiti also includes 10 free one-year Touch Passes.
What credentials does the G3 Reader support?
The G3 Reader supports NFC cards and keyfobs, Touch Pass, Apple and Google Wallet, mobile unlock, and handwave request-to-exit.
How is the Elevator Hub powered?
The Elevator Hub supports PoE++ input and can also use specified UL 294 Class 2 or UL 60950-1/62368-1 LPS/PS2 power supplies.
