Detailed Specifications
Eaton B126-1A1 HDMI over Cat5 6 Extender Kit Compatible Tripp Lite
Overview :

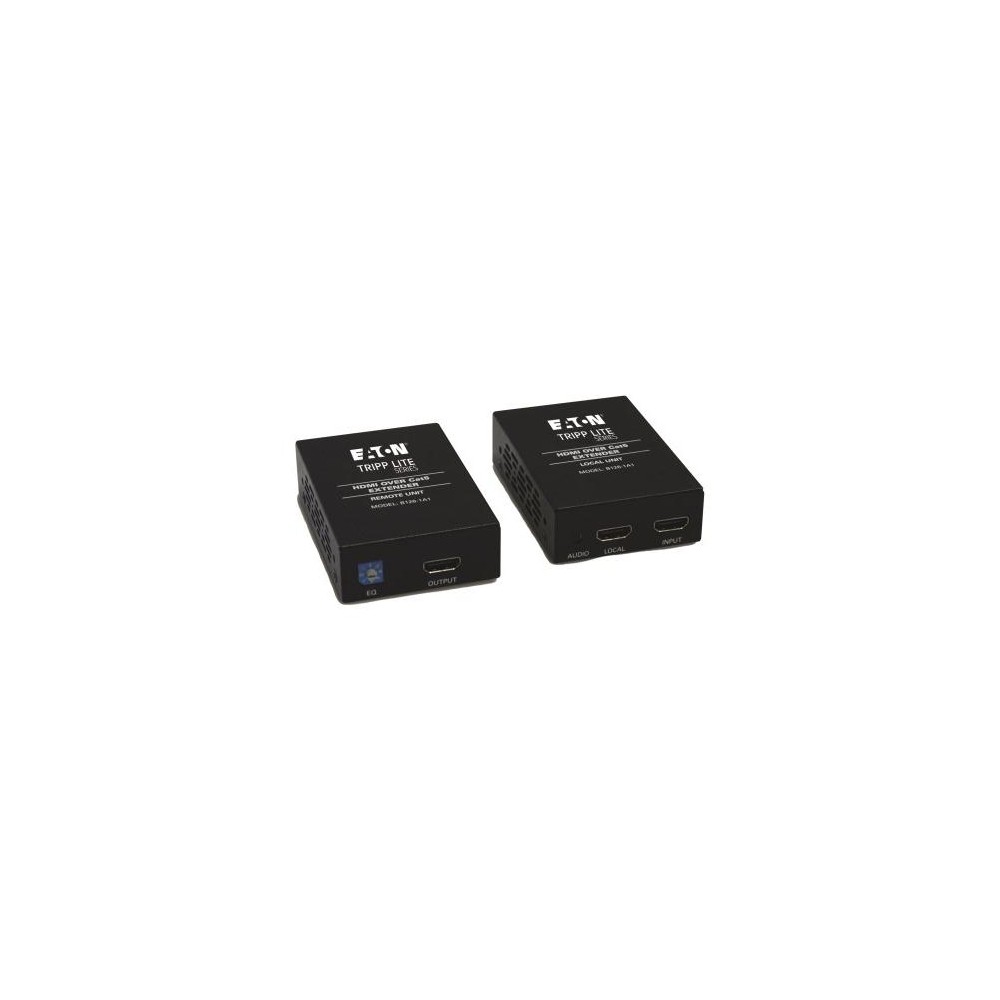

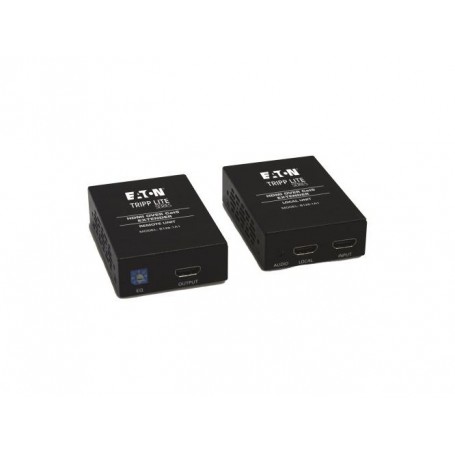

The Eaton B126-1A1 is a box-style HDMI over Cat5/6 extender kit that includes both transmitter and receiver units. It extends HDMI video and audio to a display up to 150 ft. (45 m) using user-supplied Cat5e/6 cable, supporting resolutions up to 1920 × 1080 (1080p) at 60 Hz. It is designed for plug-and-play installation and includes external power supplies and mounting hardware.
Key Features :
- Extends HDMI audio/video up to 150 ft. (45 m)
- Supports 1080p resolution at 60 Hz
- Uses Cat5e/Cat6 cabling for signal extension
- Includes transmitter and receiver
- Supports stereo and multi-channel audio
- Built-in equalization for image adjustment
- Extra HDMI output on transmitter for local monitoring
- TAA compliant
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | B126-1A1 |
| Product Type | HDMI Extender Kit |
| Extension Method | CATx |
| Recommended Cable | Cat5/Cat5e/Cat6 |
| Maximum Distance | 150 ft. (45 m) |
| Maximum Resolution | 1920 × 1080 (1080p) @ 60 Hz |
| Video Interface | HDMI |
| Audio | Stereo / 7.1-channel |
| HDCP | 1.4 |
| Color Depth | 24-bit True Color |
| Housing | Steel |
| Power | 100–240V AC adapters |
| Mounting | Wall mount |
| Compliance | TAA, FCC, RoHS, REACH |
