Detailed Specifications

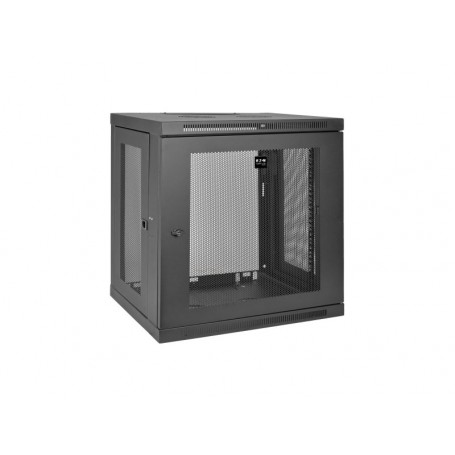

Eaton SRW12U 12U Wall-Mount Rack Enclosure Compatible Tripp Lite
Overview :
The Eaton SRW12U is a SmartRack 12U low-profile wall-mount rack enclosure designed for EIA-standard 19-inch networking and IT equipment. It is suitable for network wiring closets, retail locations, classrooms, back offices and other areas where floor space is limited.
The enclosure provides 12U of rack space and accommodates equipment up to 16.5 inches deep. Its steel cabinet has ventilation on the sides, front, top and bottom to support airflow, while the locking design provides physical equipment security.
Key Features :
- 12U rack capacity
- EIA-standard 19-inch equipment
- Wall-mount design
- Supports equipment up to 16.5 in. deep
- 200 lb static load capacity
- Locking steel cabinet
- Flow-through ventilation
- Two vertical mounting rails
- Optional caster mounting for floor use
- Black finish
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SRW12U |
| Product Type | Rack Enclosure |
| Rack Height | 12U |
| Rack Width | 19 in. |
| Mounting | Wall Mount |
| Rack Depth | Shallow |
| Max Device Depth | 16.5 in. |
| Load Capacity | 200 lb |
| Rails | 2 |
| Material | Steel |
| Color | Black |
| Compliance | EIA-310-E, RoHS, UL 60950-1 |
