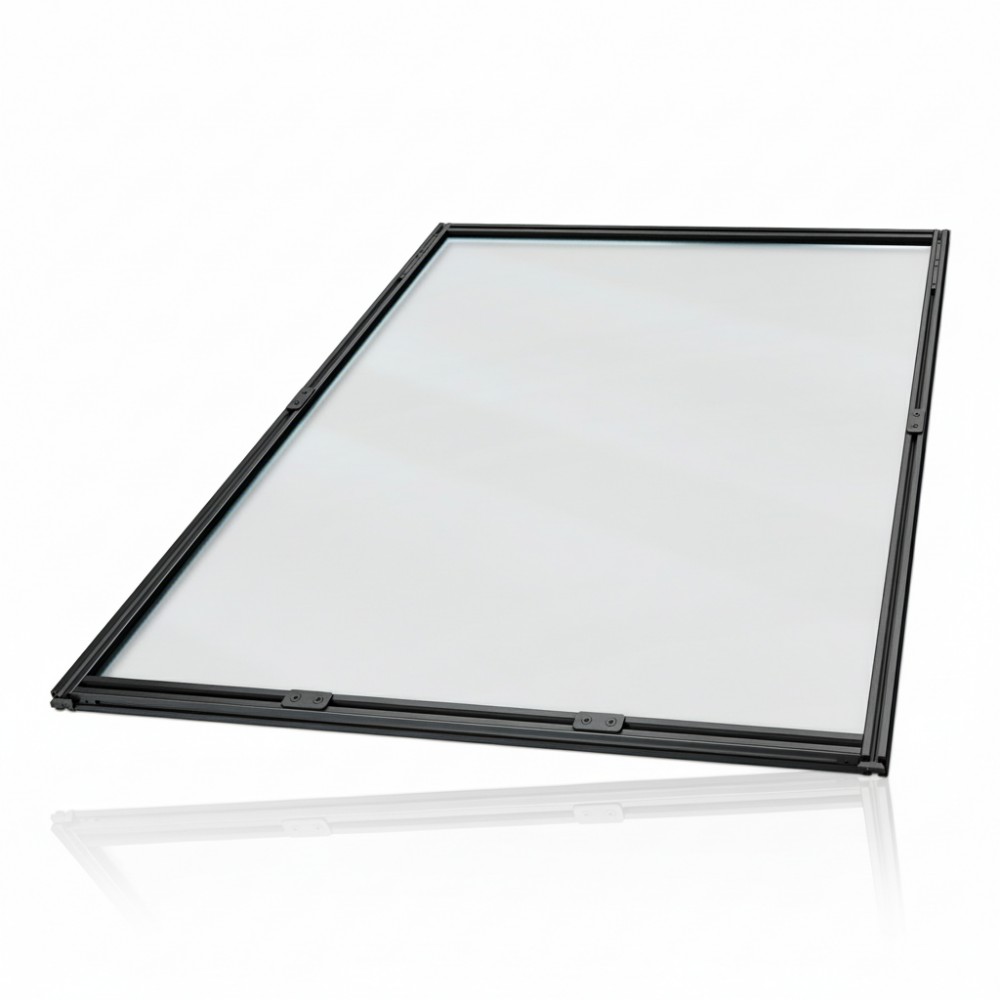

APC ACDC2305 - NetShelter Aisle-Containment Duct Panel (1012 × 1041 mm)
Overview
The APC ACDC2305 is a horizontal duct-panel component for use in NetShelter aisle-containment systems. It's designed for data-centre or network-room deployments where predictable airflow and thermal separation are critical. Installed in the ceiling of a containment aisle, this panel helps close off the overhead ductwork, forming a sealed return or supply path in hot-aisle or cold-aisle configurations. Its 1012 mm width and adjustable height (up to 1041 mm) make it flexible for different aisle-height designs. Engineers use these to maintain a modular, efficient containment system that maximizes cooling capacity and reduces thermal leakage between aisles.
Key Features
1012 mm (40 in) wide panel matches standard NetShelter duct-rail spacing.
Up to 1041 mm height, allowing vertical flexibility based on your ceiling-duct design.
Made of steel for structural integrity and durability in overhead containment.
Low-profile design (only ~30 mm thick), minimizing vertical space usage.
RoHS and REACH compliant, aligning with environmental safety standards.
Covered by a 5-year limited warranty, giving long-term confidence in containment infrastructure.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2305 |
| Product Type | Aisle Containment Duct Panel |
| Panel Width | 1012 mm (≈ 40 in) |
| Maximum Height | 1041 mm (≈ 41 in) |
| Depth / Length | 1072 mm (42.2 in) |
| Thickness | ~30 mm (1.18 in) |
| Weight | ~4.91 kg (10.82 lb) |
| Material / Finish | Steel, black finish |
| Environmental Compliance | RoHS, REACH |
| Warranty | 5-Year Limited |
