Detailed Specifications

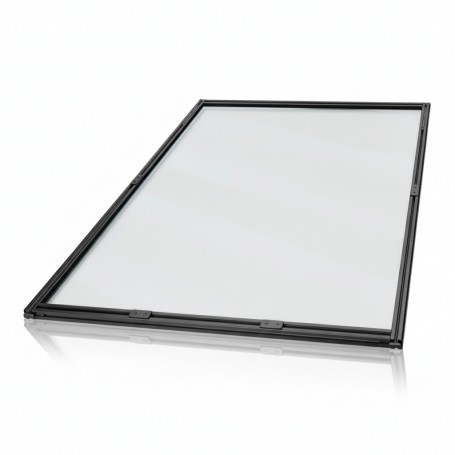

APC ACDC2304 - NetShelter Aisle-Containment Duct Panel (1012 mm × up to 787 mm)
Overview
The APC ACDC2304 is a duct-panel component in APC's NetShelter aisle-containment system. It serves to close off sections of the overhead duct ceiling in a modular containment installation, helping data-centre engineers maintain thermal separation in hot/cold aisle environments. With a width of 1012 mm and a maximum height of 787 mm, this panel provides flexibility in containment ceiling design while delivering a clean, sealed airflow path. The V-0 flame rating ensures safety compliance, making it suitable for enterprise-grade thermal containment. It integrates with containment rails, headers, and other panels to build out a robust, predictable cooling architecture.
Key Features
1012 mm wide × fits standard NetShelter rail spans for ceiling duct modules.
Up to 787 mm height, allowing vertical flexibility in the containment ceiling.
V-0 flame-rating ensures fire-safety compliance in containment designs.
Steel construction provides structural integrity and rigidity while sealing airflow.
Lightweight (~4.7 kg) × easy to handle and install in overhead rails.
RoHS / REACH certified × meets environmental and regulatory standards
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2304 |
| Product Type | Aisle-Containment Duct Panel |
| Width | 1012 mm |
| Max Height | 787 mm |
| Depth (Length) | 1072 mm (42.2 in) |
| Thickness / Panel Height | ~30 mm (1.2 in) |
| Net Weight | ~4.71 kg (~10.38 lb) |
| Material / Finish | Steel, black finish |
| Flame Rating | V-0 (safety-rated) |
| Environmental Compliance | RoHS, REACH |
