Detailed Specifications

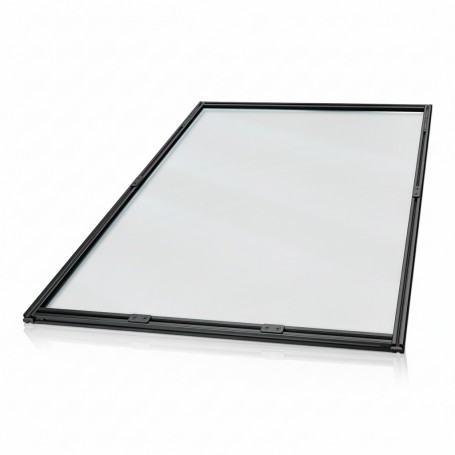

APC ACDC2310 - 1,012 mm × 1,524 mm V-0 Duct Panel
Overview
The APC ACDC2310 is a tall duct panel for the NetShelter / EcoAisle aisle-containment system. It spans up to 1,524 mm (60 in) in height and provides a sealed compartment for vertical airflow, helping to control thermal zones in hot- or cold-aisle containment designs. Its V-0 rating gives it flame-retardant properties, making it suitable for deployments that demand higher fire-safety compliance.In practice, this panel is used to close off or extend duct sections that run vertically in your containment architecture, particularly when containment needs to go from ceiling level down to rack height or vice versa. It integrates with APC's duct rails and other containment panels to maintain a continuous, sealed airflow path.
Key Features
1,012 mm (40 in) width: aligns with standard duct modules in the containment frame.
Up to 1,524 mm (60 in) height: supports very tall vertical duct runs.
V-0 fire-rated: supports fire safety and code compliance in containment.
Robust construction: rigid panel helps maintain airflow integrity.
RoHS / REACH compliant: environmentally responsible design with a 5-year APC warranty.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2310 |
| Product Type | Aisle Containment Duct Panel |
| Key Spec × Width | 1,012 mm (40 in) |
| Key Spec × Maximum Height | 1,524 mm (60 in) |
| Key Spec × Fire Rating | V-0 (flame-retardant) |
| Weight | ~8.33 kg (18.36 lb) |
| Depth | ~1,072 mm / 42.2 in |
| Management | Passive (no electronics) |
| Power Requirements | None |
| Operating Environment | Indoor, NetShelter / EcoAisle containment systems |
| Compliance | RoHS, REACH |
