Detailed Specifications

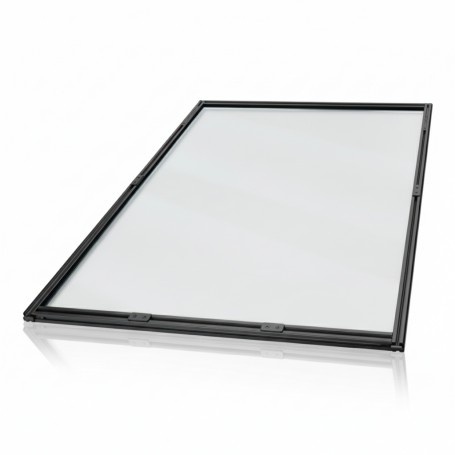

APC ACDC2309 - Duct Panel for NetShelter Containment
Overview
The APC ACDC2309 is a duct panel used in NetShelter / EcoAisle containment systems. It fills tall duct sections (up to 1,524 mm high) in containment designs, helping form a fully sealed hot- or cold-aisle path. This panel is useful in data centers where long vertical runs are needed × for example, to route overhead containment from ceiling to rack level.This panel supports consistent airflow management by minimizing leaks in tall ductwork, improving thermal isolation, and enabling predictable containment behavior across row- or room-level deployments.
Key Features
1,012 mm (40 in) width: aligns with standard duct modules.
Up to 1,524 mm (60 in) height: supports tall vertical containment duct runs.
Solid construction: ensures a robust physical barrier for isolation.
RoHS / REACH compliance: built to meet environmental standards.
5-year APC warranty: reliable for long-term containment deployment.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2309 |
| Product Type | Aisle-Containment Duct Panel |
| Key Spec × Width | 1,012 mm (40 in) |
| Key Spec × Maximum Height | 1,524 mm (60 in) |
| Key Spec × Depth | ~1,072 mm (42.2 in) |
| Weight | ~6.41 kg (~14.1 lb) |
| Management | Passive hardware (no electronics) |
| Power Requirements | None |
| Operating Environment | Indoor, rack / row / room-level containment systems |
| Compliance | RoHS, REACH |
