Detailed Specifications

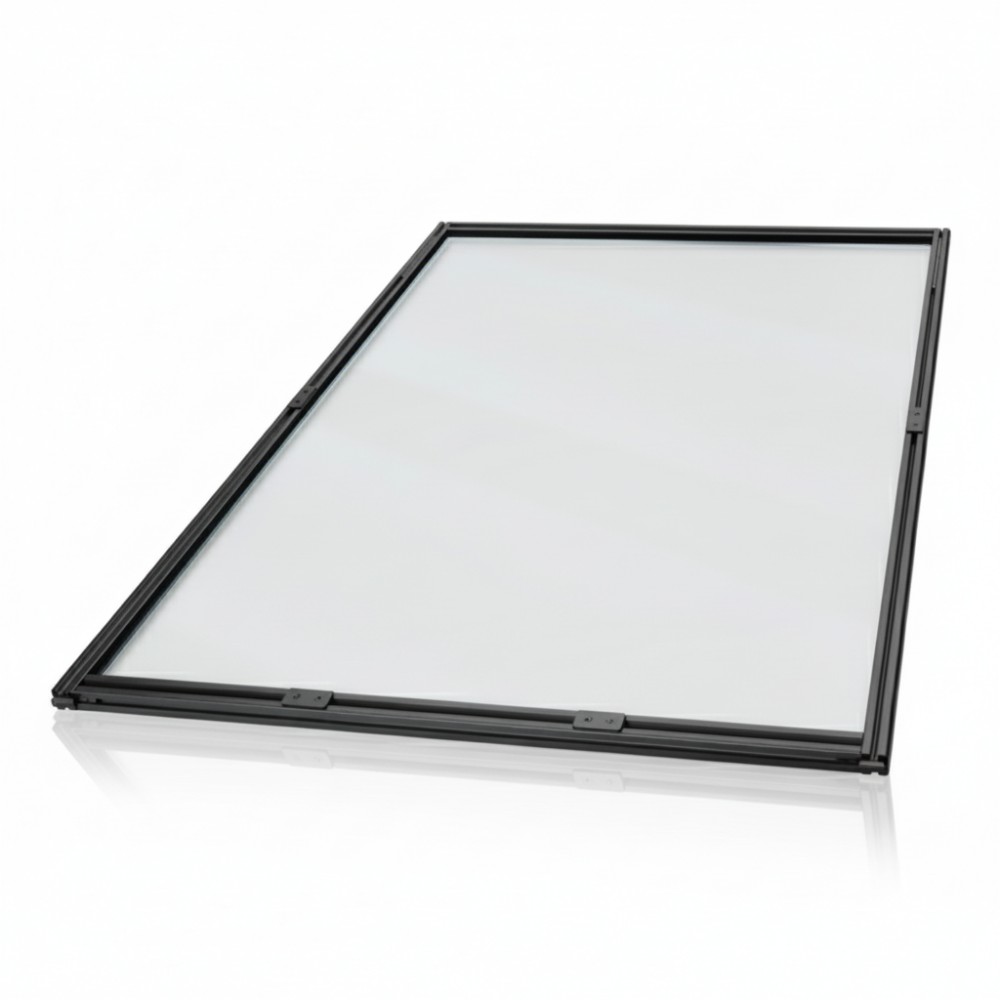

APC ACDC2307 - 1,012 mm × 1,270 mm V-0 Duct Panel
Overview
The APC ACDC2307 is a side or top duct panel designed for NetShelter / EcoAisle aisle-containment systems. Its dimensions (1,012 mm wide by up to 1,270 mm high) make it suitable for tall containment duct runs, helping to maintain a sealed thermal path and reducing air leakage in hot- or cold-aisle designs. The panel is V-0 rated, which means it offers flame-retardant protection × a critical factor for containment installations where fire safety is a design concern.In real-world deployments, this panel is typically used to close off vertical duct sections, either alongside the rack row or above containment ceilings. This helps enforce airflow compartmentalization, improves cooling efficiency, and supports compliance with fire-safety regulations.
Key Features
1,012 mm wide: covers standard 40″ duct modules in NetShelter containment.
Up to 1,270 mm tall: accommodates tall duct runs for larger containment designs.
V-0 fire rating: reduces risk of flame spread in containment ductwork.
Rigid construction: ensures structural stability and good sealing.
RoHS / REACH compliant: built with environmentally responsible materials.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC2307 |
| Product Type | Aisle-Containment Duct Panel |
| Key Spec × Width | 1,012 mm (40 in) |
| Key Spec × Maximum Height | 1,270 mm (50 in |
| Key Spec × Fire Rating | V-0 flame-retardant |
| Weight | ~5.64 kg (12.43 lb) |
| Management / Control | Passive (no electronics) |
| Power Requirements | None |
| Operating Dimensions (Depth) | ~1,071 mm (42.2 in) |
| Operating Environment | Indoor, NetShelter / EcoAisle containment systems |
| Compliance | RoHS, REACH |
