Detailed Specifications

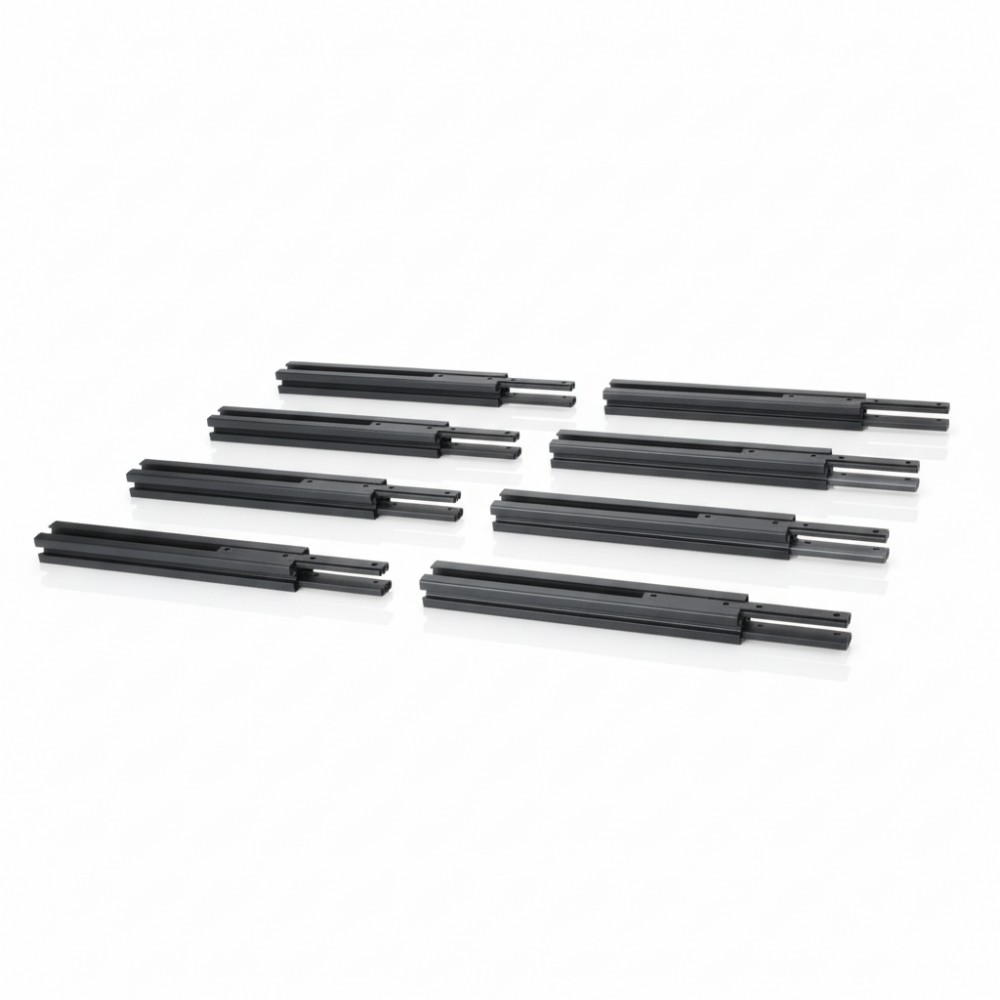

APC ACDC2311 - End-of-Aisle Duct Frame Extension (1200-1800 mm)
Overview
The APC ACDC2311 is a duct-frame extension module designed for integration into end-of-aisle containment systems in data centres or network rooms. It's aimed at network/infrastructure engineers who need to extend the hot-aisle or cold-aisle containment up to 1200-1800 mm (48-72 in) width aisles, enabling controlled airflow and cable management at the containment edge. This extension helps manage return air or supply air ducting in row-based rack layouts, particularly in high density rack clusters. The module fits at the end of a containment aisle, making it suitable for deployments where a row terminates at a wall or open space, ensuring the containment remains sealed and airflow is controlled. It works as part of the overall enclosure/cooling ecosystem provided by APC (Schneider Electric), so compatibility with existing NetShelter/containment frames is expected.
Key Features
Extends duct-frame containment for end-of-aisle configurations in aisles with widths of ~1200-1800 mm (48-72 in).
Engineered for modular integration with rack and row containment systems to support large-scale cooling and cable access.
Provides structured duct pathway for either hot-aisle return or cold-aisle supply, helping maintain separation of airflow and improve cooling efficiency.
Designed to support cable access and maintenance above the aisle by providing access panels or removable sections (depending on installation), making serviceability easier.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | ACDC2311 |
| Product Type | Duct Frame Extension - End of Aisle (1200-1800 mm) |
| Compatible Aisle Width | 1200-1800 mm (48-72 in) |
| Colour | Black |
| Width (Frame) | Approx. 9.4 in (≈240 mm) |
| Depth (Max) | Approx. 28.3 in (≈719 mm) |
| Height | Approx. 1.2 in |
| Weight | Approx. 13.69 lb (≈6.21 kg) |
| Environmental Compliance | RoHS, REACH |
