Overview

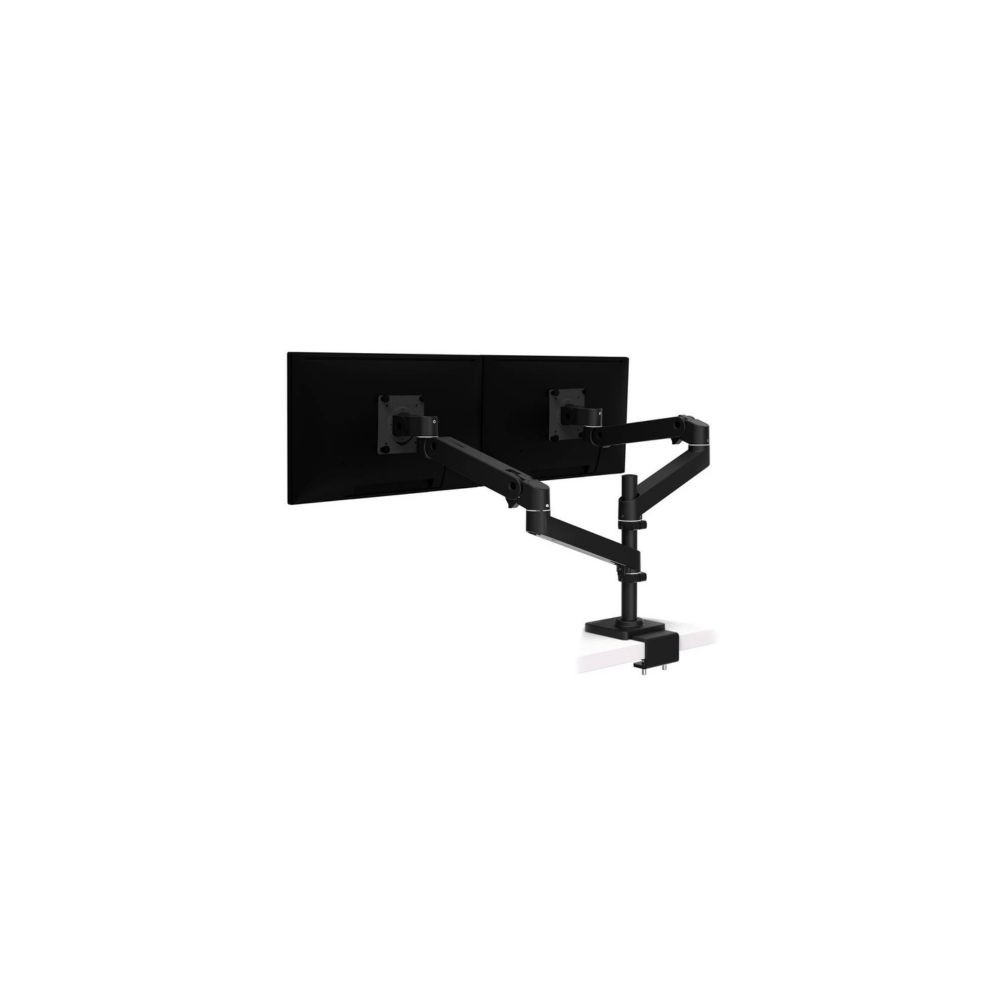

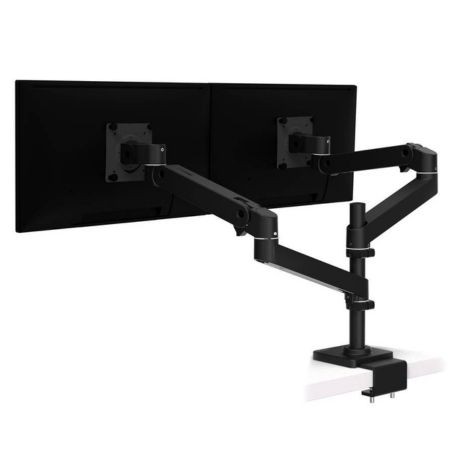

The Ergotron 45-714-292 LX Pro Dual Stacking Arm is a black dual-monitor desk mount configured with a low-profile C-clamp. It supports two displays and allows the monitors to be positioned in a stacked or side-by-side arrangement.
Dual-Display Support
The 45-714-292 supports two displays with an individual monitor capacity of 4–22 lb (1.8–10 kg) and a total capacity of 8–44 lb (3.6–20 kg). The specified maximum display size is 27 inches. For stacked configurations, the maximum outside display height should not exceed 14.7 inches (37 cm).
Adjustment and Movement
Each monitor position provides 13 inches (33 cm) of lift, 85° of total tilt, 360° of pan, and 360° of rotation. The tilt range is 70° backward and 15° forward. The arm system provides up to 25 inches (64 cm) of extension.
Low-Profile C-Clamp
The exact 45-714-292 configuration uses a low-profile C-clamp designed for work surfaces from 0.47 to 1.57 inches (12–40 mm) thick. The C-clamp configuration provides a compact mounting footprint while retaining the adjustment range of the LX Pro arms.
VESA Compatibility
The monitor pivots use VESA FDMI MIS-D mounting with 75 x 75 mm and 100 x 100 mm hole patterns.
Key Features
- Supports two displays up to 27 inches
- 4–22 lb capacity per monitor and 44 lb combined capacity
- 13-inch lift with 85° tilt
- 360° pan and 360° monitor rotation
- Low-profile C-clamp for 12–40 mm desk surfaces
Applications
The 45-714-292 is designed for dual-monitor desktop workstations where displays need flexible positioning without using a conventional full-size desk clamp. The two arms can be configured for stacked displays or adjusted for side-by-side positioning.
DC Supplies Product Note
The low-profile C-clamp is a defining feature of the exact 45-714-292 configuration. Unlike LX Pro versions using the standard desk clamp or grommet mounting, this model is supplied specifically with the low-profile C-clamp.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-714-292 |
| Product Type | LX Pro Dual Stacking Arm, Low-Profile C-Clamp |
| Product Series | LX Pro |
| Color | Black |
| Display Configuration | Dual display |
| Number of Displays | 2 |
| Maximum Display Size | 27 inches |
| Individual Monitor Capacity | 4–22 lb (1.8–10 kg) each |
| Total Weight Capacity | 8–44 lb (3.6–20 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 85° total; 70° backward / 15° forward |
| Pan | 360° |
| Rotation | 360° |
| Maximum Extension | 25 inches (64 cm) |
| VESA Standard | VESA FDMI MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Mounting Type | Low-profile C-clamp |
| Desk Surface Thickness | 0.47–1.57 inches (12–40 mm) |
| Stacked Display Height | Maximum outside display height 14.7 inches (37 cm) |
| Construction | Aluminum |
| Product Weight | 13.1 lb (6.0 kg) |
| Shipping Weight | 20.0 lb (9.1 kg) |
| Shipping Dimensions | 21.6 x 21.3 x 6.7 inches (55 x 54 x 17 cm) |
| Warranty | 10 years |
| GTIN / UPC | 00698833096880 |
Package Contents
- Two LX Pro arms
- Two extensions
- Two monitor pivots
- Low-profile C-clamp
- Standard base
- 12-inch pole
- Two pole collars
- Attachment hardware
Frequently Asked Questions
How many monitors does the 45-714-292 support?
The Ergotron 45-714-292 supports two displays.
What monitor size and weight are supported?
It supports displays up to 27 inches, with each monitor weighing 4–22 lb (1.8–10 kg) and a combined capacity of 8–44 lb (3.6–20 kg).
Can the displays be stacked or positioned side-by-side?
Yes. The dual-arm configuration supports stacked positioning and can also be adjusted for side-by-side display placement.
What type of desk mounting does this model use?
The exact 45-714-292 uses a low-profile C-clamp for work surfaces from 0.47 to 1.57 inches (12–40 mm) thick.
Which VESA patterns are supported?
The monitor pivots support VESA 75 x 75 mm and 100 x 100 mm mounting patterns.
Can a third or fourth monitor be added?
No. Ergotron specifically states that a third or fourth monitor should not be added to this C-clamp configuration because expansion requires a large base that is unavailable with the C-clamp.
