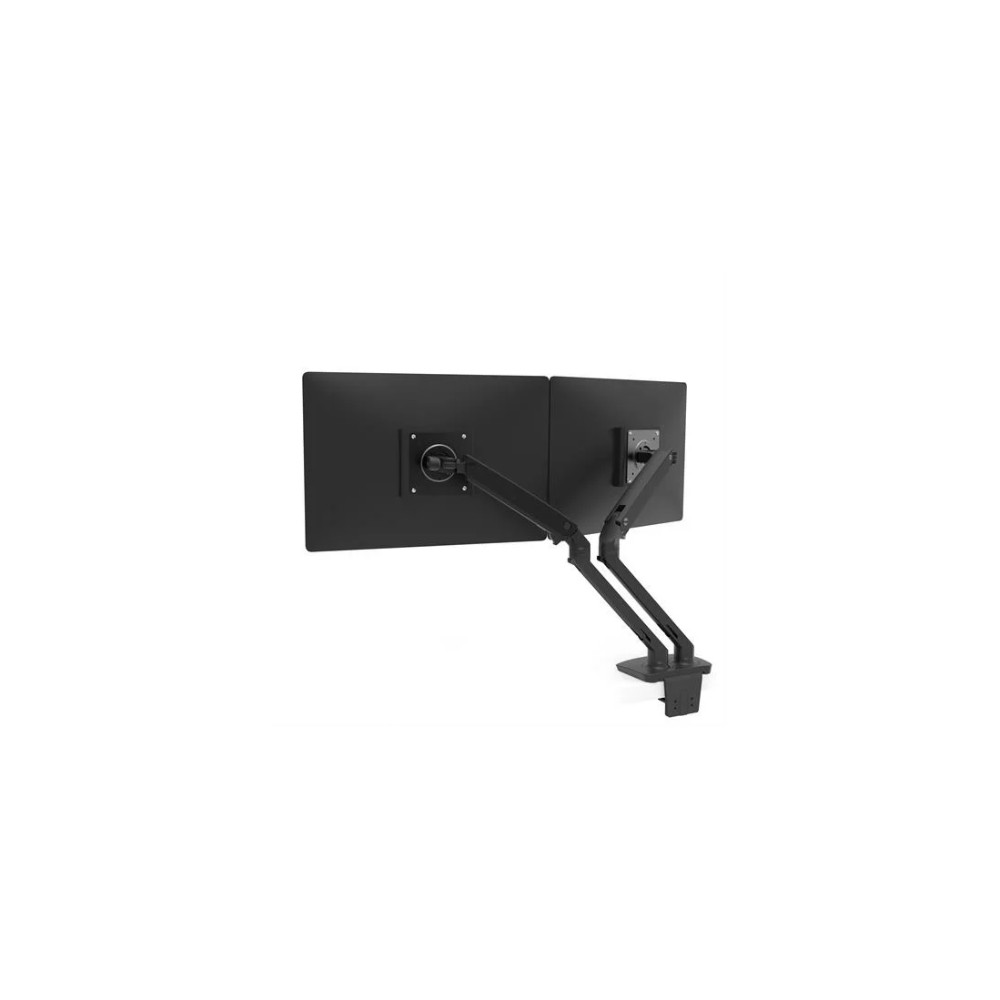

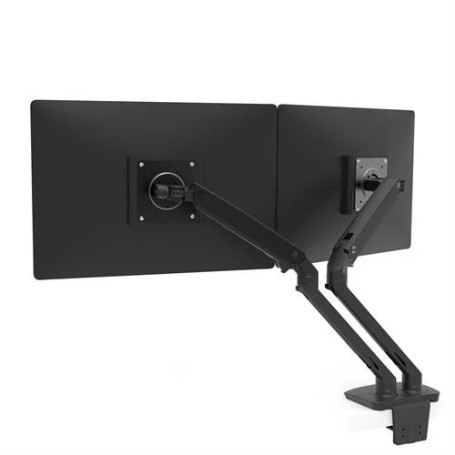

Ergotron 45-496-224 – MXV Desk Dual Monitor Arm, Matte Black
Overview
The Ergotron 45-496-224 MXV Desk Dual Monitor Arm is a matte black dual-monitor desk mounting solution designed for side-by-side display configurations. Its V-shaped arm design provides adjustable positioning while maintaining a compact desktop footprint.
Technical Information
The arm supports two displays with an individual monitor weight range of 7–20 lb and a maximum combined display weight of 40 lb. It provides 13 inches of vertical adjustment, 180° tilt, 360° pan and 360° rotation. Ergotron specifies VESA MIS-D mounting with 75 × 75 mm and 100 × 100 mm patterns.
Compatibility
The 45-496-224 uses a two-piece desk clamp for desktop surfaces from 0.47 to 1.25 inches (12–32 mm) thick. An optional 98-111 Grommet Mount can be used for through-desk mounting. Displays up to 24 inches are the specified typical size; Ergotron notes that displays up to 27 inches can be accommodated with reduced adjustment capability.
Key Features
- Supports two monitors with 7–20 lb capacity per display.
- Provides 13 inches of vertical height adjustment.
- Offers 180° tilt with 360° pan and 360° display rotation.
- Supports VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
- Includes a two-piece desk clamp for 12–32 mm thick desktop surfaces.
Applications
The MXV dual monitor arm is suited to professional workstations, engineering desks, trading and control-room environments, office workspaces and other applications requiring two independently adjustable displays. The compact arm design is suitable where desktop space is limited.
DC Supplies Product Note
DC Supplies recommends verifying the individual monitor weight, display depth, VESA pattern and desktop thickness before deployment. The stated 40 lb capacity is the maximum combined display weight, while each monitor must remain within the specified 7–20 lb individual range. Monitor depth greater than 3.5 inches may reduce the available capacity.
Specifications
| Brand | Ergotron |
|---|
| MPN | 45-496-224 |
|---|
| Product Type | Dual Monitor Desk Arm |
|---|
| Series | MXV |
|---|
| Finish | Matte Black |
|---|
| Monitor Capacity | 2 displays |
|---|
| Typical Display Size | Up to 24 in |
|---|
| Individual Monitor Capacity | 7–20 lb (3.2–9.1 kg) |
|---|
| Maximum Combined Capacity | 40 lb (18.1 kg) |
|---|
| Vertical Adjustment | 13 in (33 cm) |
|---|
| Tilt Range | 180° |
|---|
| Pan Range | 360° |
|---|
| Rotation | 360° |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Desk Clamp Thickness | 0.47–1.25 in (12–32 mm) |
|---|
| Extension Range | 17.8 in (45 cm); maximum reach 22.5 in (57 cm) |
|---|
| Product Weight | 10.9 lb |
|---|
| Shipping Weight | 17.3 lb |
|---|
| Shipping Dimensions | 32.8 × 12.6 × 7.6 in (83 × 32 × 19 cm) |
|---|
| Mounting | Desk Clamp; optional 98-111 Grommet Mount |
|---|
| Warranty | 10 years |
|---|
FAQs
How many monitors does the Ergotron 45-496-224 support?
The 45-496-224 is designed to support two monitors.
What monitor weight can the 45-496-224 support?
Each monitor should weigh 7–20 lb, with a maximum combined display weight of 40 lb.
What monitor size is supported?
The typical specified display size is up to 24 inches. Ergotron states that displays up to 27 inches can be accommodated with reduced adjustment capability.
What VESA patterns are supported?
The arm supports VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
What type of desk mounting is included?
The product includes a two-piece desk clamp designed for desktop surfaces from 0.47 to 1.25 inches thick. An optional 98-111 Grommet Mount is available for through-desk installation.
What is the vertical adjustment range?
The MXV Desk Dual Monitor Arm provides 13 inches (33 cm) of vertical adjustment.
What is the warranty period?
Ergotron provides a 10-year warranty for the 45-496-224.
