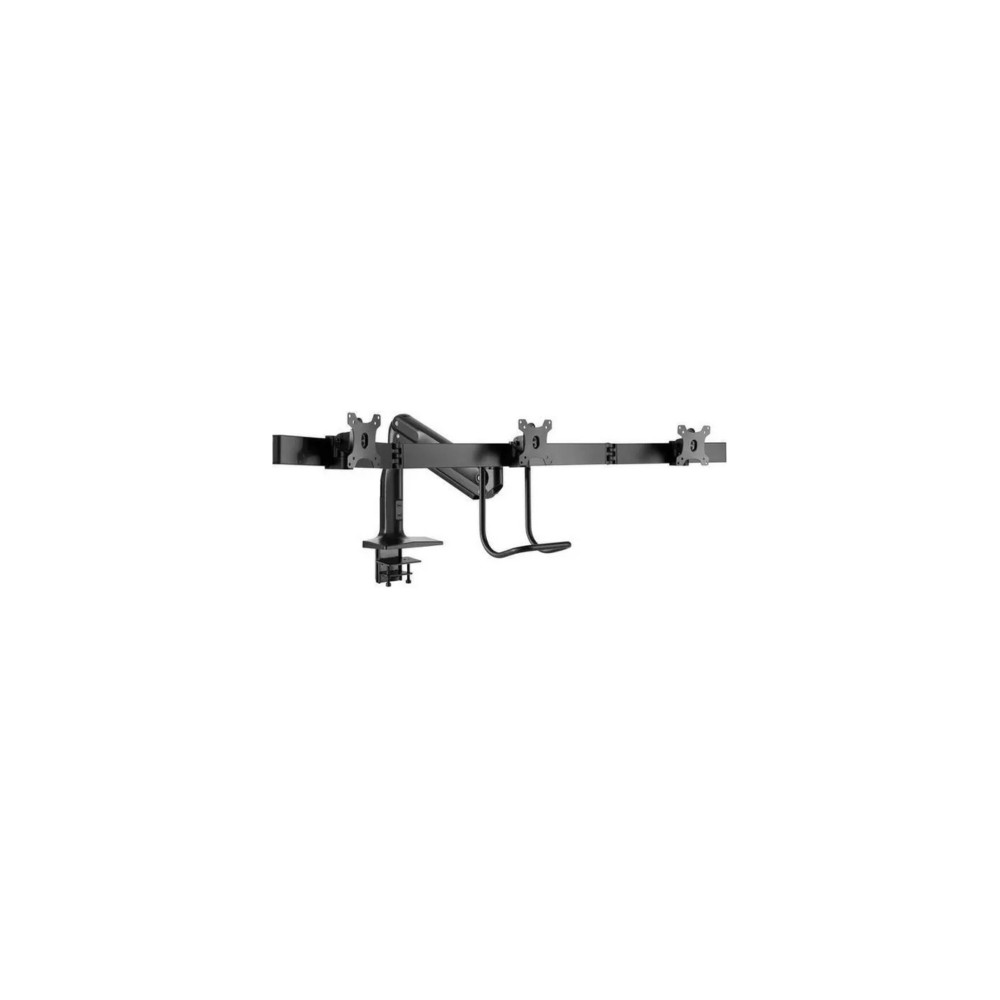

Eaton Tripp Lite DMPDT1732AM Safe-IT Triple-Display Desk Mount

Overview :

The Eaton Tripp Lite DMPDT1732AM is a commercial-grade, multi-monitor desktop mounting system engineered to support three independent displays within high-density workstations, control rooms, and financial trading floors. Corporate IT infrastructure departments and procurement teams deploy this full-motion mount to reclaim valuable desk real estate while creating seamless multi-panel array configurations. It solves the critical deployment challenge of stabilizing three large-format monitors simultaneously while maintaining precise independent ergonomic adjustments across all three screens.

Constructed with a heavy-duty aluminum and steel frame, the hardware accommodates three flat- or curved-screen displays from 17 to 32 inches, with an individual load capacity of up to 14.3 pounds per arm. The system features a premium internal gas spring mechanism that counterbalances monitor weight for effortless, toolless height adjustments. For ergonomic optimization, the articulation arms deliver a tilt range of -22° to +45°, a swivel range of -32° to +32°, and a full 90° display rotation for portrait or landscape orientations. The base integrating column includes two pass-through USB 3.2 Gen 1 ports handling data synchronization up to 5 Gbps. To maintain sanitation standards in shared operational spaces, it includes a specialized wrap-around antimicrobial tape layer for the adjustment handle to inhibit bacterial growth.

This articulating assembly features a dual-purpose mounting footprint, packaging both an adjustable heavy-duty C-clamp surface edge bracket and a permanent through-desk grommet adaptation kit. It features native VESA alignment patterns matching 75 x 75 mm and 100 x 100 mm mounting interfaces. Do not deploy this mounting system with hardware displays exceeding 14.3 pounds per channel or with chassis dimensions stretching outside the specified 32-inch diagonal limitation. It is strictly limited to indoor desktop environments and should not be attached to glass-topped desks or non-rigid substrate surfaces.

Key Features :

• Supports three 17-to-32-inch displays up to 14.3 lbs per arm

• Premium gas spring arms enable smooth, independent height calibration

• Dual integrated USB 3.2 Gen 1 base ports stream data up to 5 Gbps

• Standardized 75x75 and 100x100 VESA plates streamline panel installation

• Safe-IT antimicrobial handle protection limits cleanroom vector growth

Specifications :
