Overvie

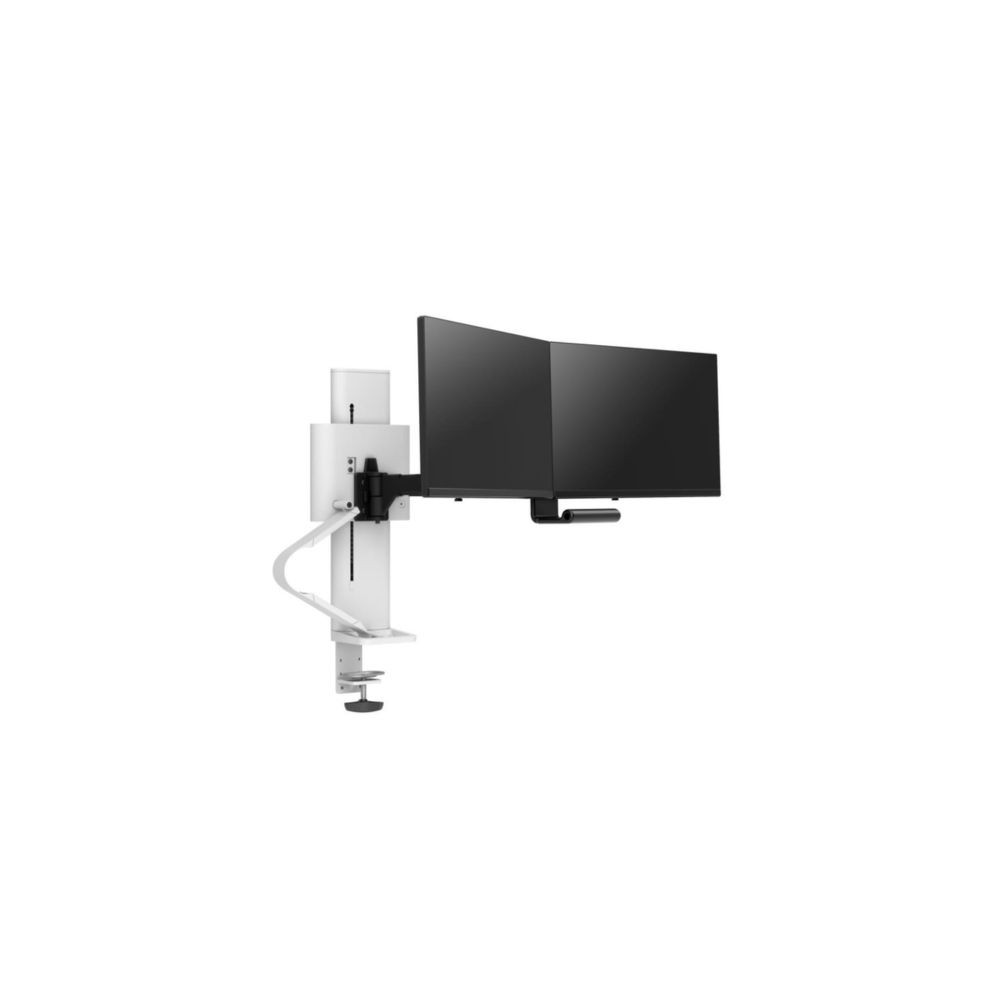

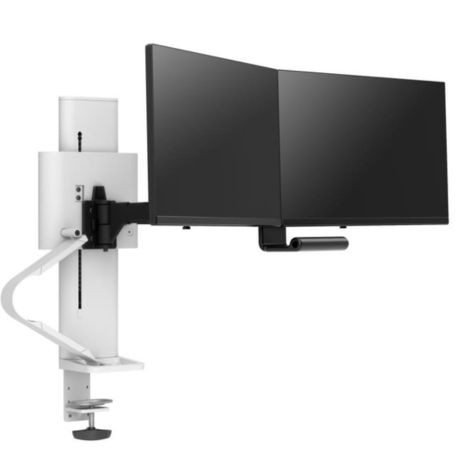

The Ergotron 45-631-216 TRACE Dual Monitor Mount is a white desktop monitor mount designed to support two displays in a flexible side-by-side configuration. Its TRACE platform uses Constant Force technology and an articulated structure to allow the monitors to be repositioned for individual work and collaborative viewing.
Dual Monitor Support
The mount supports two displays up to 27 inches each, with a combined capacity of 8.1–21.5 lb (3.7–9.8 kg). Individual monitor weight should remain within approximately 4.05–10.75 lb (1.8–4.9 kg). The maximum outside display width is approximately 26 inches (66 cm) when using displays around 2 inches (5 cm) thick.
Adjustment and Movement
The TRACE dual mount provides 11 inches (28 cm) of height adjustment. The monitor pivots provide up to 35° of tilt, while the arm structure provides 240° of pan and the monitors can rotate 360° for different viewing orientations. The extension and retraction range is up to 15 inches (38 cm).
VESA Compatibility
Each monitor attachment supports VESA MIS-D mounting patterns with 75 x 75 mm and 100 x 100 mm hole spacing. Both displays must remain within the mount's specified total and individual weight limits.
Desk Mounting and Cable Management
The standard two-piece desk clamp accommodates compatible desk surfaces up to 2.55 inches (65 mm) thick. Integrated cable management helps route monitor cables through the mounting structure, while the compact base keeps the mounting hardware concentrated around the desk mounting point.
Key Features
- White TRACE dual-monitor desktop mount
- Supports two displays up to 27 inches each
- 8.1–21.5 lb (3.7–9.8 kg) total monitor capacity
- 11-inch (28 cm) height adjustment with 35° tilt
- 240° pan, 360° monitor rotation, and up to 15 inches of extension/retraction
Applications
The TRACE Dual Monitor Mount is suited to office desks, professional workstations, shared work areas, and other two-display setups requiring adjustable monitor positioning. Its dual-monitor arrangement can support side-by-side displays while allowing the screens to be repositioned as working requirements change.
DC Supplies Product Note
Check both monitors individually before installation. The combined capacity is 8.1–21.5 lb, but each display also needs to remain within its individual supported weight range and use a compatible VESA pattern.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-631-216 |
| Product Type | Dual Monitor Desk Mount |
| Series | TRACE |
| Configuration | Dual Monitor |
| Color | White |
| Number of Displays | 2 |
| Typical Display Size | Up to 27 inches per monitor |
| Total Monitor Capacity | 8.1–21.5 lb (3.7–9.8 kg) |
| Individual Monitor Capacity | 4.05–10.75 lb (1.8–4.9 kg) |
| Lift | 11 inches (28 cm) |
| Tilt | 35° |
| Pan | 240° |
| Monitor Rotation | 360° |
| Extension / Retraction | Up to 15 inches (38 cm) |
| Maximum Display Outside Width | 26 inches (66 cm) |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Desk Clamp Thickness | Up to 2.55 inches (65 mm) |
| Mounting Type | Two-piece desk clamp |
| Product Weight | 19.5 lb (8.9 kg) |
| Warranty | 15 years |
| GTIN / UPC | 00698833083712 |
Frequently Asked Questions
How many monitors does the 45-631-216 support?
The TRACE 45-631-216 is designed for two displays mounted in a dual-monitor configuration.
What monitor size is supported?
The mount supports displays up to 27 inches per monitor. The actual allowable display width also depends on monitor thickness and the combined mounting arrangement.
What is the total weight capacity?
The total supported monitor weight is 8.1–21.5 lb (3.7–9.8 kg), with an individual monitor range of approximately 4.05–10.75 lb (1.8–4.9 kg).
Which VESA patterns are supported?
The mount supports VESA MIS-D patterns using 75 x 75 mm and 100 x 100 mm mounting holes.
How thick can the desk be?
The standard two-piece desk clamp accommodates compatible desk surfaces up to 2.55 inches (65 mm) thick.
Does the 45-631-216 include cable management?
Yes. Integrated cable management is part of the TRACE dual-monitor mount design.
