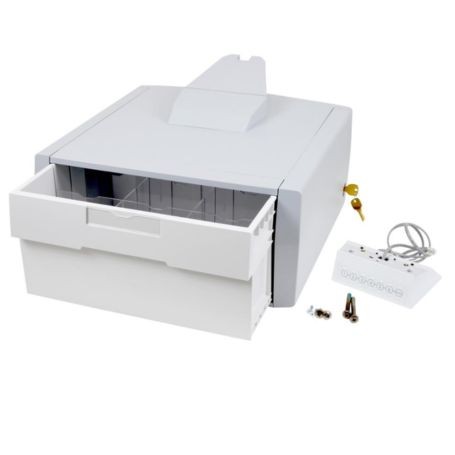

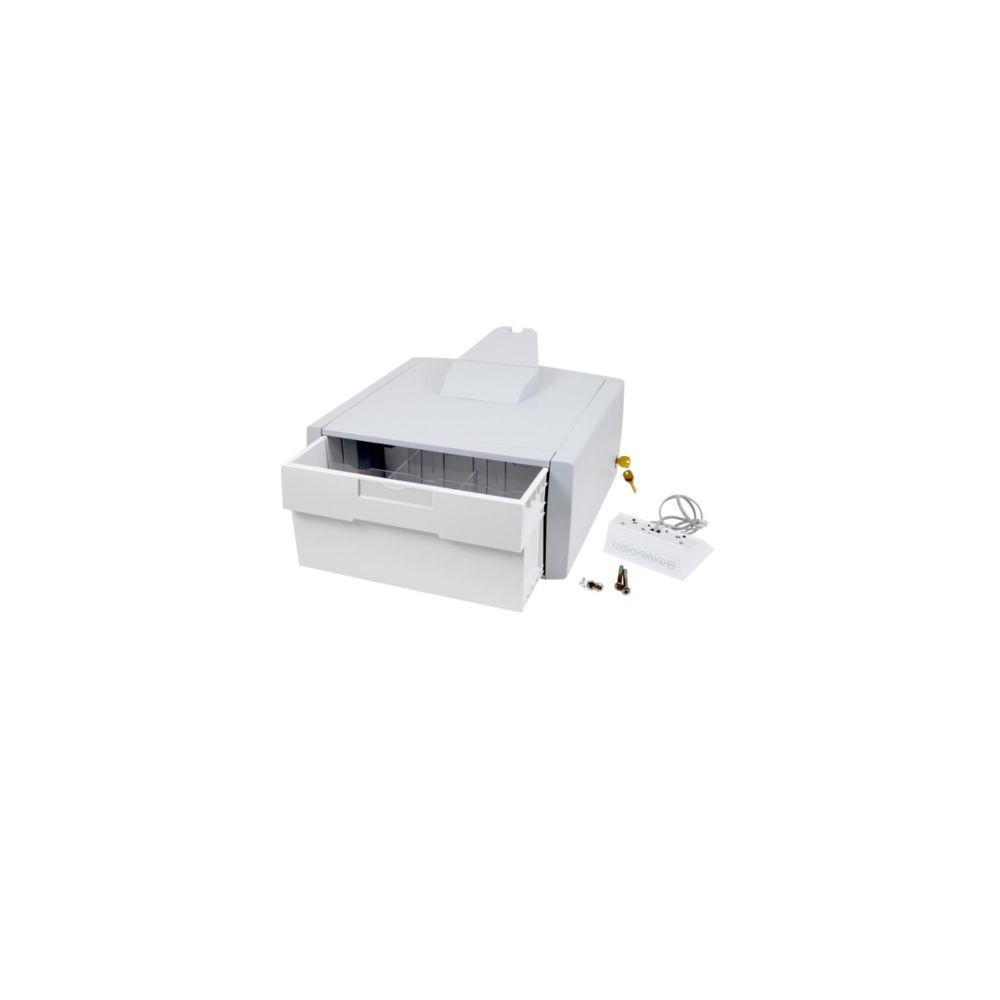

The Ergotron 97-970 StyleView SV44 Primary Single Tall Drawer is a storage accessory designed for compatible Ergotron powered medical workstation carts. It provides a dedicated space for organising essential supplies and small items while integrating with the cart's electronic drawer-locking system.
The drawer features a tall, single-compartment design with removable dividers, allowing the interior to be arranged for different storage needs. Its grey and white finish complements compatible StyleView cart configurations, making it a practical addition to healthcare and clinical work environments.
Key Features
- Spacious single-drawer design: Provides a large storage area with internal dimensions of approximately 6 × 12 × 10.5 inches (15.2 × 30.5 × 26.7 cm).
- Configurable organisation: Includes dividers that allow the interior to be arranged into up to nine compartments.
- Integrated locking system: Works with the compatible cart's electronic auto-locking system and includes key-lock access.
- Primary drawer controller: Includes the controller board, keypad and cable required for the drawer system.
- Removable drawer: Can be removed for restocking and cleaning.
Designed for StyleView Medical Carts
The 97-970 is intended to upgrade compatible powered StyleView LCD carts that do not already have the required drawer configuration. Its integrated locking components connect the drawer to the cart's electronic access-control system.
As the primary drawer, this model contains the controller components needed for the drawer system. It must be installed as the first drawer in a compatible configuration. Confirm the exact cart model before ordering to ensure that the drawer and keypad configuration match.
Flexible Storage and Organisation
The tall drawer provides room for small clinical supplies and other appropriate workstation essentials. Included dividers help separate stored items into individual compartments, making the available space easier to organise.
The drawer's maximum load capacity is 2 lb (0.9 kg). It should be used only for suitable lightweight items within this limit. The drawer can be removed when necessary to simplify restocking and cleaning.
Compatibility and Installation
The Ergotron 97-970 is designed for selected StyleView SV42/SV44-series LCD carts. It is not interchangeable with the primary drawer configuration designed for laptop carts, which may use a different keypad arrangement.
Before purchasing, verify the cart's model number and existing drawer configuration. Follow Ergotron's installation documentation to fit the primary drawer and connect its controller components correctly.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 97-970 |
|---|
| Product Type | Primary single tall storage drawer for LCD carts |
|---|
| Product Family | StyleView SV44 |
|---|
| Colour | Grey and white |
|---|
| Drawer Configuration | Single tall drawer |
|---|
| Internal Height | 6 inches (15.2 cm) |
|---|
| Internal Width | 12 inches (30.5 cm) |
|---|
| Internal Depth | 10.5 inches (26.7 cm) |
|---|
| Maximum Load Capacity | 2 lb (0.9 kg) |
|---|
| Storage Compartments | Configurable into up to 9 compartments using included dividers |
|---|
| Locking | Electronic auto-locking integration and key lock |
|---|
| Drawer Removal | Removable for restocking and cleaning |
|---|
| Included Components | Drawer assembly, tall drawer, dividers, controller board, keypad and cable |
|---|
| Compatibility | Selected Ergotron StyleView SV42/SV44-series LCD carts |
|---|
| Installation Position | Primary drawer; must be installed first in the drawer system |
|---|
| Mechanical Warranty | 5 years, subject to applicable warranty terms |
|---|
| Electrical Warranty | 1 year, subject to applicable warranty terms |
|---|
DC Supplies Product Note
The Ergotron 97-970 is a primary drawer assembly, not a standalone storage cabinet. Its compatibility depends on the exact StyleView cart model and drawer system. Verify the cart model before ordering, and note that the drawer has a maximum load capacity of 2 lb (0.9 kg).
Frequently Asked Questions
What is the Ergotron 97-970 used for?
It adds a tall, lockable storage drawer to compatible powered Ergotron StyleView LCD carts.
Which carts are compatible with this drawer?
It is designed for selected SV42/SV44-series LCD carts. Check the cart's exact model number and drawer configuration before ordering.
Why is it called a primary drawer?
The drawer contains the controller board and keypad for the electronic drawer-locking system. It must be installed first in a compatible drawer configuration.
Can the interior be divided into smaller sections?
Yes. The included dividers allow the drawer interior to be configured into up to nine compartments.
What is the maximum load capacity?
The maximum load is 2 lb (0.9 kg). Do not exceed this limit.
Does the drawer have a locking mechanism?
Yes. It includes a key lock and components for integration with the compatible cart's electronic auto-locking system.
Is this version compatible with laptop carts?
This version is intended for LCD carts. Ergotron identifies different primary-drawer configurations for LCD and laptop carts, so confirm compatibility before purchase.
