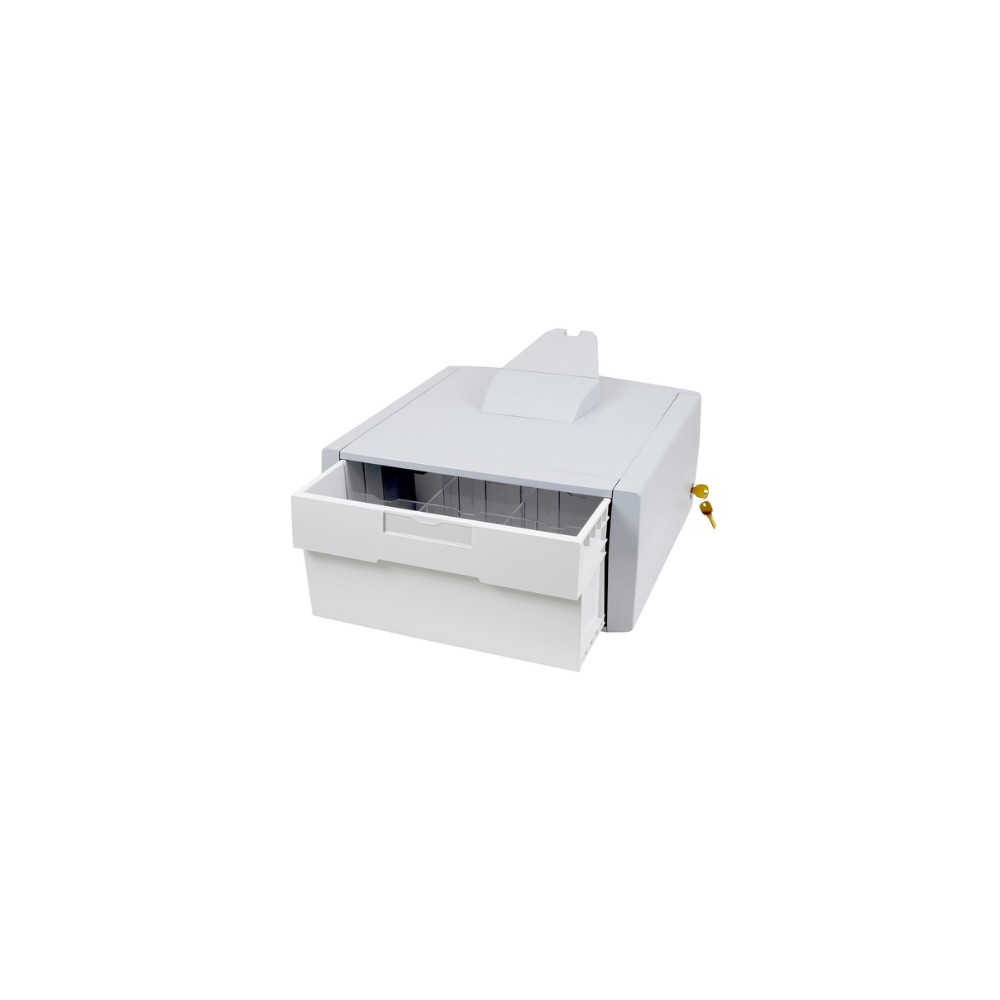

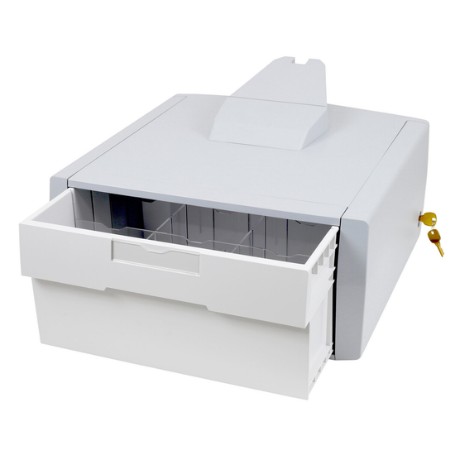

Ergotron 97-989 – SV Primary Storage Drawer, Single Tall
Overview
The Ergotron 97-989 SV Primary Storage Drawer, Single Tall adds a large storage compartment to compatible StyleView carts. It is designed as the primary drawer assembly for a cart that does not already have a drawer configuration. The single tall format provides one large storage area with configurable dividers. Ergotron identifies 97-989 as the SV Primary Storage Drawer, Single Tall.
Technical Information
The drawer provides an internal storage area measuring 5 inches high × 12 inches wide × 10.5 inches deep. Included dividers allow the interior to be configured into up to nine compartments. The drawer has key-lock access and is manually operated; it does not interface with a cart's electrical or automatic drawer-locking system.
Compatibility
The 97-989 is designed for compatible Ergotron StyleView cart configurations and functions as the primary drawer. The primary drawer must be the first drawer attached to the cart. Published compatibility includes StyleView SV40, SV41, SV42, SV43 and SV44-related configurations. Exact compatibility should be checked against the specific cart model before installation.
Key Features
- Single tall primary storage drawer for compatible StyleView carts.
- Large 5 × 12 × 10.5-inch internal storage compartment.
- Supports up to 2 lb (1 kg) of stored contents.
- Key-lock access with manual drawer operation.
- Includes dividers for configuring up to nine compartments.
Applications
The 97-989 is intended for mobile healthcare and clinical workstation environments requiring additional secure storage on a StyleView cart. The tall single-drawer configuration provides organized space for supplies, small equipment and other task-related items while maintaining controlled access.
DC Supplies Product Note
This listing is for the exact Ergotron 97-989 SV Primary Storage Drawer, Single Tall. It is a cart accessory rather than a complete StyleView cart. Because it is the primary drawer, it must be the first drawer installed on the compatible cart. The drawer is manually operated and does not integrate with electrical or auto-locking drawer systems.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 97-989 |
|---|
| Product Type | Primary Storage Drawer |
|---|
| Product Name | SV Primary Storage Drawer, Single Tall |
|---|
| Drawer Configuration | Single tall drawer |
|---|
| Color | Grey / White |
|---|
| Maximum Load Capacity | 2 lb (1 kg) |
|---|
| Internal Height | 5 in (127 mm) |
|---|
| Internal Width | 12 in (305 mm) |
|---|
| Internal Depth | 10.5 in (267 mm) |
|---|
| Compartment Configuration | Up to 9 compartments with supplied dividers |
|---|
| Access | Key-lock |
|---|
| Operation | Manual |
|---|
| Electrical / Auto-Lock Integration | Not supported |
|---|
| Installation Requirement | Primary drawer must be first drawer attached to cart |
|---|
| Shipping Dimensions | 18 × 18 × 12.5 in (457 × 457 × 305 mm) |
|---|
| Shipping Weight | 13 lb (5.9 kg) |
|---|
| Warranty | 5 years |
|---|
The specifications above are based on exact-model documentation and supporting distributor data.
FAQs
What is the Ergotron 97-989?
The 97-989 is the Ergotron SV Primary Storage Drawer, Single Tall, designed to add one large storage compartment to compatible StyleView carts.
How much weight can the 97-989 hold?
The maximum published load capacity is 2 lb (1 kg).
What are the internal drawer dimensions?
The internal storage area measures 5 inches high × 12 inches wide × 10.5 inches deep.
How many compartments can the drawer provide?
The included dividers can configure the drawer interior into up to nine compartments.
Does the 97-989 use an electronic lock?
No. The drawer uses key-lock access and is manually operated. It does not interface with the cart's electrical or automatic drawer-locking system.
What is the installation requirement?
The 97-989 is the primary drawer and must be the first drawer attached to the compatible cart.
Can the drawer be removed?
Yes. The drawer compartment can be removed for stocking and cleaning.
What warranty does Ergotron provide?
The 97-989 carries a five-year warranty.
