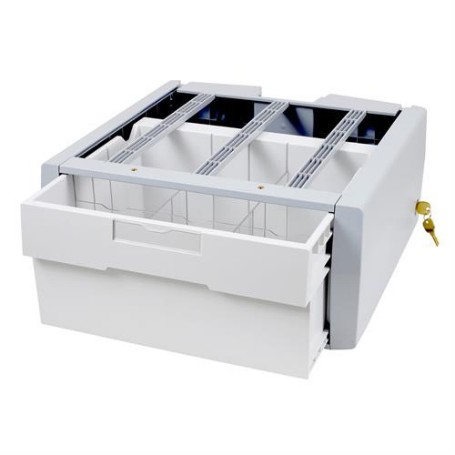

Ergotron 97-992 – SV Supplemental Storage Drawer, Single Tall
Overview
The Ergotron 97-992 SV Supplemental Storage Drawer, Single Tall adds a large supplemental storage compartment to compatible StyleView carts. The drawer mounts beneath the cart's primary or another supplemental drawer and provides additional organized storage without replacing the primary drawer. Current Ergotron documentation identifies the 97-992 specifically as the Single Tall version.
Technical Information
The drawer provides a 6-inch-high internal storage compartment measuring 12 inches wide by 10.5 inches deep. Supplied dividers allow the interior to be configured into up to nine compartments. The drawer is manually operated and uses key-lock access; it does not interface with the cart's electrical or automatic drawer-locking system.
Compatibility
The 97-992 is designed as a supplemental drawer for compatible Ergotron StyleView carts. It attaches underneath the primary or another supplemental drawer. Published compatibility includes selected StyleView SV41 and SV42 configurations. A Drawer Travel-Stop accessory is recommended when configuring carts with multiple drawer rows, including two or more tall drawer rows.
Key Features
- Single tall supplemental storage drawer for compatible StyleView carts.
- 6 × 12 × 10.5-inch internal storage compartment.
- Supports up to 2 lb (1 kg) of stored contents.
- Key-lock access with manual drawer operation.
- Removable drawer with supplied dividers for up to nine compartments.
Applications
The 97-992 is intended for mobile healthcare and clinical workstation environments where additional secure storage is required. Its tall single-drawer configuration provides space for supplies, small equipment and other items that need to remain organized and accessible on a StyleView cart.
DC Supplies Product Note
This listing is for the exact Ergotron 97-992 SV Supplemental Storage Drawer, Single Tall. It is a supplemental cart accessory rather than a complete StyleView cart or primary drawer. The drawer attaches below the primary or another supplemental drawer and is manually operated; it does not provide electronic or automatic drawer locking.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 97-992 |
|---|
| Product Type | Supplemental Storage Drawer |
|---|
| Product Name | SV Supplemental Storage Drawer, Single Tall |
|---|
| Drawer Configuration | Single tall drawer |
|---|
| Color | Gray / White |
|---|
| Maximum Load Capacity | 2 lb (1 kg) |
|---|
| Internal Height | 6 in (150 mm) |
|---|
| Internal Width | 12 in (305 mm) |
|---|
| Internal Depth | 10.5 in (267 mm) |
|---|
| Compartment Configuration | Up to 9 compartments with supplied dividers |
|---|
| Lock Type | Key lock |
|---|
| Operation | Manual |
|---|
| Mounting | Under primary or supplemental drawer |
|---|
| Electrical / Auto-Lock Interface | Not supported |
|---|
| Shipping Dimensions | 18 × 18 × 9.5 in (457 × 457 × 240 mm) |
|---|
| Shipping Weight | 10 lb (4.5 kg) |
|---|
| Warranty | 5 years |
|---|
The specifications above are based on exact-model manufacturer documentation and supporting distributor data.
FAQs
What is the Ergotron 97-992?
The 97-992 is the Ergotron SV Supplemental Storage Drawer, Single Tall, designed to add one large storage compartment to compatible StyleView carts.
How much weight can the 97-992 hold?
The maximum published load capacity is 2 lb (1 kg).
What are the internal drawer dimensions?
The internal compartment measures 6 inches high × 12 inches wide × 10.5 inches deep.
How many compartments can the drawer provide?
The supplied dividers can configure the interior into up to nine compartments.
Does the 97-992 use an electronic lock?
No. It uses key-lock access and is manually operated. It does not interface with a cart's electrical or automatic drawer-locking system.
Where does the 97-992 mount?
The drawer attaches underneath the cart's primary drawer or another compatible supplemental drawer.
Is the drawer removable?
Yes. The drawer compartment can be removed for stocking and cleaning.
Is a travel stop required?
Ergotron-related documentation recommends a separately ordered Drawer Travel-Stop when configuring multiple drawer rows, including two or more tall drawer rows.
What warranty does Ergotron provide?
The 97-992 carries a five-year warranty.
