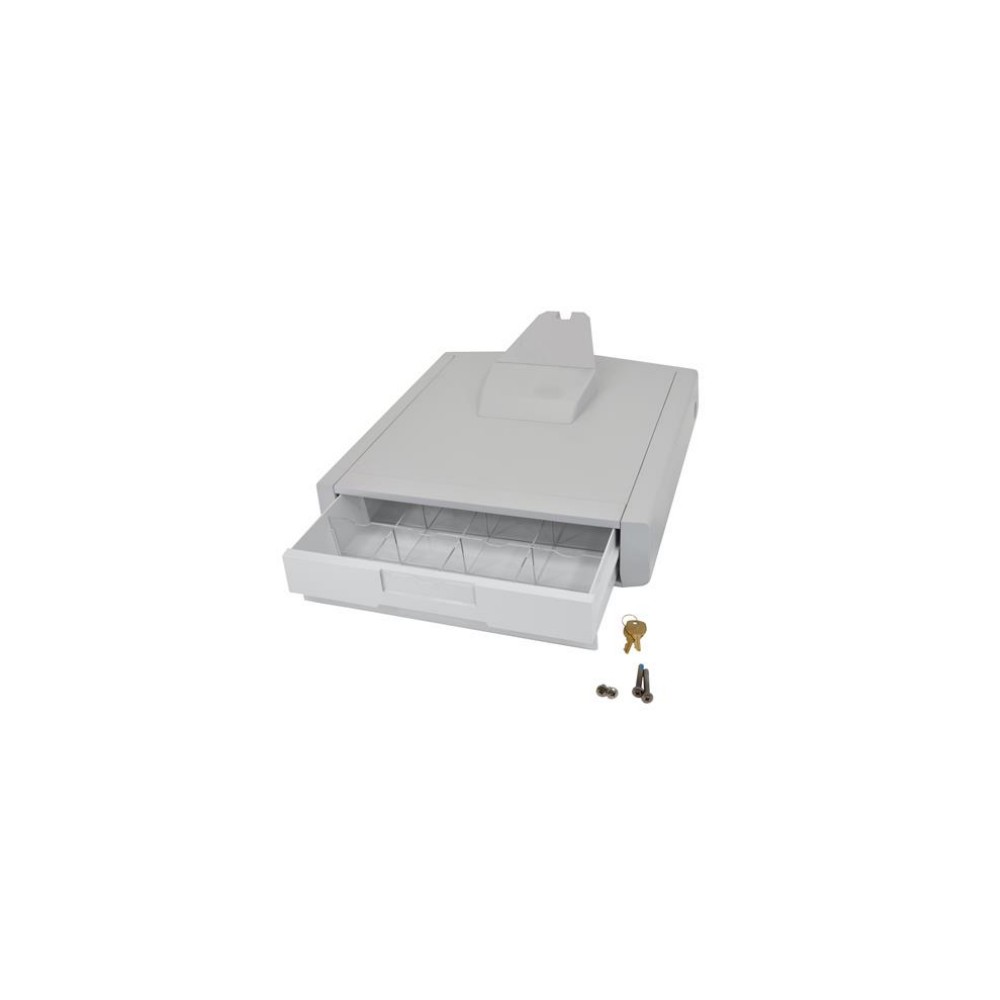

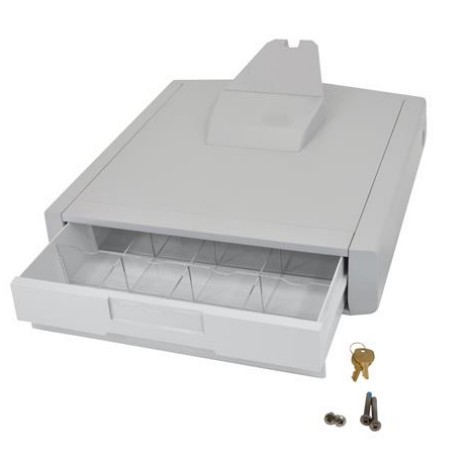

Ergotron 97-863 – SV Primary Storage Drawer, Single
Overview
The Ergotron 97-863 SV Primary Storage Drawer, Single adds one large storage compartment to compatible StyleView carts. It is designed as a primary drawer assembly for carts that do not already have a drawer configuration. The drawer is manually operated and uses key-lock access rather than an electrical or automatic locking system.
Technical Information
The drawer provides an internal storage area measuring 2.5 inches high × 12 inches wide × 10.5 inches deep, with supplied dividers that allow the compartment to be configured into up to 16 sections. The drawer compartment can be removed for stocking and cleaning.
Compatibility
The 97-863 is designed for compatible Ergotron StyleView carts. Published compatibility includes StyleView SV41 and SV42 cart configurations, including models such as SV41-6100-0, SV41-6200-0, SV41-6300-0 and selected SV42 configurations. Exact compatibility should be checked against the specific cart configuration before installation.
Key Features
- Single large primary storage drawer for compatible StyleView carts.
- Manual operation with secure key-lock access.
- Internal storage dimensions of 2.5 × 12 × 10.5 inches.
- Includes dividers for configuring up to 16 compartments.
- Primary drawer must be installed as the first drawer attached to the cart.
Applications
The Ergotron 97-863 is intended for organized storage on StyleView mobile carts used in healthcare and other mobile workstation environments. It provides a dedicated lockable compartment for supplies and equipment that need to remain secured while the cart is in use.
DC Supplies Product Note
This listing is for the exact Ergotron 97-863 SV Primary Storage Drawer, Single. It is a cart accessory and does not include the StyleView cart itself. The drawer is manually operated and does not interface with a cart's electrical or auto-locking drawer system.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 97-863 |
|---|
| Product Type | Primary Storage Drawer |
|---|
| Model | SV Primary Storage Drawer, Single |
|---|
| Color | Grey/White |
|---|
| Storage Configuration | Single large drawer |
|---|
| Internal Height | 2.5 in (63.5 mm) |
|---|
| Internal Width | 12 in (305 mm) |
|---|
| Internal Depth | 10.5 in (267 mm) |
|---|
| Maximum Load Capacity | 2 lb (1 kg) |
|---|
| Compartments | Up to 16 with supplied dividers |
|---|
| Access | Key-lock |
|---|
| Operation | Manual |
|---|
| Electrical/Auto-Lock Interface | Not supported |
|---|
| Shipping Dimensions | 18 × 18 × 9.5 in |
|---|
| Shipping Weight | 12 lb (5.4 kg) |
|---|
| Warranty | 5 years |
|---|
Specifications above are based on exact-model Ergotron documentation and supporting distributor data.
FAQs
What is the Ergotron 97-863?
The 97-863 is an SV Primary Storage Drawer, Single designed for compatible Ergotron StyleView carts.
How much can the 97-863 drawer hold?
The published maximum load capacity is 2 lb (1 kg).
Does the 97-863 use an electronic lock?
No. The 97-863 is manually operated and uses key-lock access. It does not interface with the cart's electrical or auto-locking drawer system.
How large is the storage compartment?
The internal dimensions are 2.5 inches high × 12 inches wide × 10.5 inches deep.
How many compartments can the drawer provide?
The supplied dividers can configure the drawer into up to 16 compartments.
Can the drawer be removed for cleaning?
Yes. The drawer compartment is designed to be easily removed for stocking and cleaning.
What must be installed first?
The 97-863 is the primary drawer and must be the first drawer attached to the compatible cart.
What warranty does Ergotron provide?
The 97-863 carries a five-year warranty.
