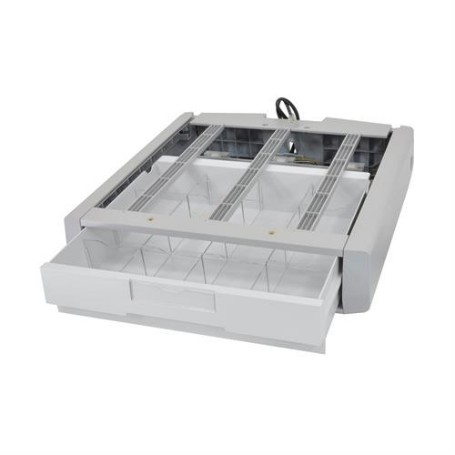

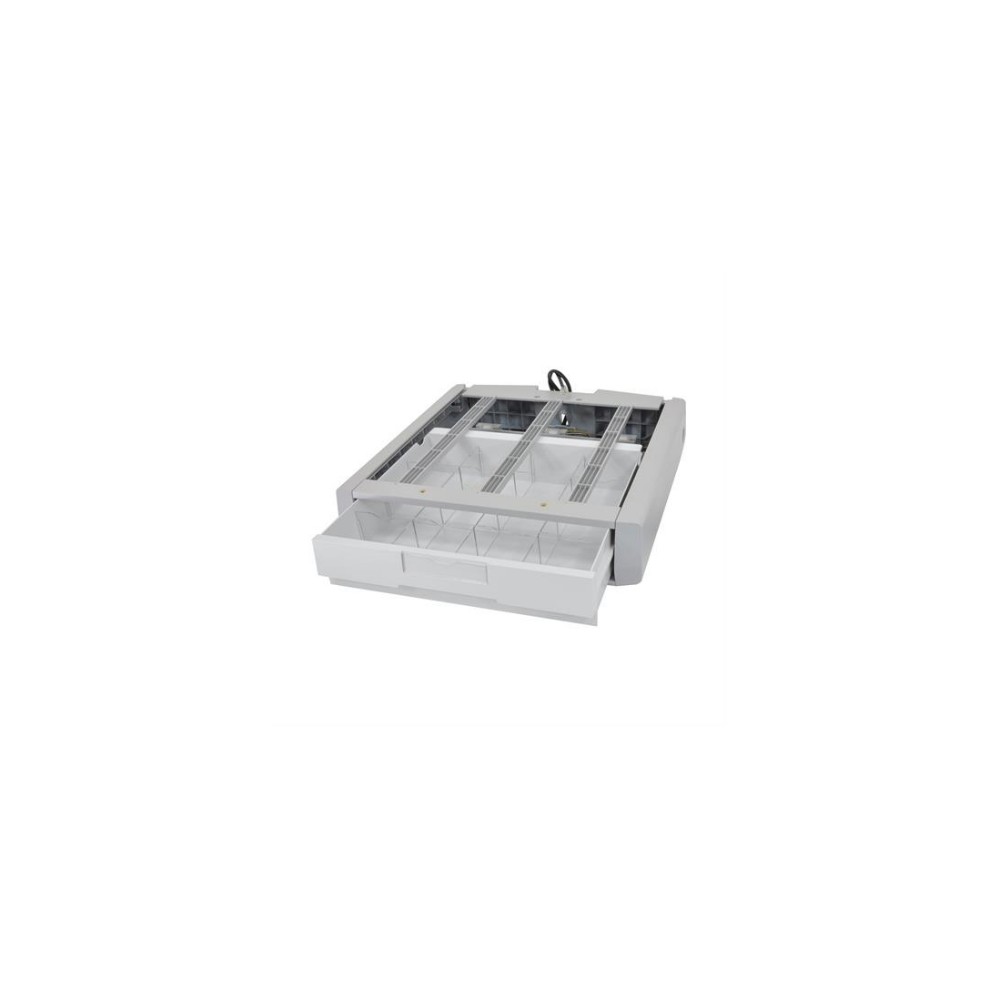

Ergotron 97-851 – SV43/44 Supplemental Single Drawer
Overview
The Ergotron 97-851 SV43/44 Supplemental Single Drawer adds a large secure storage compartment to compatible StyleView SV43 and SV44 medical carts. The drawer attaches beneath the cart's primary drawer and works with the cart's auto-locking drawer system.
Technical Information
The supplemental drawer provides a 1.98 lb (0.9 kg) maximum load capacity and has an internal storage area measuring 2.5 inches high × 12 inches wide × 10.5 inches deep. Included dividers allow the interior to be configured into up to 16 compartments. The drawer can be removed for stocking and cleaning and provides both electronic and key-lock access.
Compatibility
The 97-851 is designed specifically for Ergotron StyleView SV43 and SV44 series carts. The primary drawer must be installed first because it contains the drawer controller; the supplemental drawer attaches underneath the primary drawer.
Key Features
- Large supplemental drawer for compatible StyleView SV43/44 carts
- Supports up to 1.98 lb (0.9 kg) of contents
- Provides 2.5 × 12 × 10.5 inch internal storage dimensions
- Includes dividers for configuring up to 16 compartments
- Features electronic auto-locking and mechanical key-lock access
Applications
The 97-851 is intended for healthcare and clinical workstation environments requiring additional organized storage on StyleView SV43 or SV44 carts. Its removable drawer and configurable dividers support stocking, cleaning, and organization of frequently accessed clinical supplies.
DC Supplies Product Note
The 97-851 is a supplemental drawer accessory, not a complete medical cart or primary drawer. It requires a compatible SV43/44 cart and primary drawer system. When configuring multiple drawer rows, Ergotron specifies the use of the appropriate travel-stop accessory based on the number of rows.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 97-851 |
|---|
| Product Type | SV43/44 Supplemental Single Drawer |
|---|
| Drawer Configuration | Single Large Drawer |
|---|
| Compatible Carts | StyleView SV43 and SV44 |
|---|
| Maximum Load Capacity | 1.98 lb (0.9 kg) |
|---|
| Internal Height | 2.5 in (63.5 mm) |
|---|
| Internal Width | 12 in (305 mm) |
|---|
| Internal Depth | 10.5 in (267 mm) |
|---|
| Interior Organization | Dividers; up to 16 compartments |
|---|
| Locking | Electronic auto-locking and mechanical key lock |
|---|
| Drawer Access | Removable for stocking and cleaning |
|---|
| Color | Gray / White |
|---|
| Package Contents | Drawer assembly, large drawer, dividers, cable |
|---|
| Warranty | 5 years mechanical components; 1 year electrical components |
|---|
FAQs
What is the Ergotron 97-851?
The 97-851 is the Ergotron SV43/44 Supplemental Single Drawer, designed to add one large storage drawer to compatible StyleView carts.
Which carts are compatible with the 97-851?
The drawer is specified for Ergotron StyleView SV43 and SV44 series carts.
How much weight can the drawer hold?
The published maximum load capacity is 1.98 lb (0.9 kg).
What are the internal drawer dimensions?
The internal dimensions are 2.5 inches high × 12 inches wide × 10.5 inches deep.
How many compartments can the drawer provide?
The included dividers allow the interior to be configured into up to 16 compartments.
Does the 97-851 have a locking mechanism?
Yes. The drawer works with the cart's electronic auto-locking system and also provides mechanical key-lock access.
Can the drawer be removed?
Yes. The drawer is designed to be removable for stocking and cleaning.
Does the 97-851 include the complete cart?
No. It is a supplemental drawer assembly intended for installation on a compatible StyleView SV43/44 cart. The primary drawer must be installed first because it contains the drawer controller.
