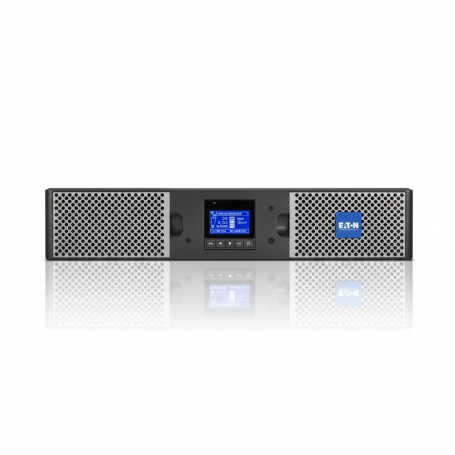

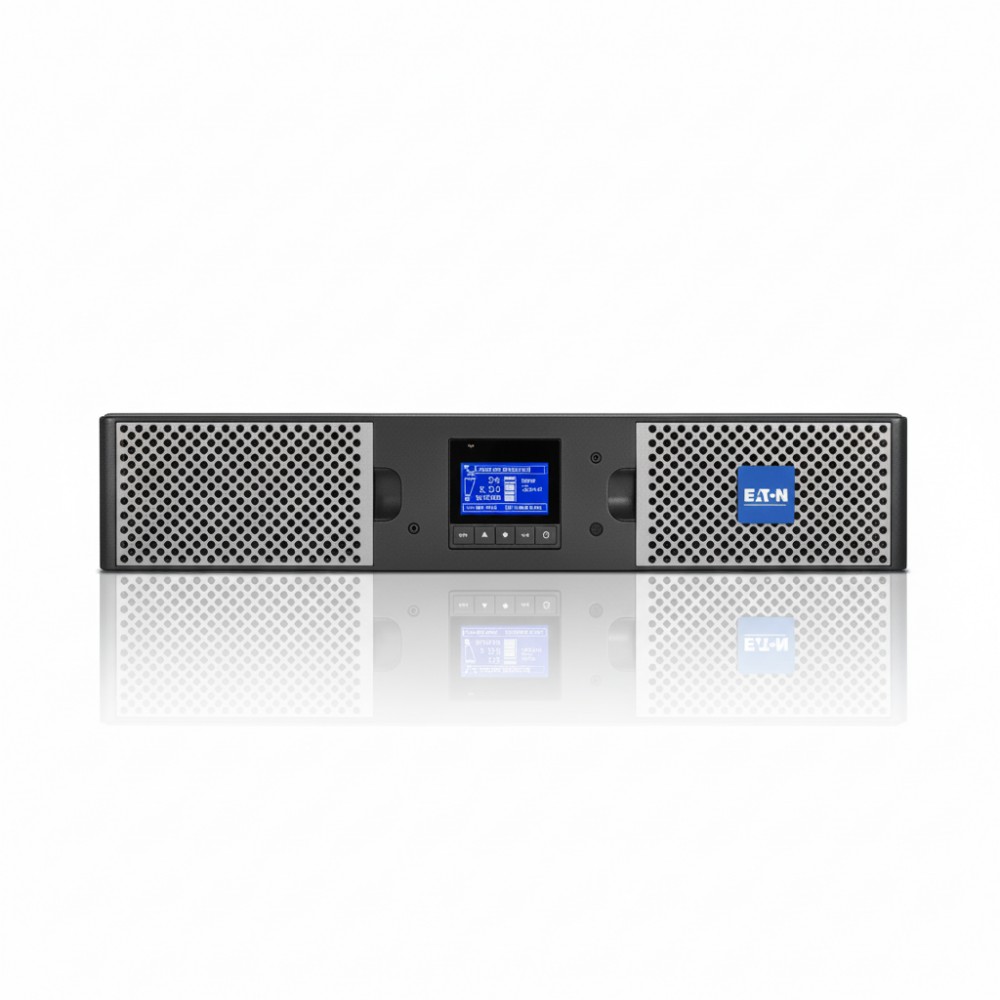

Eaton 9PX1500RTN-L - 1500 VA/1350 W Online UPS (Li-ion)
Overview
The Eaton 9PX1500RTN-L is a true online double-conversion uninterruptible power supply (UPS) with a lithium-ion battery pack, designed for IT infrastructure requiring continuous, conditioned power and zero transfer interruptions. IT engineers, data center technicians, and network architects deploy this UPS to safeguard servers, storage arrays, network equipment, and virtualization hosts from outages, frequency shifts, and voltage irregularities. The online topology ensures the load is continuously powered through inverter output, eliminating power transfer gaps.
This model delivers 1500 VA / 1350 W capacity with a 0.9 output power factor, providing sustained support for mixed IT loads including rack servers, network switches, and converged infrastructure. It outputs a true sine-wave waveform at nominal 120 V, with tight steady-state regulation ±1 % to maintain clean power under varying mains conditions. The unit includes (8) NEMA 5-15R battery-backed outlets and a 5-15P input.
The 9PX1500RTN-L supports rack/tower 2U deployments, enabling integration into standard 19″ racks or free-standing placement on shelves or raised floors near protected loads. Its built-in bypass allows maintenance without load interruption. Lithium-ion chemistry reduces weight and extends battery service life compared to traditional sealed lead-acid options, improving total cost of ownership in distributed and edge environments.
Connectivity includes USB HID, RS-232, and a Mini-Slot expansion with an included Gigabit network card (NETWORK-M3) for SNMP/Web management, remote monitoring, and integration with Eaton Intelligent Power Manager or third-party systems. A graphic multi-button LCD provides runtime, load, and system health visibility during operation and outage events.
In deployment, the 9PX1500RTN-L is used where strict continuity and clean power are essential × such as virtualization clusters, SAN/NAS storage, and core network infrastructure × and where battery longevity and extended service life improve lifecycle planning. It is not a substitute for modular UPS architectures with scalable power capacity; environments needing redundant UPS systems or very high load capacity should select appropriately scaled platforms.
Key Features
- 1500 VA / 1350 W online, double-conversion UPS with Li-ion battery
- True sine-wave output with ±1 % voltage regulation
- (8) NEMA 5-15R battery-supported outlets
- USB, RS-232, and Gigabit network card (included)
- 2U rack/tower form factor with internal bypass
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 9PX1500RTN-L |
| Product Type | Online Double-Conversion UPS |
| VA Rating | 1500 VA |
| Wattage Capacity | 1350 W |
| Output Topology | Online double-conversion |
| Output Waveform | True sine wave |
| Output Power Factor | 0.9 |
| Output Nominal Voltage | 120 V (configurable) |
| Output Receptacles | (8) NEMA 5-15R |
| Input Connection | NEMA 5-15P, 8 ft cord |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Battery Management | Integrated BMS for temperature and lifecycle |
| Extended Battery Support | Up to 4 EBMs (9PXEBM48RT-L) |
| Communications | USB HID, RS-232, Mini-Slot (network card) |
| LCD Interface | Graphic display with 5-button control |
| Form Factor | Rack/tower 2U |
| Rack Mount Kit | Included |
| Internal Bypass | Yes |
| Efficiency (Max Load) | ~90 % |
| Dimensions (H×W×D) | 3.4″ × 17.3″ × 17.7″ |
| Weight | 36.5 lb |
| Operating Temp | 0 °C to 40 °C |
| Noise Level | <47 dB @ 1 m |
