Detailed Specifications

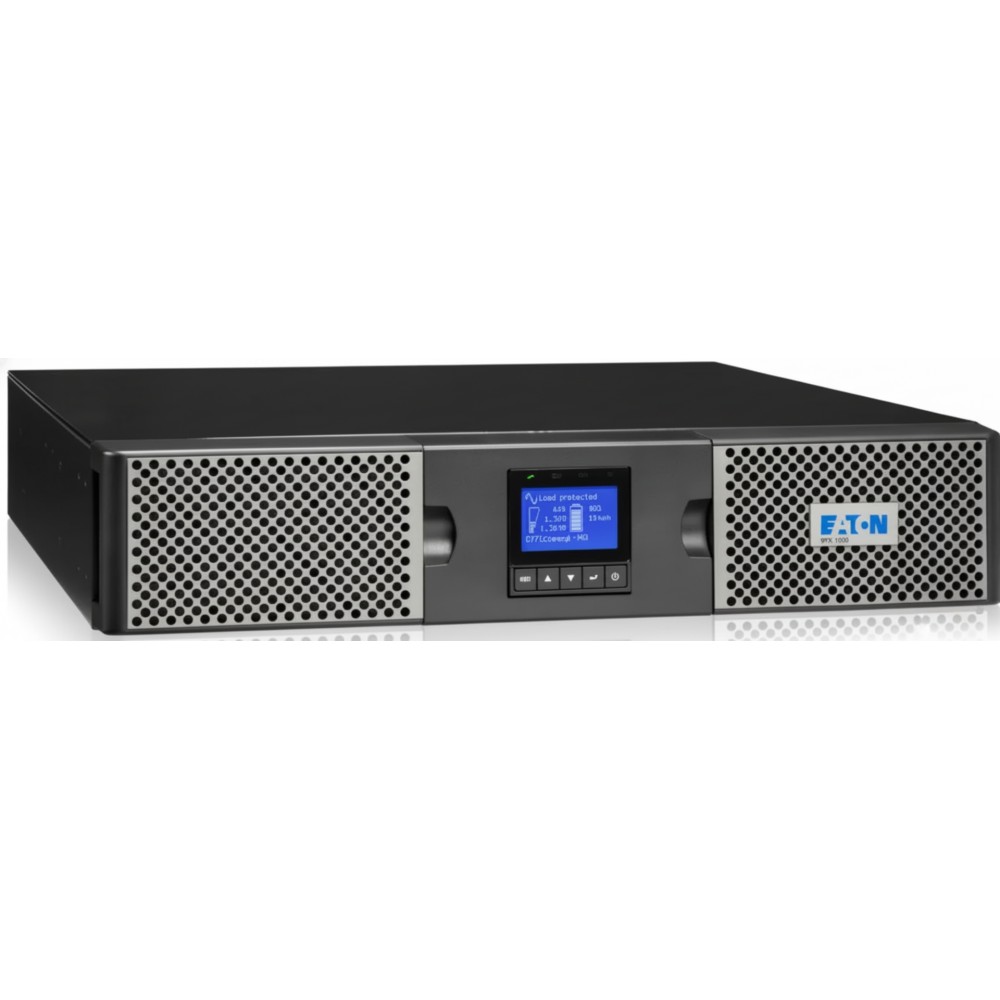

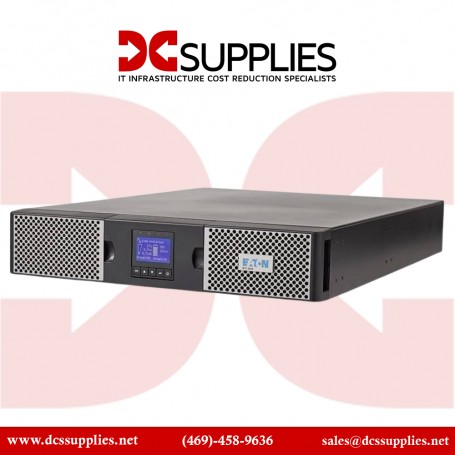

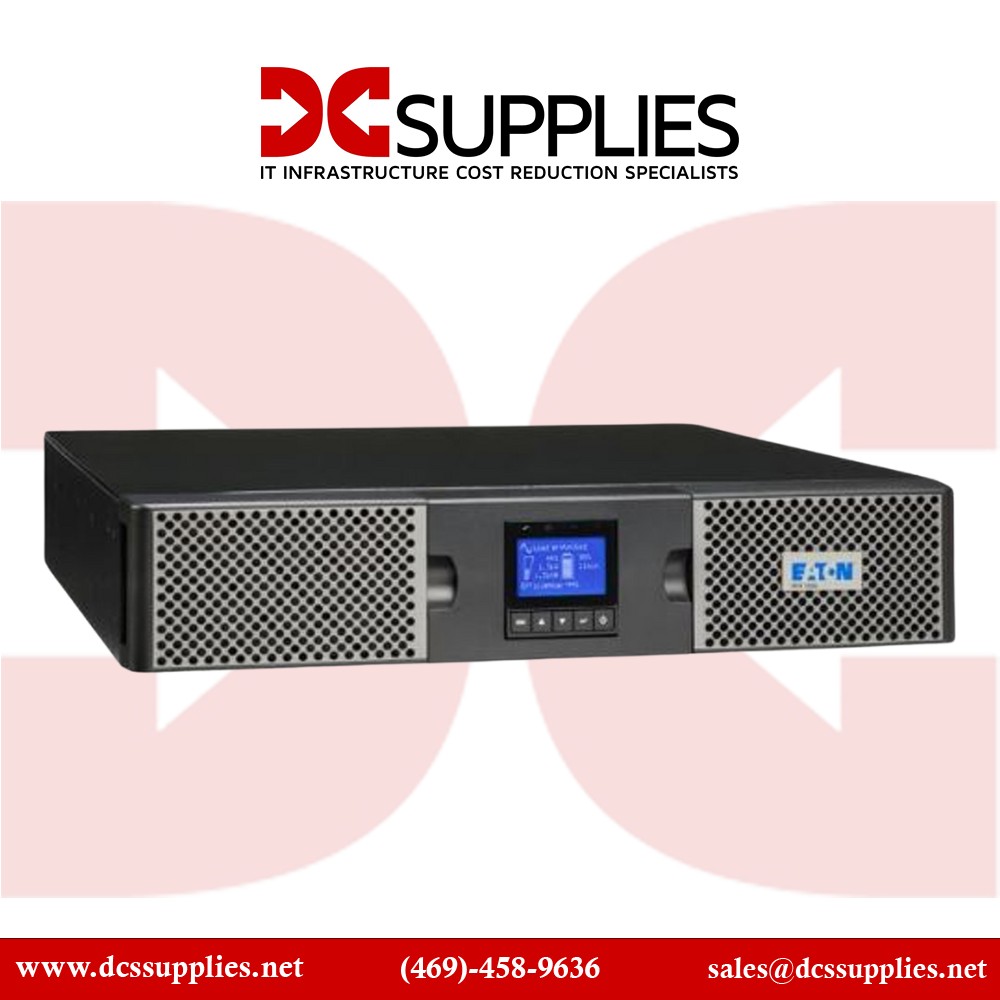

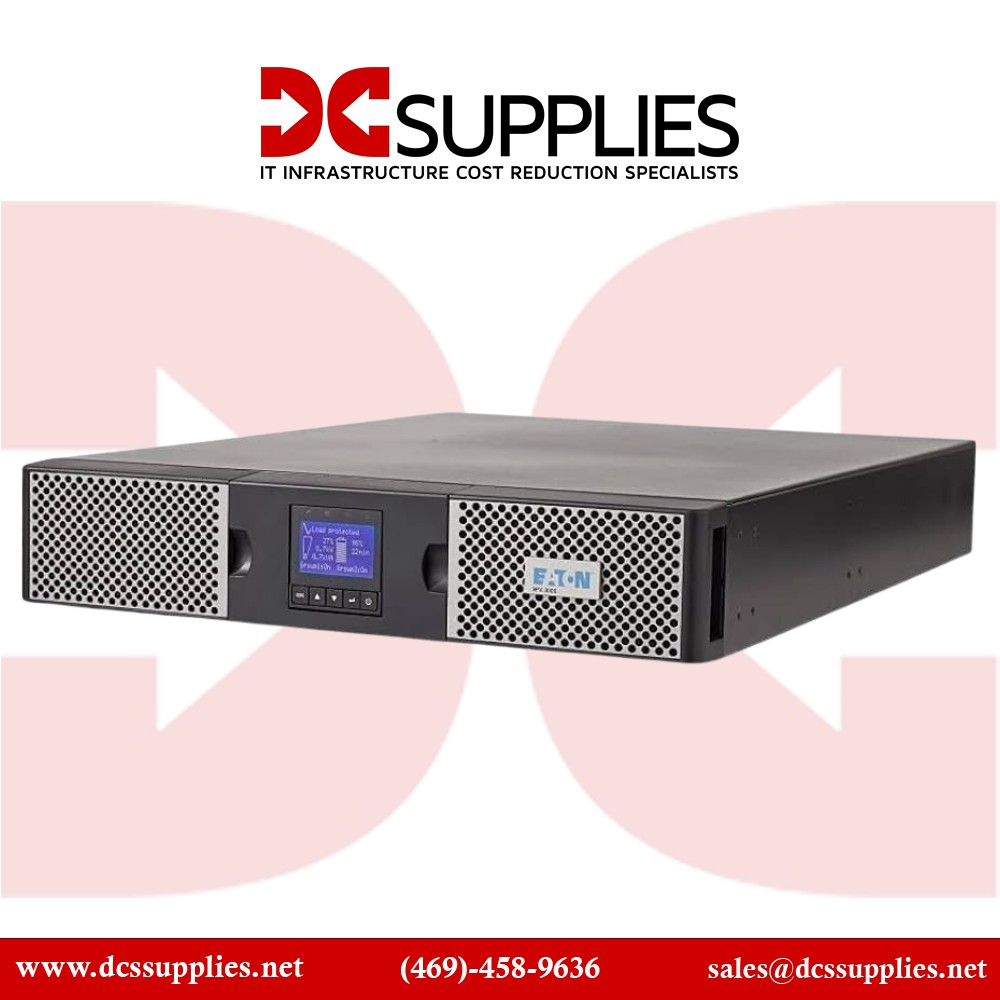

Eaton 9PX1500RTN - 1500 VA/1350 W Online UPS
Overview
The Eaton 9PX1500RTN is a true online double-conversion uninterruptible power supply (UPS) engineered for critical infrastructure requiring continuous power conditioning and uninterrupted load support. It is specified by IT infrastructure engineers and network architects to protect servers, storage arrays, networking equipment, and virtualization hosts from outages and power irregularities. This topology eliminates transfer switching, ensuring seamless transition to battery without interruption.
With a 1500 VA / 1350 W rating and a 0.9 power factor, the 9PX1500RTN delivers sustained output for mixed IT loads and balanced power profiles. It features true sine-wave output ideal for sensitive electronics and supports internal hot-swappable batteries with capability to add extended battery modules for longer runtime.
The unit fits 1U / 2U rack or tower deployments in small data centers, edge computing sites, and distributed branch facilities. Its form factor and included rack-mount kit allow integration into standard 19″ racks or free-standing placement on equipment shelves close to protected loads.
Integration includes a graphical LCD with a 5-button programmable menu, USB port, RS-232 serial port, and a Mini-Slot expansion port with an included Gigabit network card (NETWORK-M3) for native SNMP/Web management and integration with Eaton Intelligent Power Manager or third-party monitoring stacks.
In deployment, this UPS is configured where strict continuity and clean power are essential for transactional systems, virtualization hosts, and storage infrastructure. Runtime depends on load and battery configuration; internal batteries handle normal outage durations, with extended runtime achievable using optional EBMs. It should not be deployed as a primary power source where modular, scalable power capacity or redundant UPS arrays are required; those environments use modular or parallel UPS architectures instead.
Key Features
- Online double-conversion UPS, 1500 VA / 1350 W capacity
- True sine-wave output with ±1 % voltage regulation

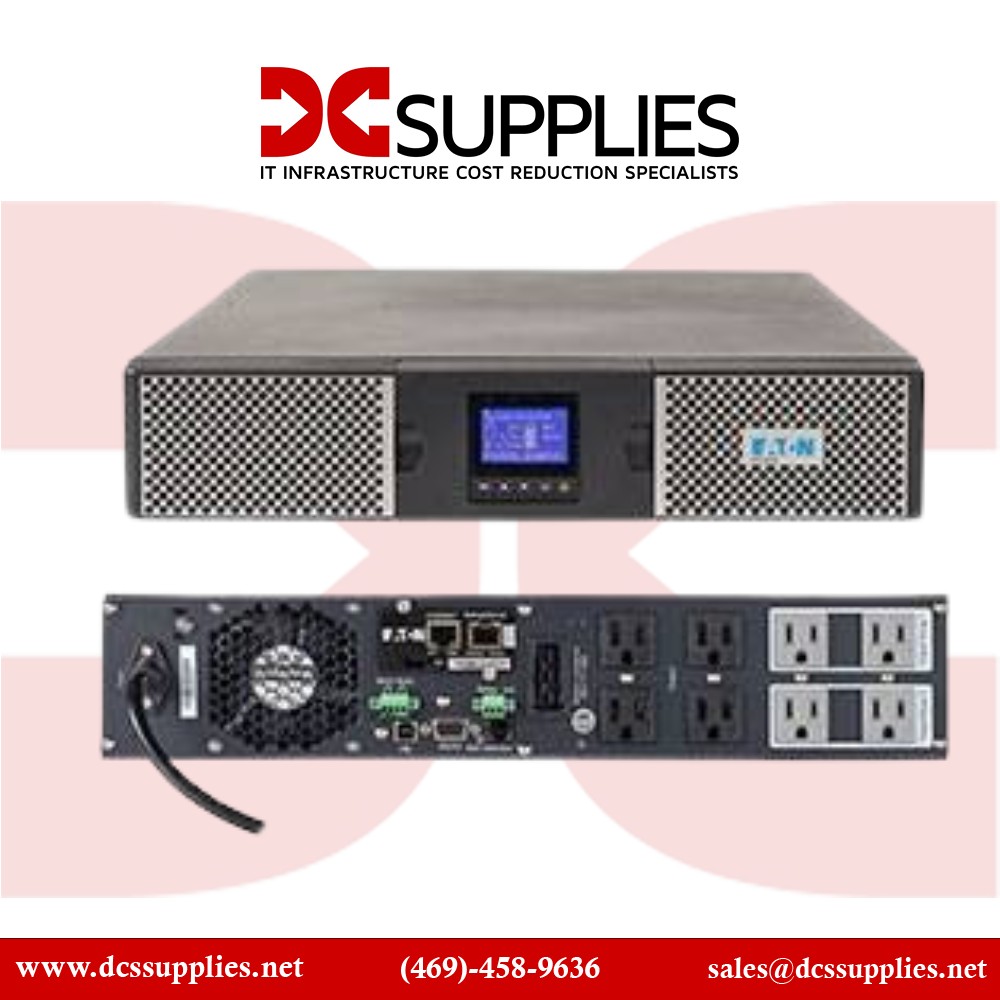

- (8) NEMA 5-15R battery-supported outlets
- USB, RS-232, Mini-Slot (network card included)
- Rack/tower 2U form factor with internal bypass
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 9PX1500RTN |
| Product Type | Online Double-Conversion UPS |
| VA Rating | 1500 VA |
| Wattage Capacity | 1350 W |
| Output Topology | Online double conversion |
| Output Waveform | True sine wave |
| Output Power Factor | 0.9 |
| Output Nominal Voltage | 120 V (configurable 100/110/120/125 V) |
| Output Receptacles | (8) NEMA 5-15R |
| Input Nominal Voltage | 120 V (configurable) |
| Input Connection | NEMA 5-15P, 8 ft cord |
| Communications | USB, RS-232, Mini-Slot (network card) |
| Management | Intelligent Power Manager compatible |
| Form Factor | Rack/tower, 2U |
| Rack Mount Kit | Included |
| Battery Type | Sealed lead-acid, hot-swappable |
| Extended Battery Support | Yes (up to 4 EBMs) |
| Internal Bypass | Yes |
| Efficiency (Max Load) | ~90 % |
| Dimensions (H×W×D) | 3.4″ × 17.3″ × 17.7″ |
| Weight | 42.5 lb |
| Operating Temp | 0 °C - 40 °C |
| Noise Level | <40 dB @1 m |
