Eaton 9SX700 - 700 VA Online Double-Conversion UPS
Overview
The Eaton 9SX700 is an online (double-conversion) uninterruptible power supply (UPS) engineered to provide continuous, utility-isolated AC output and battery backup for sensitive electronic equipment on 120 V AC mains. It is deployed by IT engineers, network technicians, and facility infrastructure teams to protect servers, storage, network appliances, telecommunications gear, and other critical loads from power quality issues×including surges, sags, spikes, and outages×while delivering a true sine-wave output. Online double-conversion topology eliminates transfer time to battery and maintains output independent of input quality.
This UPS is rated 700 VA / 630 W with an output power factor of 0.9, providing usable load capacity for compact IT racks and small cabinets. Output is delivered through six NEMA 5-15R receptacles, and input is via a NEMA 5-15P plug on an 8 ft cord. Eaton's ABM battery management increases battery service life by up to 50 % and enables hot-swappable internal batteries for serviceability without downtime.

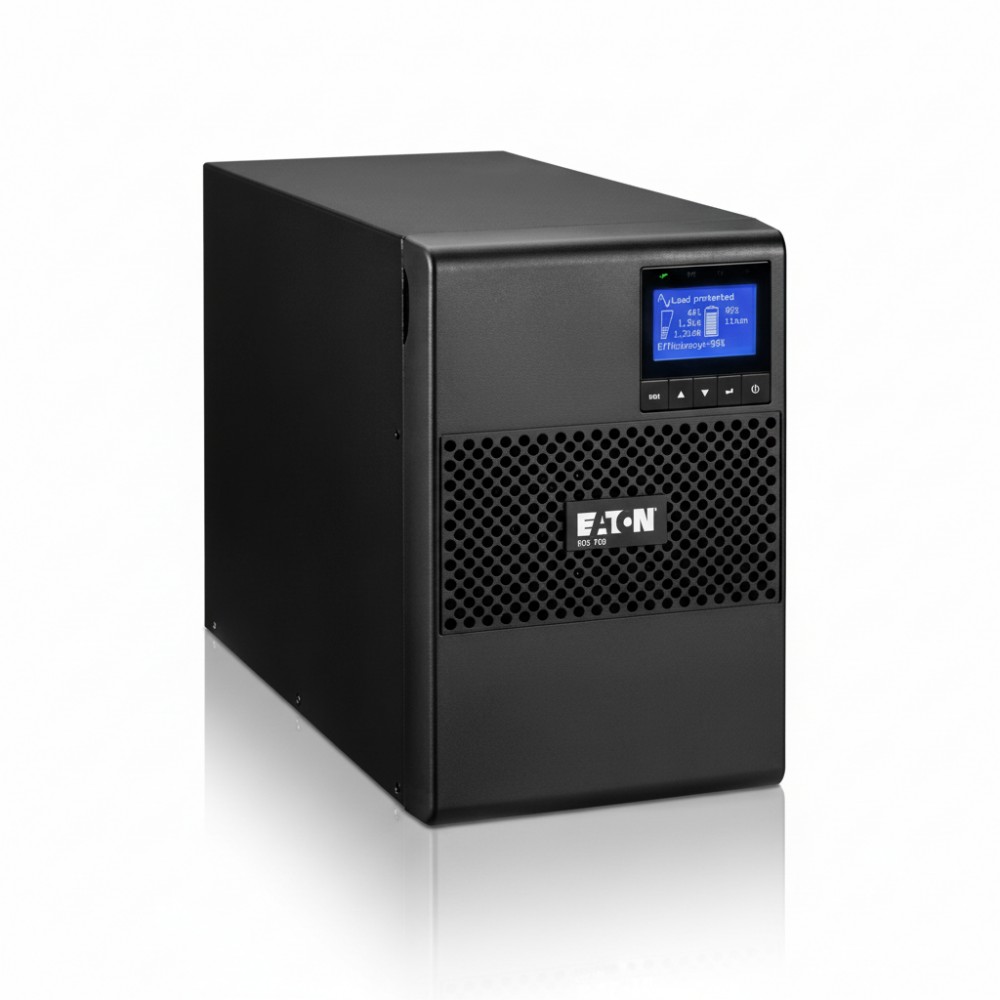

The unit's tower form factor (9.9″ H × 6.3″ W × 13.9″ D) and ~26.5 lb weight make it practical for placement in IT closets, network rooms, edge racks (on shelf), or distributed compute closets with space constraints. A graphical LCD interface combined with a 5-button user interface provides onsite visibility into load, battery, events, and diagnostics without requiring host-side software.
Communications include a USB (HID) port, RS-232 serial port, relay output, and Mini-Slot (MS) expansion port for optional connectivity cards (e.g., network/snmp, Modbus, relay), enabling integration with remote monitoring or automation platforms.
A practical deployment is protecting a small rack of rackmount servers, an IP-phone system, or NAS/storage clusters where utility power instability could cause data corruption or service interruption. The unit is not suitable for mid-to-large data center core rows where extended runtime via external battery modules or parallel UPS systems is required, as this model lacks native high-availability parallel capability.
Key Features
• 700 VA / 630 W online (double-conversion) UPS topology
• True sine-wave output with 0.9 output power factor
• Six NEMA 5-15R output receptacles for mixed loads
• ABM battery management with hot-swappable battery
• USB HID, RS-232 serial comms + Mini-Slot expansion
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 9SX700 |
| Product Type | Online double-conversion UPS, tower |
| Rated Capacity | 700 VA / 630 W |
| Topology | Online (double-conversion) |
| Input Connection | NEMA 5-15P, 8 ft cord |
| Output Receptacles | 6 × NEMA 5-15R |
| Output Power Factor | 0.9 |
| Output Waveform | True sine wave |
| Nominal Voltage | 120 V AC |
| Frequency | 50/60 Hz ±1 Hz |
| Battery Type | Sealed lead-acid, hot-swappable |
| Battery Management | Eaton ABM 3-stage charging |
| Runtime (Typical) | ~5-6 min @ full load |
| Communications | USB (HID), RS-232, relay, Mini-Slot expansion |
| Display | Graphical LCD, 5-button interface |
| Dimensions (H×W×D) | 9.9″ × 6.3″ × 13.9″ |
| Weight | 26.5 lb (~12 kg) |
| Operating Temp | 0-40 °C |
| Relative Humidity | 0-96 % non-condensing |
| Noise Level | ~51 dB @ 1 m |
