Detailed Specifications

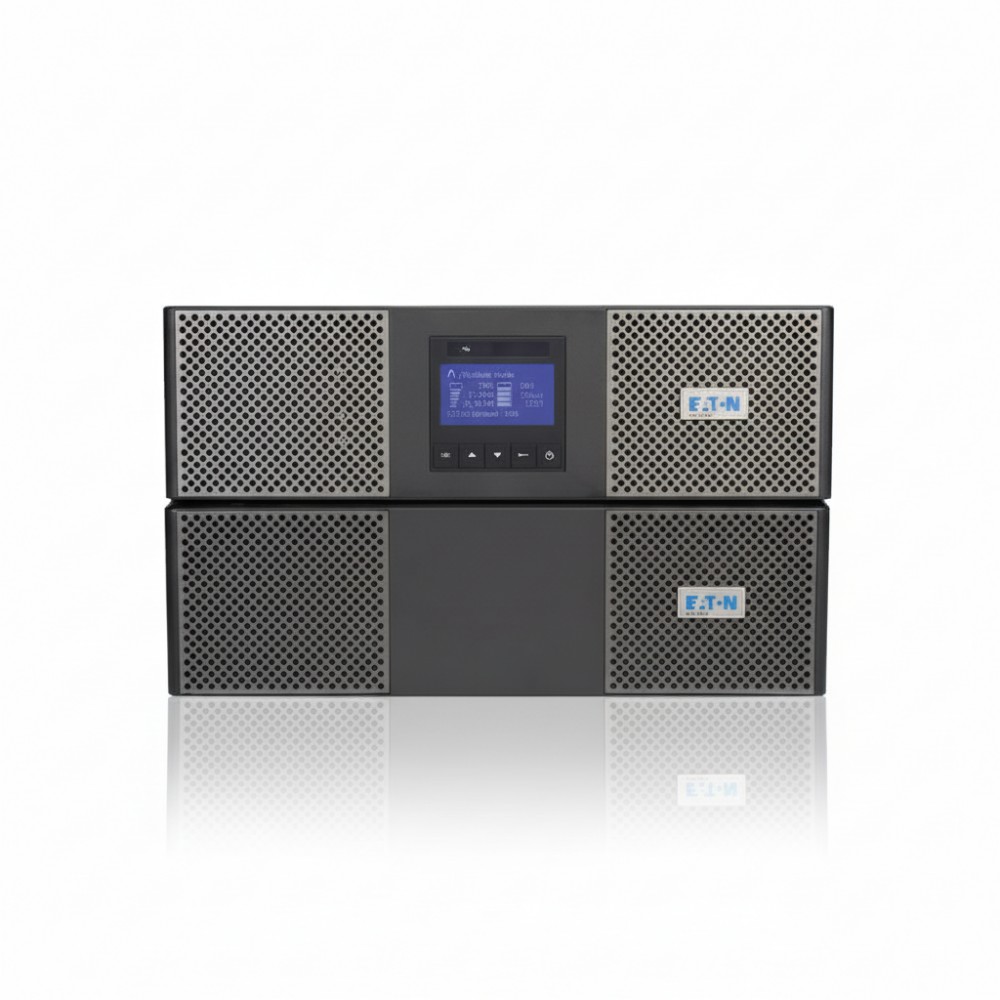

Eaton 9PX8KHW - 8kVA Online Double-Conversion UPS
Overview :
The Eaton 9PX8KHW is an 8kVA/7.2kW true online double-conversion uninterruptible power supply (UPS) designed to provide reliable power protection for critical IT infrastructure. It features a 6U rack/tower form factor with hardwired input and output connections, making it suitable for data centers, server rooms, and edge deployments. The UPS delivers a true sine wave output, ensuring compatibility with sensitive equipment. With an input voltage range of 200-250V and a frequency range of 50-70Hz, it offers flexibility for various power environments. The 9PX8KHW includes a network card for remote monitoring and management, enhancing operational efficiency. Its compact design and robust performance make it a reliable choice for organizations seeking to safeguard their critical systems against power disturbances.
Key Features :
8kVA/7.2kW true online double-conversion UPS
6U rack/tower form factor with hardwired connections
True sine wave output for sensitive equipment
Input voltage range: 200-250V; frequency: 50-70Hz
Includes network card for remote monitoring
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PX8KHW |
| Product Type | Online Double-Conversion UPS |
| Power Rating | 8000 VA / 7200 W |
| Form Factor | 6U Rack/Tower |
| Input Voltage Range | 200-250 V |
| Input Frequency Range | 50-70 Hz |
| Output Voltage | 208 V |
| Output Waveform | True Sine Wave |
| Output Connections | Hardwired |
| Network Card Included | Yes |
| Operating Temperature | 0-40°C (32-104°F) |
| Storage Temperature | 0-35°C (32-95°F); without batteries: -15-60°C (5-140°F) |
| Humidity Range | 0-95% non-condensing |
| Dimensions (HxWxD) | 10.2 x 17.3 x 27.6 in |
| Weight | 190 lbs |
