Detailed Specifications

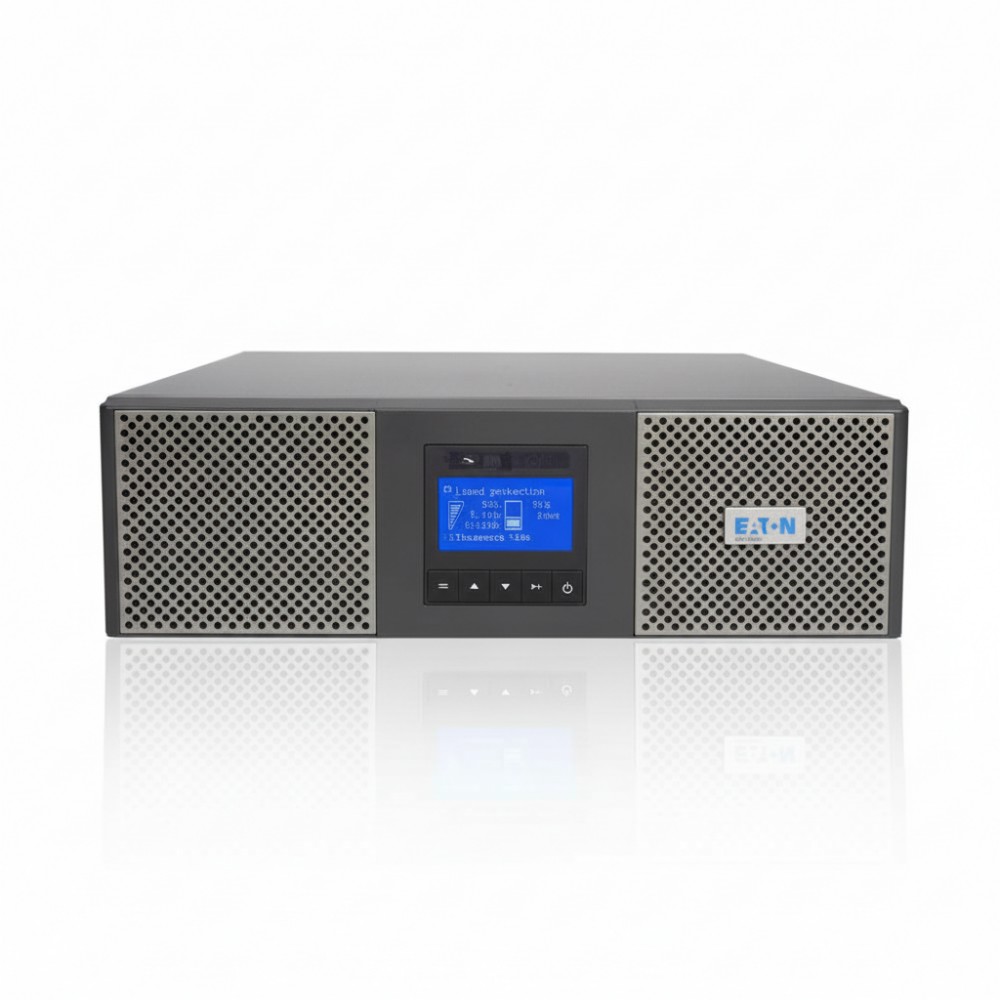

Eaton 9PX6K - 6000VA Rackmount UPS
Overview :
The Eaton 9PX6K is a 6000VA double-conversion online UPS designed for mission-critical IT applications requiring high power density and reliability. It delivers 5400W of pure sine wave output with a 0.9 power factor, ensuring efficient power delivery to sensitive equipment. The UPS features a compact 3U rackmount form factor, making it suitable for space-constrained environments such as data centers and server rooms. It operates within a wide input voltage range and includes a NETWORK-M3 web card for remote monitoring and management.
Key Features :
High Efficiency: Achieves up to 93% efficiency at maximum load.
Compact Design: 3U rackmount form factor saves valuable space.
Flexible Connectivity: Includes (2) L6-20R, (2) L6-30R outlets, and hardwired output.
Comprehensive Protection: Features internal bypass and surge protection.
Remote Management: Comes with NETWORK-M3 web card for SNMP/Web connectivity.
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PX6K |
| Product Type | Online Double-Conversion UPS |
| Power Rating | 6000 VA / 5400 W |
| Input Connection | L6-30P |
| Output Receptacles | (2) L6-20R, (2) L6-30R, Hardwired |
| Nominal Output Voltage | 208V |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz |
| Rack Size | 3U |
| Dimensions (HxWxD) | 5.1 x 17.3 x 27.03 inches |
| Weight | 106 lbs |
| Efficiency at Max Load | 93% |
| Operating Temperature | 0 to 40°C (32°F to 104°F) |
| Storage Temperature | 0 to 35°C (32°F to 95°F); without batteries: -15 to 60°C (5°F to 140°F) |
