Detailed Specifications

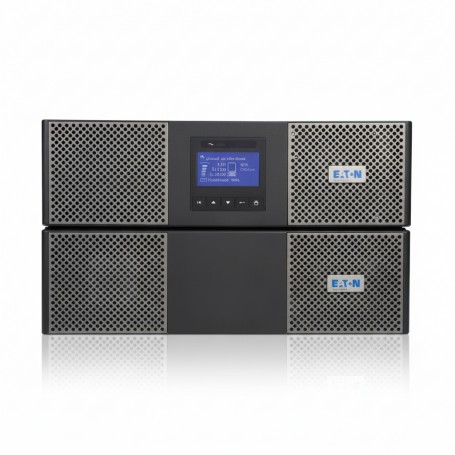

Eaton 9PX5KTF5 - 5kVA Online Double-Conversion UPS
Overview :
The Eaton 9PX5KTF5 is a 5kVA (4500W) uninterruptible power supply (UPS) designed for critical IT infrastructure. It provides true online double-conversion protection, ensuring continuous, clean power for servers, networking equipment, and storage systems. With an integrated 120V step-down transformer, it supports a wide range of devices requiring 120V or 208V input. This UPS is suitable for deployment in data centers, server rooms, and edge computing environments. It includes a Network-M2 Web/SNMP card for remote monitoring and management, enhancing operational efficiency.
Key Features :
Online double-conversion topology for consistent power quality
Integrated 120V step-down transformer for versatile connectivity
ABM technology extends battery life by 50%
Hot-swappable internal batteries and optional extended battery modules
Network-M2 card included for remote monitoring and management
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 9PX5KTF5 |
| Product Type | Online Double-Conversion UPS |
| Power Rating (VA) | 5000 |
| Power Rating (W) | 4500 |
| Input Voltage | 208V (200-240V nominal) |
| Input Plug | L6-30P |
| Output Voltage | 120/208V |
| Output Receptacles | (18) 5-20R, (2) L6-20R, (1) L6-30R |
| Efficiency | 93% at full load |
| Topology | Online Double-Conversion |
| Battery Type | Sealed Lead-Acid (VRLA) |
| Battery Management | ABM Technology |
| Mounting Options | Rack (6U) / Tower |
| Dimensions (H x W x D) | 10.2" x 17.3" x 28.4" |
| Weight | 201 lbs |
| Warranty | 2 Years |
