Detailed Specifications

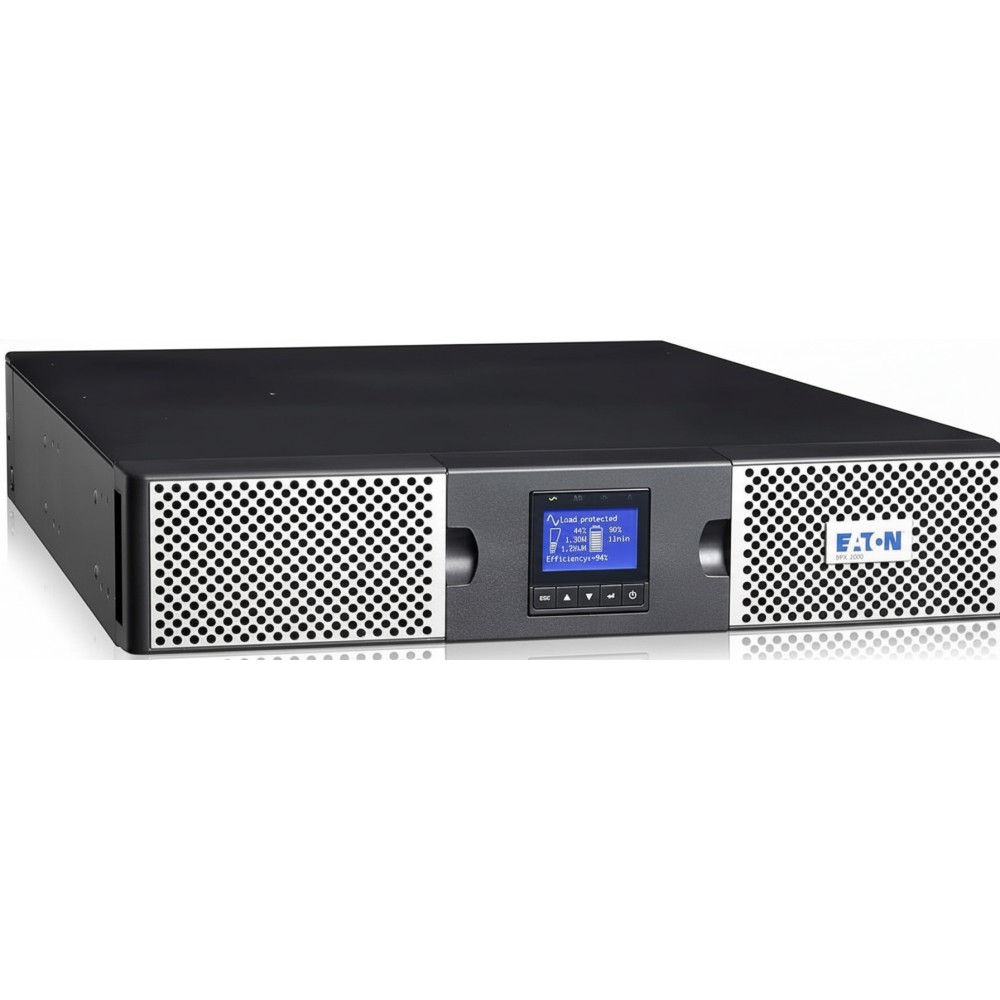

Eaton 9PX3000GLRT 3 kVA 3 kW Online Double Conversion UPS
Overview
The Eaton 9PX3000GLRT is a high-density, rack/tower convertible online UPS built for IT racks, data centres and edge deployments that demand clean power, high capacity and compact form-factor efficiency. This model delivers 3000 VA / 3000 W at a unity (1.0) power factor for 208 V applications×meaning the real-load wattage equals the VA rating, giving you full utilisation of the rated power. The unit uses double-conversion "online" topology to supply a pure sine-wave output while the input side can vary widely (~200 V to 240 V), with output regulation of ±1% in steady-state, protecting servers, network gear and storage from brown-outs, voltage fluctuations or interruptions. Built into a 2U rack-mount frame with included 4-post rail kit (and convertible to tower use), this UPS installs into standard 19″ enclosures, preserves rack U-space, and supports up to four external battery modules for extended runtime. Communication interfaces include USB, RS-232, remote on/off and relay contacts; the Mini-Slot expansion port supports network-management cards for remote monitoring and control. Efficiency at full load reaches approximately 93%, helping to reduce energy and cooling costs while maintaining power protection integrity. The 9PX3000GLRT is ideal for mid-sized server racks, network core closets or distributed edge installations where uptime and power quality cannot be compromised.
Key Features
3000 VA / 3000 W output at unity power factor (1.0) supports full real-load capacity for critical IT equipment.
Online double-conversion architecture with true sine-wave output and ±1% steady-state voltage regulation protects sensitive gear under all line conditions.
2U rack/tower convertible form-factor with detachable input cord and rack-mount kit preserves usable rack space and simplifies deployment.
Modular architecture supports up to four external battery modules (EBMs) for scalable runtime without replacing the UPS.
Comprehensive communication interfaces×including USB, RS-232, mini-terminal remote contacts, and Mini-Slot expansion×allow integration into DCIM, remote monitoring, alerting and proactive maintenance.
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 9PX3000GLRT |
| Product Type | Online Double-Conversion UPS |
| Output Power Rating | 3000 VA / 3000 W |
| Input Voltage | Default 208 V (200/208/220/230/240 V supported |
| Output Nominal Voltage | 208 |
| Output Power Factor | 1.0 |
| Topology | Online/Double-Conversion, True Sine Wave |
| Form Factor | Rack/Tower Convertible, 2U Height |
| Efficiency at Full Load | ~93% |
| Management Interfaces | Mini-Slot expansion, USB, RS-232, remote contact blocks |
