Eaton 9PX1000GRT Online UPS 1000VA 900 Watt 208V 2U Rack/Tower Network Card Optional View larger

Eaton 9PX1000GRT 9PX UPS, 2U 1000VA, 900W C14 input

New

In Stock

Eaton 1000VA 900W Online Double-Conversion UPS
×




$1,235.00

  • New

Detailed Specifications

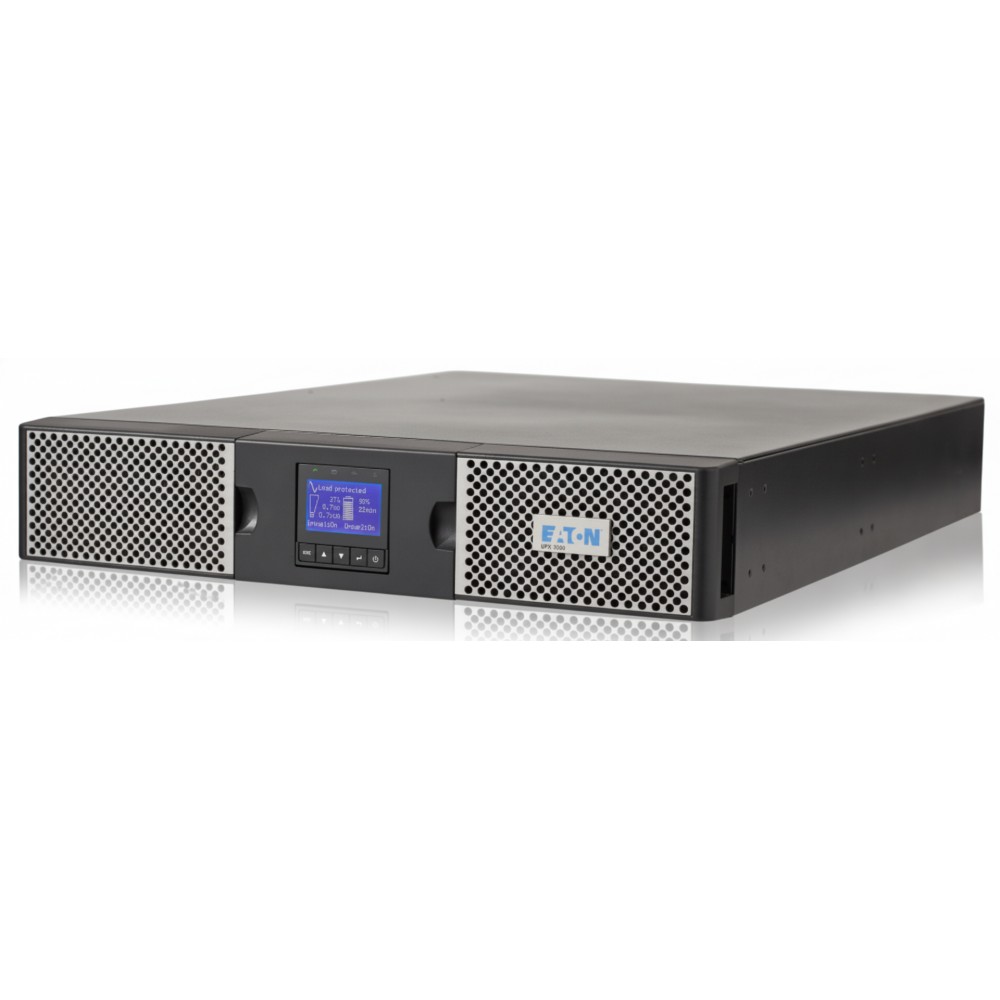

Eaton 9PX1000GRT – 1000VA 900W Online Double-Conversion UPS

Overview :

The Eaton 9PX1000GRT is a 1000VA/900W uninterruptible power supply (UPS) designed for mission-critical IT equipment in environments such as data centers, edge networks, and industrial automation. Utilizing online double-conversion topology, it provides continuous, high-quality AC power by converting incoming AC to DC and then back to AC, ensuring zero transfer time during power disturbances. This UPS supports input voltages of 200–240V and offers true sine wave output with a 0.9 power factor, making it suitable for sensitive electronics like servers and network switches. Its compact 2U rack/tower form factor allows flexible deployment in various settings. The 9PX1000GRT also features advanced battery management with ABM® technology, extending battery life by up to 50% and providing proactive battery health monitoring.

Key Features :

  • Online double-conversion topology for zero transfer time

  • Advanced ABM® charging technology extends battery life

  • True sine wave output with 0.9 power factor

  • Compact 2U rack/tower form factor for flexible deployment

  • Supports up to four extended battery modules for increased runtime

Specifications :

SpecificationDetails
Brand Eaton
Part Number 9PX1000GRT
Product Type Online Double-Conversion UPS
Capacity 1000 VA / 900 W
Input Voltage Range 200–240V AC
Output Voltage 208V AC
Output Power Factor 0.9
Output Waveform True Sine Wave
Topology Online Double-Conversion
Form Factor 2U Rack/Tower
Dimensions (H x W x D) 3.4" x 17.3" x 17.7"
Weight 38.6 lbs
Input Connection C14
Output Receptacles (8) C13
Battery Type Sealed Lead-Acid (VRLA)
Battery Management ABM® Technology
Extended Battery Support Up to 4 Extended Battery Modules
Efficiency (Max Load) 91.2%
Noise Level <40 dB at 1 meter
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 0–96% Non-Condensing
Altitude 0–3000m
Certifications CE, cULus, ENERGY STAR
Warranty 3-Year Limited
