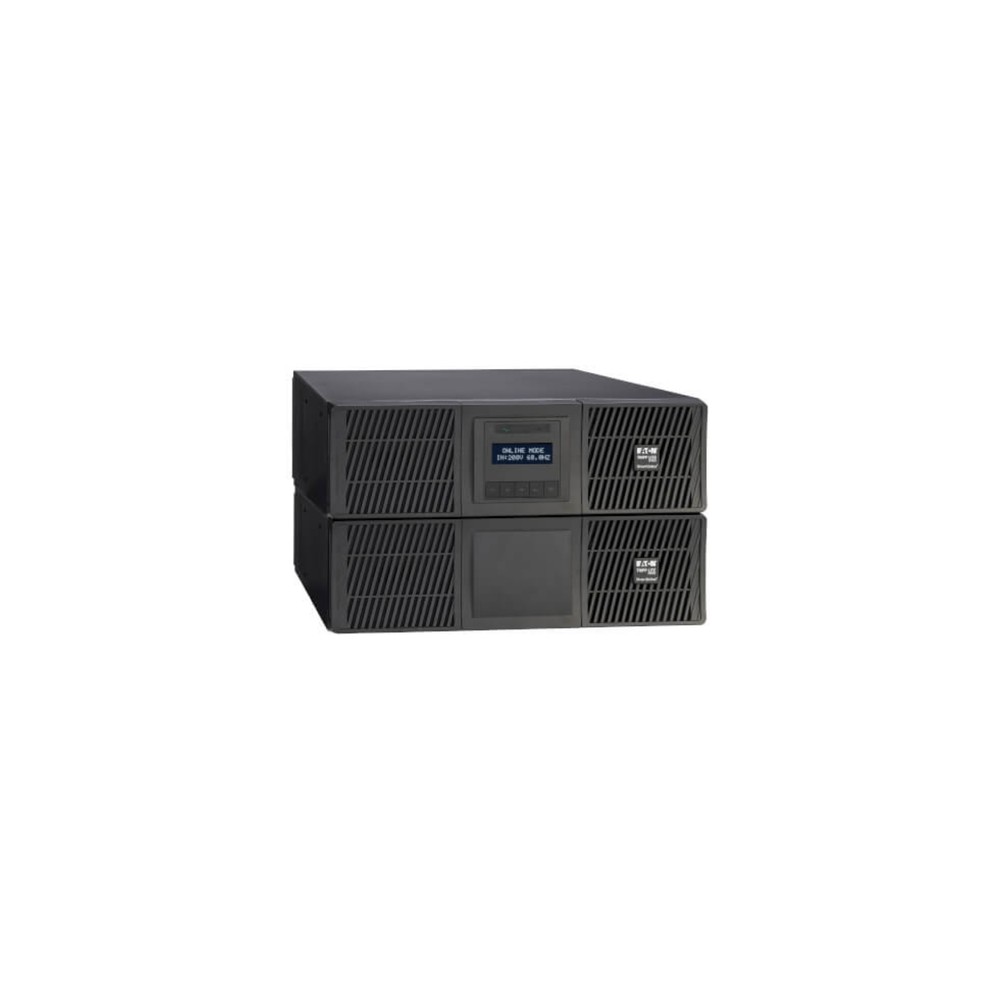

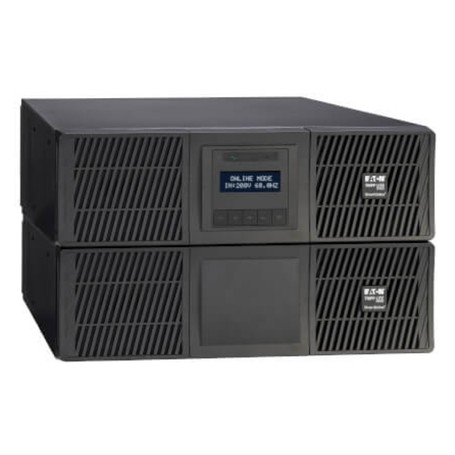

Eaton SU6000RTFMB Double Conversion Online UPS 5400W

Eaton SU6000RTFMB Double Conversion Online UPS 5400W

Overview

The Eaton Tripp Lite Series SU6000RTFMB is an industrial-grade 6000VA/5400W online double-conversion UPS system engineered for high-density IT infrastructure, enterprise servers, and edge network nodes. This comprehensive power protection architecture features a built-in 208V to 120V stepdown isolation transformer and a manual maintenance bypass switch module. Mission-critical data center engineers deploy this configuration to eliminate all power anomalies while delivering clean, continuous, pure sine wave power to both high-voltage network equipment and low-voltage storage arrays.

Operating with zero transfer time via continuous AC-to-DC and DC-to-AC conversion, the internal inverter mechanism fully isolates downstream equipment from utility surges, harmonic distortion, frequency fluctuations, and blackouts. The integrated stepdown transformer converts 208V high-voltage input into usable 120V low-voltage output, enabling infrastructure procurement teams to connect a diverse distribution mix of network assets to a single centralized backup source.

The 6U modular hardware kit is optimized for standard 19-inch rack enclosures or standalone tower configurations in climate-controlled server rooms. It features an included manual bypass switch that reroutes utility power around the system, allowing hot-swappable battery or module maintenance without bringing down the connected data center load. Do not deploy this unit in unventilated or non-temperature-controlled environments, as continuous maximum-load thermal dissipation requires constant forced-air cooling.

Key Features

• Online double-conversion operation guarantees zero transfer time to backup battery mode.

• Stepdown transformer converts 208V input to 120V output for multi-voltage flexibility.

• Included manual bypass switch permits full UPS maintenance without dropping the load.

• Pre-installed WEBCARDLXE network interface enables 24/7 remote SNMP HTML management.

• Expandable architecture supports up to four external battery modules for extended runtime.

Specifications
