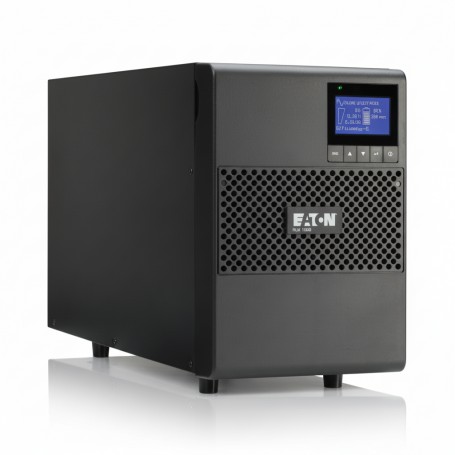

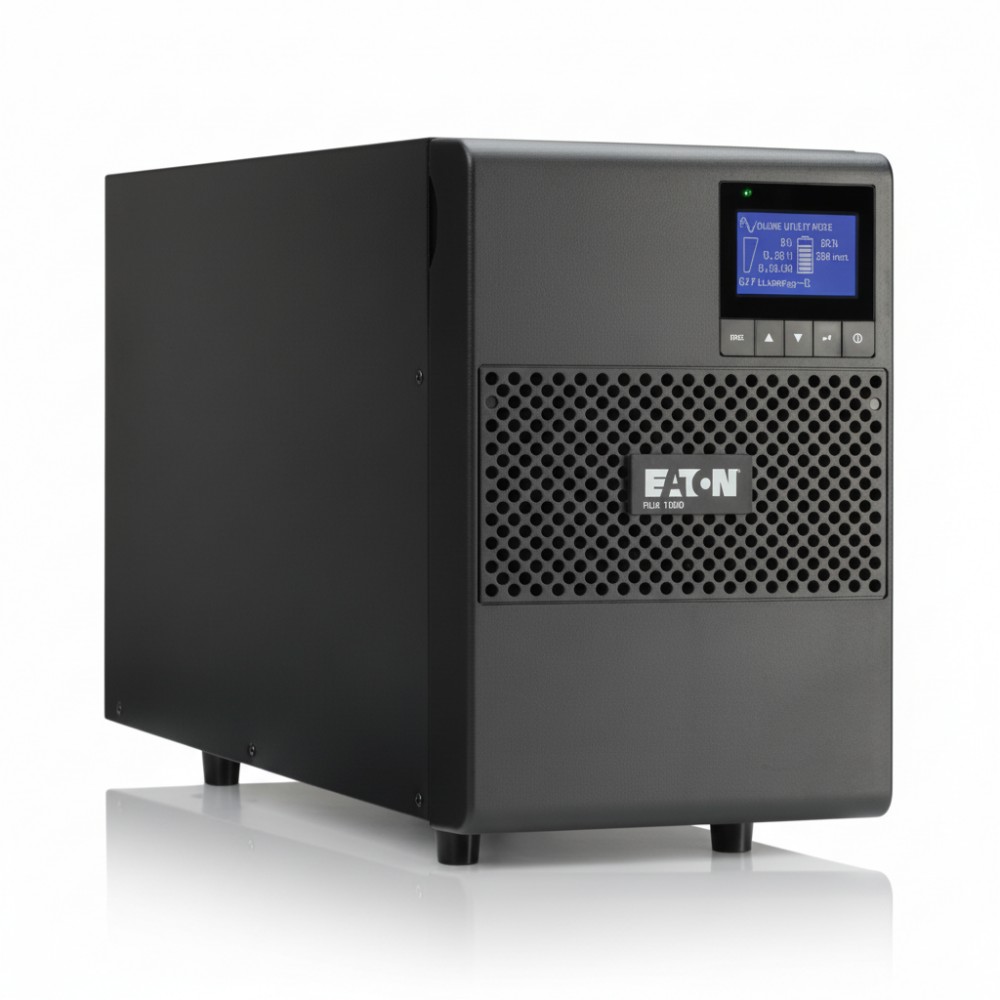

Eaton 9SX1000 1 kVA 900 W On Line Double Conversion UPS

Eaton 9SX1000 1 kVA 900 W On Line Double Conversion UPS

Overview

The Eaton 9SX1000 is a high-quality uninterruptible power supply (UPS) rated at 1000 VA (approx. 900 W) in a single-phase, nominal 120 V output configuration. It uses true on-line double-conversion topology—meaning it converts AC to DC and then back to AC—providing fully regulated sine-wave output with zero transfer time to battery.Designed in a compact tower format (9.9″ height × 6.3″ width × 15.1″ depth) and weighing ~30.9 lb, the 9SX1000 is suited for server rooms, network closets or remote branch-site racks where space is limited but uptime matters.The product includes front-panel LCD display, USB and RS-232 connectivity, and a Mini-Slot expansion port for optional network management cards—enabling monitoring, shutdown automation and integration into IT management frameworksFrom a deployment view: this UPS is ideal when you need clean, dependable power for one to a few servers or network devices, want regulated output (important for active-PFC supplies), and may want to add external battery modules (EBMs) later for extended runtime. In environments such as Lahore or other areas with unstable mains, the 9SX1000 helps shield critical equipment from brown-outs, surges and outages.

Key Features

• Rated at 1000 VA / 900 W output with true sine-wave waveform—supports active-PFC equipment and sensitive loads.

• Online double-conversion topology with zero transfer time ensures uninterrupted power and regulated output.

• Compact tower format with hot-swappable internal batteries and optional external battery modules for runtime scalability.

• Connectivity features include USB, RS-232 ports plus a Mini-Slot expansion slot for network cards, enabling remote monitoring and management.
