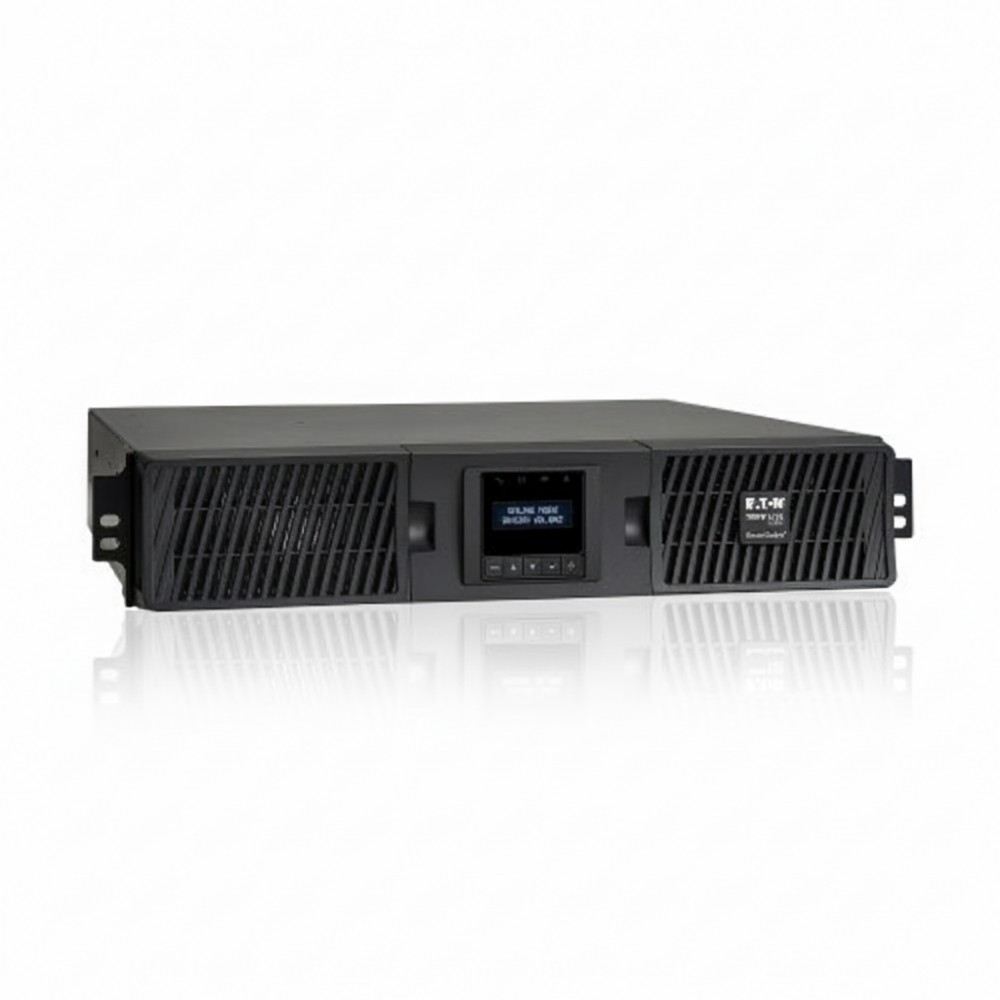

Eaton SU2200RTXLCD2UTAA - UPS 2000 VA 1800 W
Overview
The Eaton SU2200RTXLCD2UTAA (Tripp Lite SmartOnline series) is a 2000 VA / 1800 W online double-conversion UPS designed to provide conditioned AC power with zero transfer time for servers, networking gear, storage, and critical edge systems in 120 V environments. It is typically deployed by infrastructure engineers and data center operators to eliminate outages, brownouts, frequency variations, and other power anomalies that disrupt equipment operation.
Operating in online/double-conversion topology, this UPS isolates loads from the utility supply, delivering a pure sine-wave output with a 0.9 power factor. It accepts nominal 120 V AC input via a NEMA 5-20P plug and supports seven output receptacles×six NEMA 5-20R plus one NEMA L5-20R×for diverse load distribution.
The unit fits a rack/tower convertible 2U form factor, with included hardware for mounting in standard 19-inch cabinets or as a compact stand-alone unit in server rooms and network closets where space and power quality matter. A rotatable LCD display provides real-time UPS and site power metrics, aiding rapid diagnostics under load conditions.
Communication capabilities include USB, RS-232 serial, dry contact, and RPO/ROO interfaces, with an expansion slot for an optional WEBCARDLXE network management card (not included) supporting remote monitoring and control. Hot-swappable VRLA batteries support orderly shutdowns and can be extended with up to four BP72RT2UTAA external modules for prolonged runtime.
This model is TAA compliant for government procurements and integrates surge protection and internal bypass circuitry to maintain output quality across a range of utility conditions. It is not designed for 208/230 V electrical systems; choose a volt-appropriate variant for non-120 V infrastructures.
Key Features
• 2000 VA / 1800 W online double-conversion UPS with zero transfer time
• Pure sine-wave output at 120 V with 0.9 power factor
• (6) NEMA 5-20R + (1) NEMA L5-20R receptacles
• Rotatable LCD for detailed power and UPS status
• USB/RS-232/dry contact + optional network expansion slot
Technical Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SU2200RTXLCD2UTAA |
| Product Type | Online Double-Conversion UPS |
| VA Rating | 2000 VA |
| Output Power | 1800 W |
| Topology | Online/double-conversion |
| Output Voltage | Nominal 120 V AC |
| Output Power Factor | 0.9 |
| Input Connection | NEMA 5-20P 8 ft cord |
| Output Receptacles | (6) NEMA 5-20R, (1) NEMA L5-20R |
| Output Waveform | Pure sine wave |
| Transfer Time | 0 ms |
| Communications | USB, RS-232, dry contact, RPO/ROO |
| Expansion Slot | Optional WEBCARDLXE |
| LCD Interface | Rotatable LCD display |
| Battery Type | Hot-swappable VRLA |
| Runtime (Full Load) | ~7.7 min |
| Runtime (Half Load) | ~20.2 min |
| Extended Runtime | Up to 4 EBMs (BP72RT2UTAA) |
| Dimensions (HxWxD) | 3.41 × 17.32 × 23.82 in |
| Weight | ~61.55 lb |
| Operating Temp | 0°-40 °C |
| Relative Humidity | 0-96 % non-condensing |
