Detailed Specifications

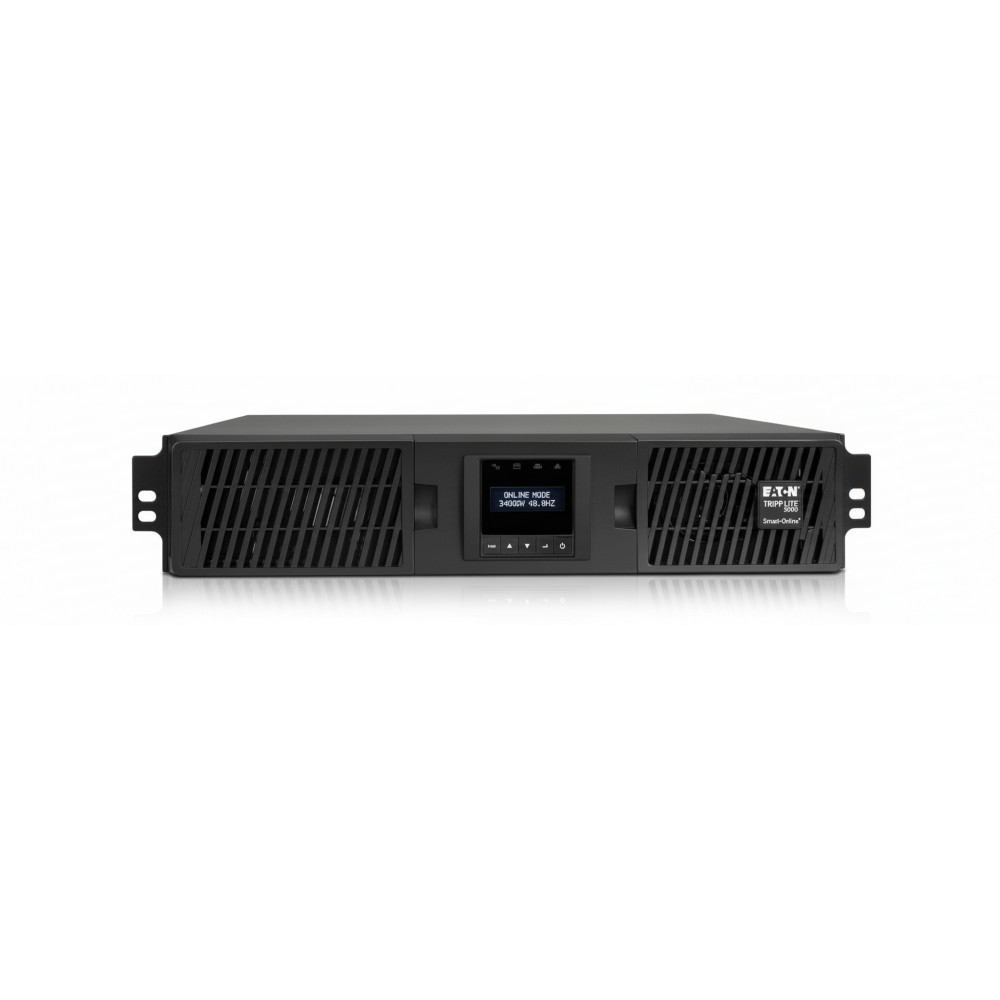

Eaton SU3000RTXLCD2UTAA - UPS 3000 VA 2700 W
Overview
The SU3000RTXLCD2UTAA is a 3000 VA / 2700 W online double-conversion uninterruptible power supply (UPS) engineered for sensitive IT, networking, and rack-mounted equipment requiring continuous conditioned AC power. IT engineers and infrastructure teams deploy it to eliminate transfer time during mains disturbances and maintain uptime long enough for orderly shutdowns or critical operations.
This UPS operates in true online/double-conversion mode, isolating load equipment from input power anomalies and providing a pure sine-wave output at nominal 120 V AC with a 0.9 power factor. Input connection is via NEMA L5-30P, and output comprises multiple NEMA receptacles supporting typical rack-mounted loads.
The unit fits a standard 2U rack space or can be deployed as a tower with included mounting kits. The front LCD display reports site and UPS status in real time, enhancing rapid diagnostics for data center racks, edge closets, or branch server rooms.
Communications include USB, RS-232 serial, RPO/ROO dry contacts, and an expansion slot for optional network management cards for remote monitoring and control. Runtime at half load supports several minutes for orderly system shutdown; extended runtime can be achieved with compatible battery packs.
The SU3000RTXLCD2UTAA is TAA compliant for U.S. federal procurement where applicable, and it includes integrated surge protection and internal bypass to maintain output under a range of grid conditions.
Key Features
• 3000 VA / 2700 W online double-conversion UPS
• Zero transfer time with pure sine-wave AC output
• (6) NEMA 5-20R + (1) NEMA L5-30R outlets
• LCD display for site and UPS status metrics
• USB + RS-232 + RPO/ROO ports; expansion slot
Technical Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SU3000RTXLCD2UTAA |
| Product Type | Online Double-Conversion UPS |
| VA Rating | 3000 VA |
| Output Power | 2700 W |
| Topology | Online/double-conversion |
| Output Voltage | 120 V AC nominal |
| Output Power Factor | 0.9 |
| Input Connection | NEMA L5-30P |
| Output Receptacles | (6) NEMA 5-20R, (1) NEMA L5-30R |
| Output Waveform | Pure sine wave |
| Rack Size | 2U rack/tower convertible |
| LCD Interface | Yes |
| Communication Ports | USB, RS-232, RPO/ROO dry contacts |
| Expansion Slot | 1 (network card option) |
| Runtime (Full Load) | ~4.8 min |
| Runtime (Half Load) | ~13.9 min |
| Battery Type | VRLA (service replaceable) |
| Operating Temp | 0 °C to 40 °C |
| Relative Humidity | 0-96 % non-condensing |
| Weight | ~63 lb |
| Dimensions (HxWxD) | 3.41 × 17.32 × 23.82 in |
