Detailed Specifications

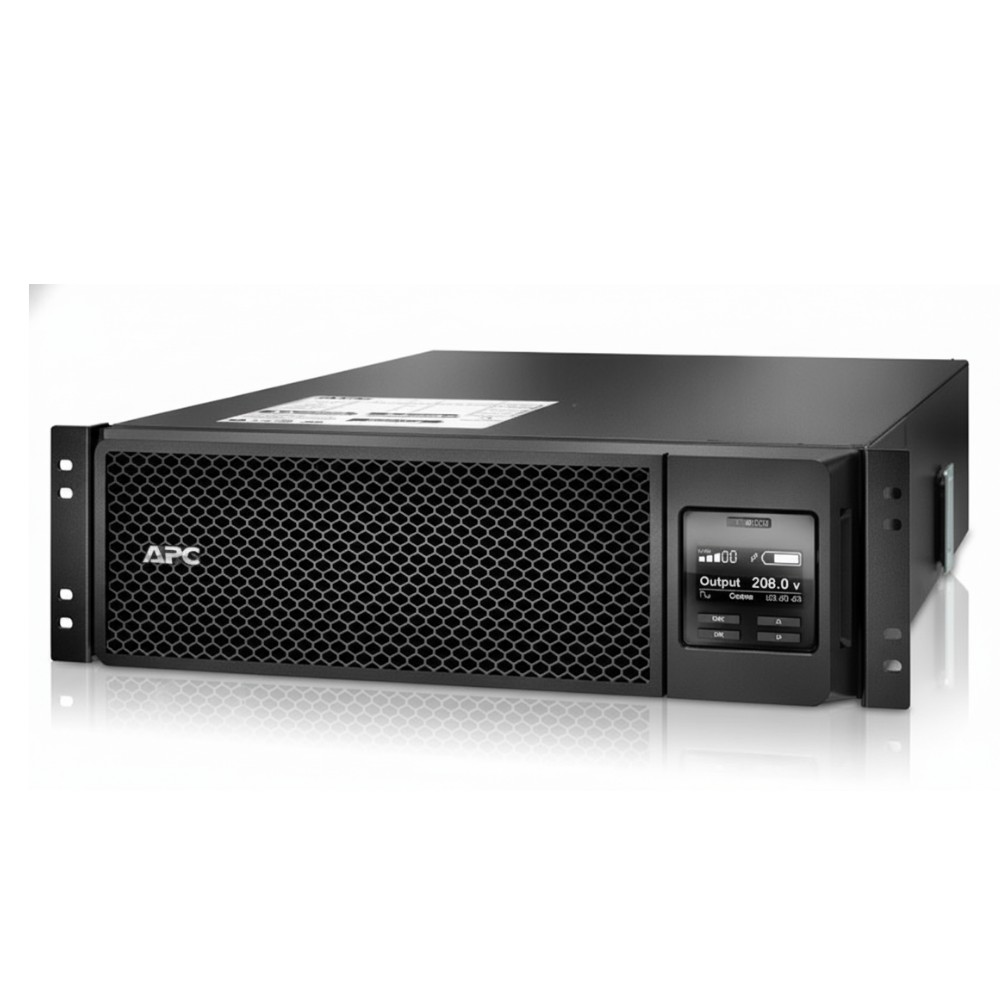

APC SRT5KRMXLT Smart UPS On Line 5000VA 4800W 208V Rackmount 3U UPS
LONG DESCRIPTION
The APC SRT5KRMXLT Smart-UPS On-Line is a 5000VA/4800W double-conversion online uninterruptible power supply designed for critical rack-mounted IT infrastructure operating in 208V environments.
This exact SRT5KRMXLT provides continuous power conditioning through double-conversion online technology and delivers pure sine wave output for servers, storage systems, network equipment, and other sensitive electronics. The output is rated at 208V and can be configured for 208-240V operation.
The 3U rackmount UPS uses a NEMA L6-30P input connection and provides two NEMA L6-20R and two NEMA L6-30R output receptacles. Its internal sealed lead-acid battery is hot-swappable, and the UPS supports external battery packs for additional runtime.
Built-in Ethernet, USB, and serial communications support remote monitoring and UPS management. The SRT5KRMXLT also includes a SmartSlot expansion slot and Emergency Power Off (EPO) support for integration into managed IT and data-center environments.
With approximately 3.8 minutes of runtime at full load and 10.5 minutes at half load, this rackmount Smart-UPS is designed for high-capacity enterprise power protection where dependable online power conditioning is required.
OVERVIEW
The APC SRT5KRMXLT is a 5000VA/4800W double-conversion online UPS with pure sine wave output, 208V operation, and a 3U rackmount chassis.
KEY FEATURES
- Exact APC model: SRT5KRMXLT
- 5000VA / 4800W power capacity
- Double-conversion online UPS topology
- Pure sine wave output
- 208V nominal input and output, configurable to 240V output
- 2 × NEMA L6-20R and 2 × NEMA L6-30R output receptacles
- NEMA L6-30P input connection
- Hot-swappable sealed lead-acid battery with external battery support
- Ethernet, USB, and serial communications with SmartSlot expansion
- 3U rackmount design for enterprise server and network infrastructure
SPECIFICATIONS
| SpecificationValue | |
|---|
| Brand | APC |
| Manufacturer | Schneider Electric |
| MPN | SRT5KRMXLT |
| Product Type | Online Double-Conversion Rackmount UPS |
| Model | SRT5KRMXLT |
| Rated Capacity | 5000 VA |
| Maximum Output Power | 4800 W |
| UPS Topology | Double Conversion Online |
| Nominal Input Voltage | 208 V AC |
| Input Voltage Range | 160-275 V |
| Nominal Output Voltage | 208 V AC, configurable to 240 V |
| Output Waveform | Pure Sine Wave |
| Input Connection | NEMA L6-30P |
| Output Connections | 2 × NEMA L6-20R; 2 × NEMA L6-30R |
| Battery Type | Sealed Lead-Acid, Hot-Swappable |
| External Battery Support | Yes |
| Full-Load Runtime | Approximately 3.8 minutes |
| Half-Load Runtime | Approximately 10.5 minutes |
| Battery Recharge Time | Approximately 1.5 hours |
| Communications | USB, Serial, Ethernet |
| Expansion Slot | 1 × SmartSlot |
| Emergency Power Off | Supported |
| Rack Height | 3U |
| Efficiency | Up to 94.5% |
| Surge Protection | 480 J |
| Operating Temperature | 32-104°F |
| Operating Humidity | Up to 95% non-condensing |
| Thermal Dissipation | Approximately 1047 BTU/hr |
| Product Dimensions | 5.1 × 17 × 28.3 in (H × W × D) |
| Product Weight | Approximately 123 lb |
| Shipping Dimensions | Not Verified |
| Shipping Weight | Not Verified |
| Warranty | 3 years on electronics |
