Detailed Specifications

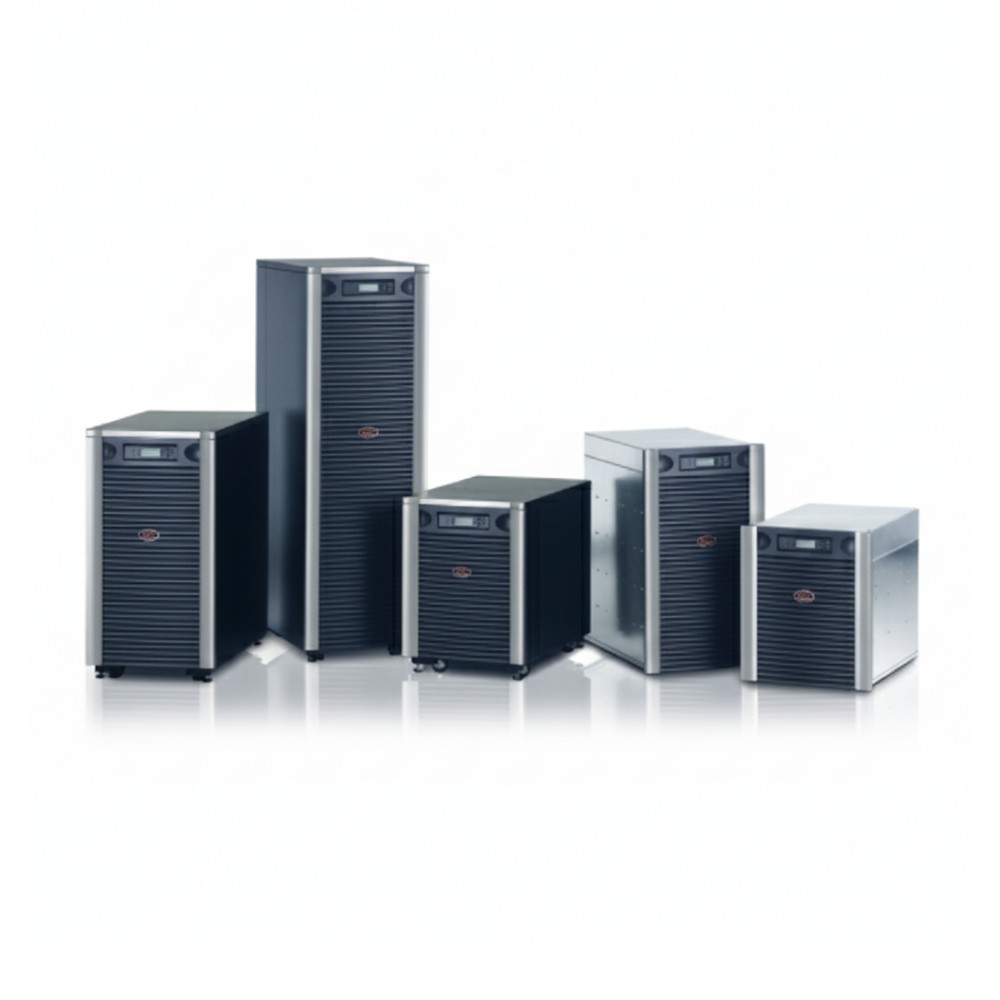

APC SYA8K16PXR - Symmetra LX Modular UPS (8 kVA → 16 kVA)
Overview
The APC Symmetra LX SYA8K16PXR is a modular double-conversion UPS starting at 8 kVA (6.4 kW) and field-scalable to 16 kVA with N+1 redundancy for critical enterprise loads. It supports hot-swap power and battery modules so you can expand or service without downtime. This unit is suitable for small data centers, telecom closets, or edge sites that require scalable backup, redundancy, and clean power. It integrates with APC's management ecosystem (SNMP, SmartSlot) for remote monitoring and control.
Key Features
Modular, plug-in power modules allow scaling from 8 kVA to 16 kVA in N+1 configuration
Hot-swappable battery and power modules reduce MTTR and enable servicing under load
Configurable output voltages (120/208 or 120/240) adapt to different load requirements
Redundant intelligence and management (SmartSlot, SNMP) allow remote monitoring and control
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC / Schneider Electric |
| Part Number | SYA8K16PXR |
| Product Type | Modular Double-Conversion Online UPS |
| Key Spec 1 | Base capacity: 8 kVA (6.4 kW) |
| Key Spec 2 | Scalable to: 16 kVA (12.8 kW) with N+1 design |
| Key Spec 3 | Hot-swappable modules (power & battery) |
| Management | SmartSlot, SNMP, LCD console, EPO |
| Power Requirements | Input: 208 V AC 1-phase, 45-65 Hz; Hard-wired 4-wire |
| Dimensions & Weight | 1516 × 483 × 726 mm (59.7″ × 19″ × 28.6″); net weight ~473.6 kg |
