Detailed Specifications

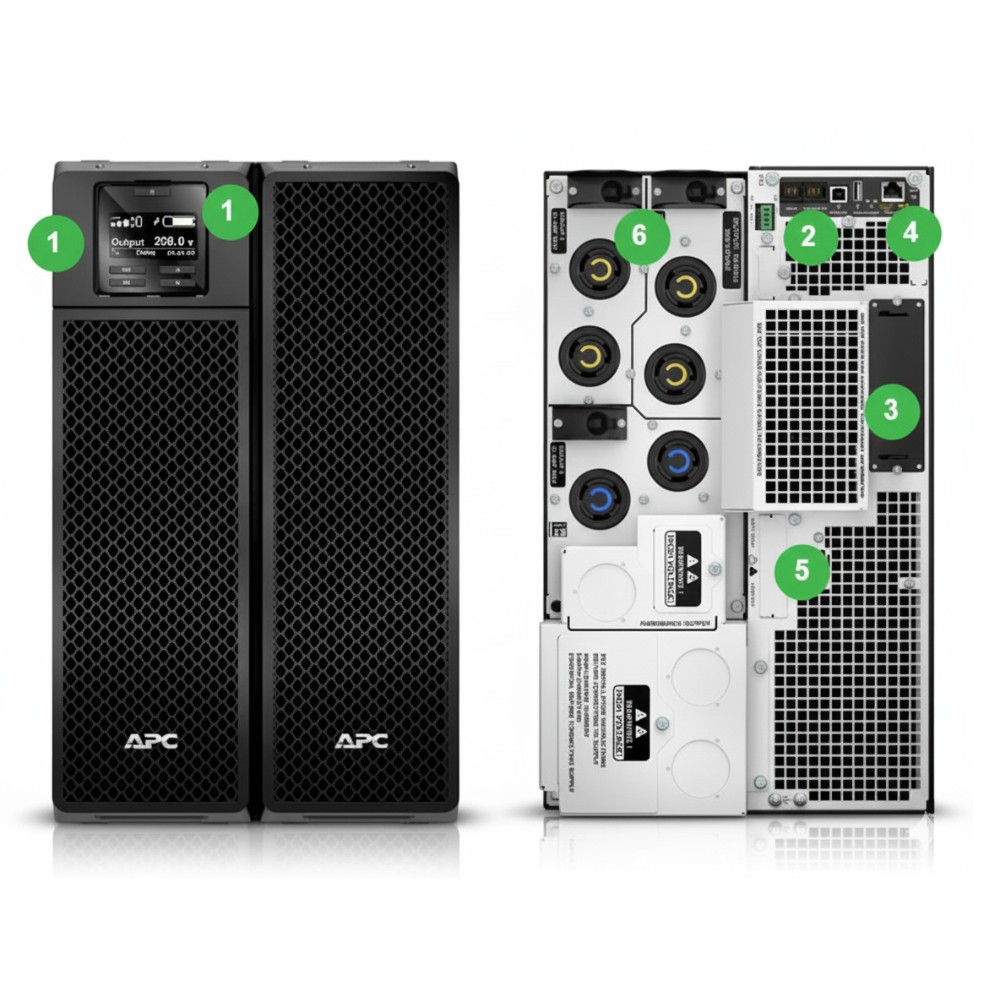

APC SRT8KXLT-5KTF Smart-UPS On-Line (8 kVA) with Integrated Transformer
Overview :
The APC SRT8KXLT-5KTF is an 8 kVA / 8 kW double-conversion on-line UPS featuring an internal step-down transformer to deliver 120 V output from 208/240 V input. This configuration supports mixed-voltage IT environments, allowing both high-voltage and standard-voltage loads without external transformers. It provides continuous, clean, and isolated power with zero transfer time and supports extended runtime through external battery cabinets. Ideal for rack or tower installations in enterprise data centers, network closets, and edge computing setups requiring consistent uptime and voltage flexibility.
Key Features :
Integrated 208/240 V to 120 V step-down transformer
8 kVA / 8 kW true double-conversion operation
Rack/tower convertible design with 6U chassis
Automatic and manual bypass support
Technical Specifications :
| Attribute | Specification |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | SRT8KXLT-5KTF |
| Product Type | On-Line UPS with Internal Transformer |
| Rated Capacity | 8 kVA / 8 kW |
| Input Voltage Range | 208 V / 240 V nominal |
| Output Voltage | 120 V (via internal transformer) |
| Topology | Double-conversion (on-line) |
| Bypass Modes | Automatic and manual bypass |
| Battery Expandability | Supports external battery cabinets |
| Input Frequency Range | 40-70 Hz auto-sensing |
| Output Waveform | Pure sine wave |
| Form Factor | 6U rack/tower convertible |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -15 °C to 45 °C |
| Humidity (Operating) | 0 - 95% non-condensing |
| Warranty | 3-year repair or replace |
