Detailed Specifications

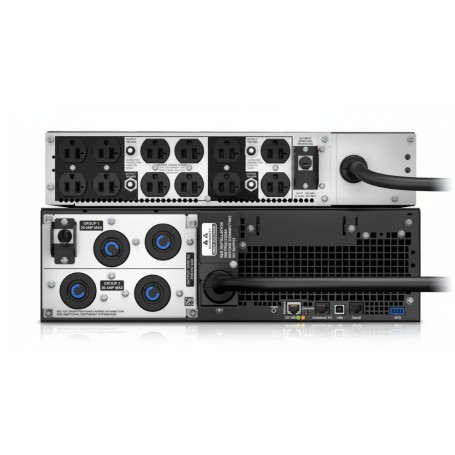

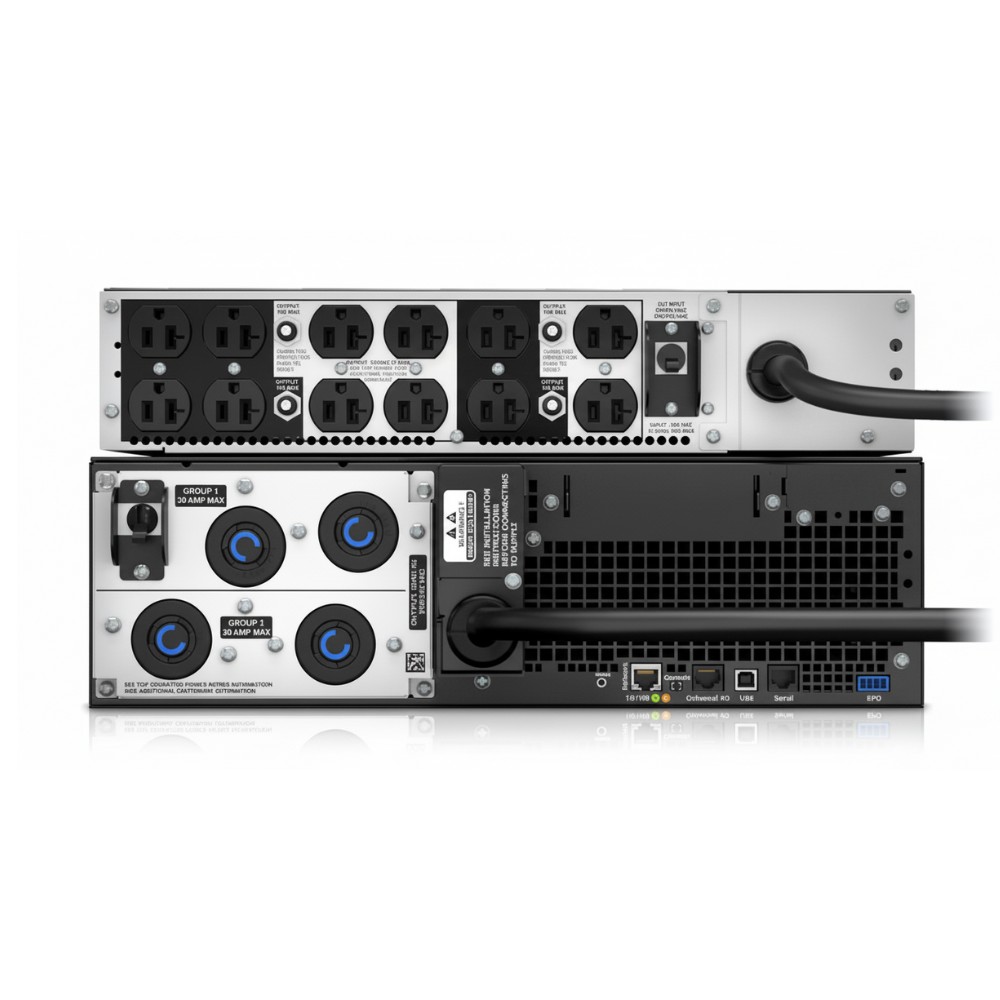

APC SRT5KXLT-5KTF Smart-UPS On-Line (5 kVA) with Transforming Capability
Overview :
The APC SRT5KXLT-5KTF is a rack/tower convertible, 5 kVA / 4.8 kW double-conversion on-line UPS that incorporates an internal step-down transformer to convert 208/240 V input to 120 V output. It ensures seamless and clean power delivery to mixed-voltage environments without requiring external transformers. The UPS delivers continuous, filtered power to servers, networking gear, and sensitive loads by isolating and conditioning the supply. It supports expanded battery runtime via external battery cabinets, making it suitable for data centers, network closets, and critical edge installations.
Key Features :
Internal transformer for 208/240 V → 120 V output
Double-conversion on-line topology, zero transfer time
Rack/tower convertible form factor (4U)
Automatic and manual bypass functionality
Specifications :
| Attribute | Specification |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | SRT5KXLT-5KTF |
| Product Type | On-Line UPS with Integrated Step-Down Transformer |
| Rated Capacity | 5 kVA / 4.8 kW |
| Input Voltage Range | 208 V nominal (also supports 240 V) |
| Output Voltage | 120 V via internal transformer |
| Topology | Double-conversion (on-line) |
| Bypass Modes | Automatic bypass and manual maintenance bypass |
| Battery Expandability | Supports external battery cabinets |
| Input Frequency Range | 40-70 Hz (auto-sensing) |
| Efficiency | High-efficiency mode supported (based on SRT line norms) |
| Output Waveform | Pure sine wave (consistent with on-line models) |
| Form Factor | 4U rack-mountable; convertible to tower mode |
| Dimensions (H × W × D) | 6.9 × 17.1 × 26.9 in (≈ 175 × 435 × 683 mm) |
| Net Weight | ~ 192 lb (≈ 87 kg) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -15 °C to 45 °C |
| Humidity (Operating) | 0 - 95% non-condensing |
| Warranty | Standard APC warranty terms |
