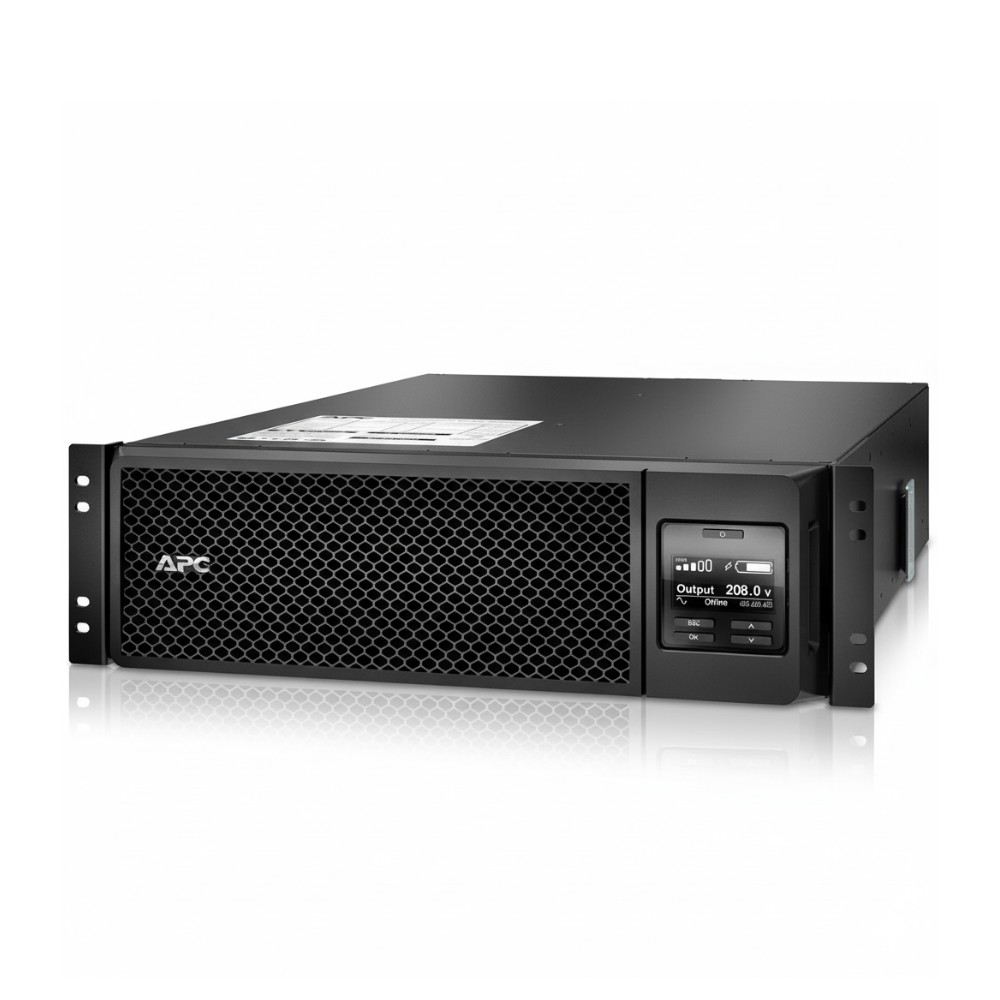

APC SRT5KRMXLT-5KTF Smart-UPS On-Line (5 kVA) with Integrated Transformer View larger

APC SRT5KRMXLT-5KTF Smart-UPS On-Line (5 kVA) with Integrated Transformer

SRT5KRMXLT-5KTF

New

In Stock

5 kVA On-Line Rack UPS with Step-Down Transformer
×




$6,845.00

Detailed Specifications

APC SRT5KRMXLT-5KTF Smart-UPS On-Line (5 kVA) with Integrated Transformer

Overview :

The APC SRT5KRMXLT-5KTF is a 5 kVA / 4.5 kW double-conversion on-line rack-mount UPS with a built-in step-down transformer for 208/240 V to 120 V conversion. It provides high-availability power protection for critical equipment where mixed-voltage loads are present, eliminating the need for an external transformer. This UPS delivers clean, conditioned power with zero transfer time, maintaining uptime during voltage fluctuations or outages. It is designed for server rooms, network closets, and edge environments where space, reliability, and voltage flexibility are essential.

Key Features :

  • Built-in 5 kVA transformer (208/240 V → 120 V)

  • True double-conversion on-line operation

  • Rack/tower convertible form factor

  • Automatic and manual bypass for maintenance

Specifications :

AttributeSpecification
Brand APC (Schneider Electric)
Part Number SRT5KRMXLT-5KTF
Product Type Rack/Tower On-Line UPS with Transformer
Rated Capacity 5 kVA / 4.5 kW
Input Voltage 208 V / 240 V
Output Voltage 120 V (via integrated step-down transformer)
Input Frequency Range 40 Hz – 70 Hz (auto-sensing)
Input Connection Hardwired 3-wire (2 hot + ground)
Output Connections Mix of NEMA 5-20R, L6-20R, L6-30R, and L14-30R outlets
Topology Double-conversion on-line
Bypass Modes Automatic and maintenance bypass
Battery Management Intelligent, temperature-compensated charging
Battery Expandability Supports external battery packs
Mounting Type 4U rack / tower convertible
Dimensions (H × W × D) 6.8 × 17 × 26.9 in (173 × 432 × 683 mm)
Net Weight 216 lb (98 kg)
Operating Temperature 0 °C – 40 °C
Humidity Range 0 – 95 % non-condensing
Warranty 3-year repair or replace
