Detailed Specifications

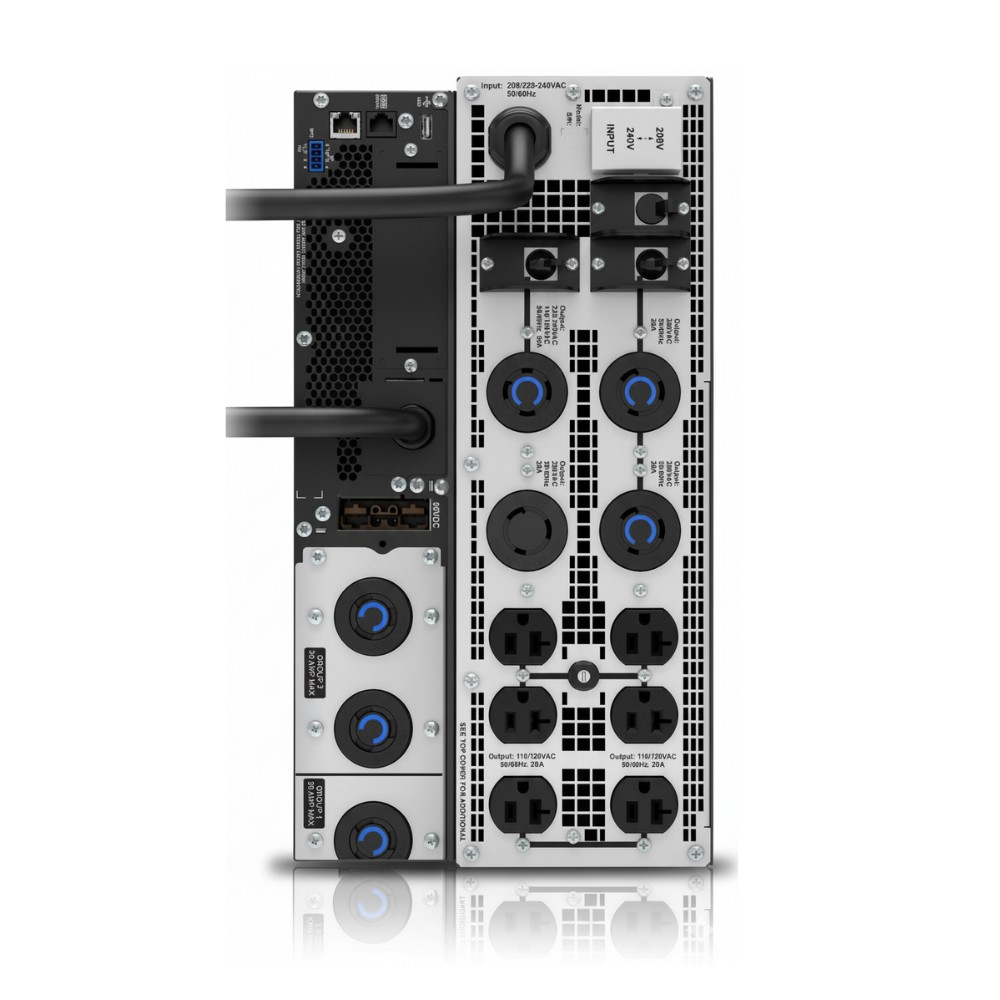

APC SRT3000XLT-5KTF Smart-UPS On-Line With Integrated Transformer
Overview :
The APC SRT3000XLT-5KTF is a 3 kVA (3,000 VA / 2,700 W) double-conversion on-line UPS, intended for environments requiring both uninterruptible power and mixed-voltage support. It integrates a built-in step-down transformer allowing down-conversion from 208 V to 120 V, which is particularly useful when powering legacy 120 V loads from a 208 V supply. The UPS provides continuous, clean power to critical devices and protects against disturbances such as surges, sags, and frequency variation. Its design suits edge, server room, or network closet deployments where compact footprint and voltage compatibility are required.
Key Features :
Double-conversion on-line topology for full isolation
Internal step-down transformer (208 V → 120 V)
3 kVA / 2.7 kW rated output
Supports external battery packs for extended runtime
Technical Specifications :
| Attribute | Specification |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | SRT3000XLT-5KTF |
| Product Type | On-Line UPS with Step-Down Transformer |
| Rated Capacity | 3 kVA / 2.7 kW |
| Input Voltage | 208 V (configurable) |
| Output Voltage | 120 V (via internal transformer) |
| Topology | Double-conversion (on-line) |
| Bypass Features | Automatic and maintenance bypass |
| Battery Compatibility | Internal and external battery pack expansion |
| Input Frequency Range | 40-70 Hz |
| Output Protection | Surge and spike protection |
| Output Waveform | Pure sine wave |
| Efficiency (at load) | Typical for on-line UPS (varies) |
| Dimensions (W × D × H) | × (not publicly confirmed) |
| Weight (Net) | × (not publicly confirmed) |
