Detailed Specifications

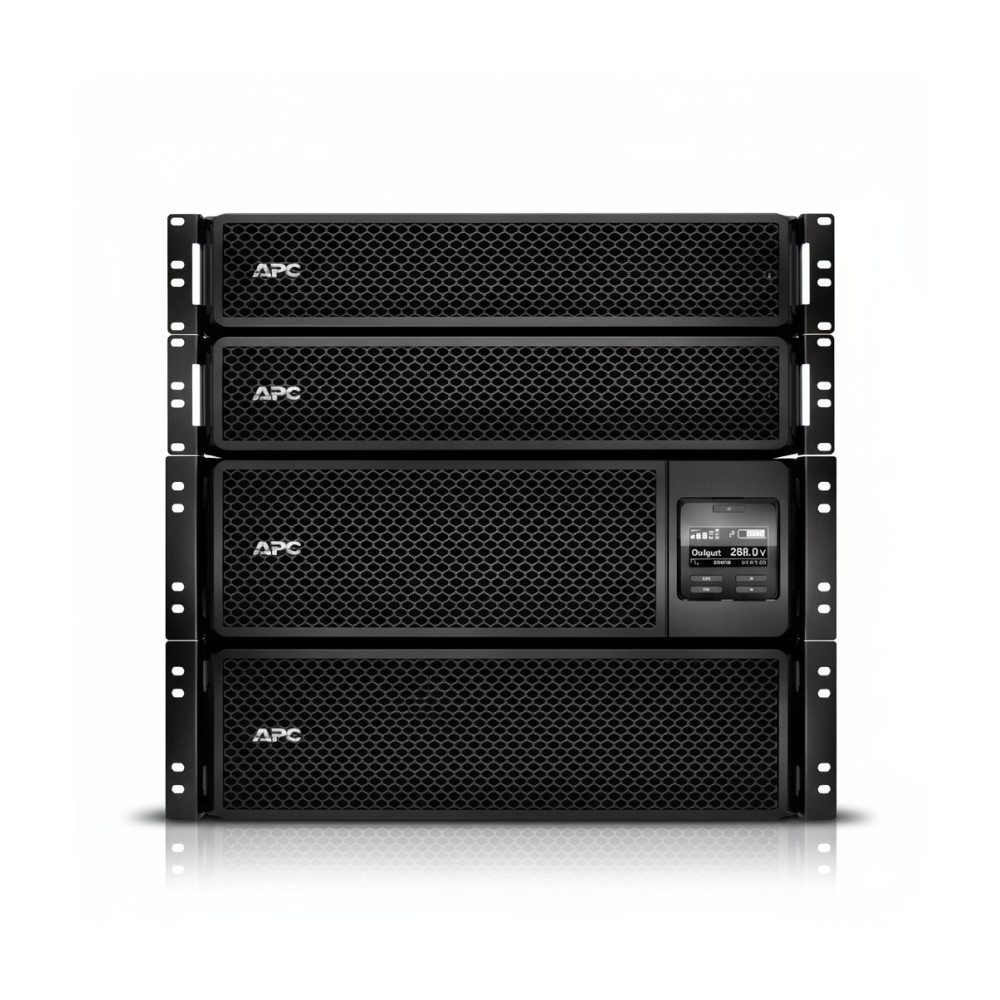

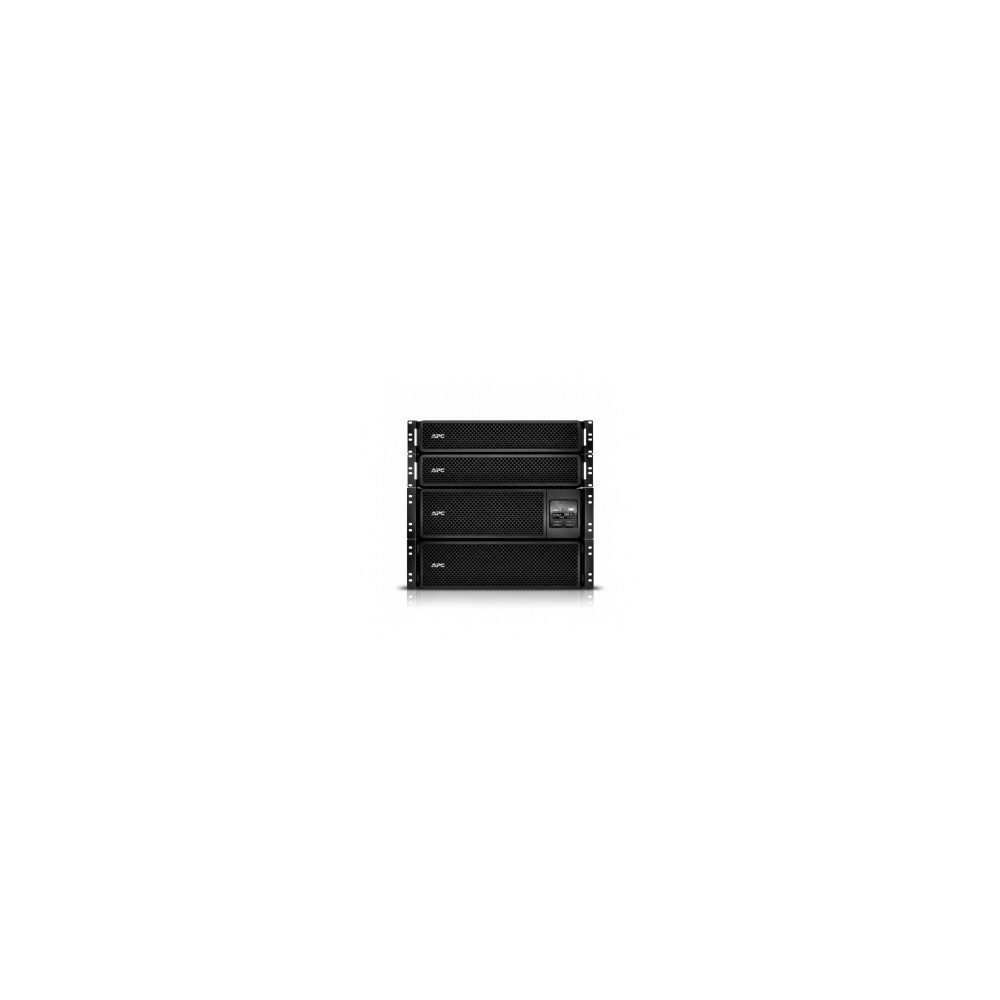

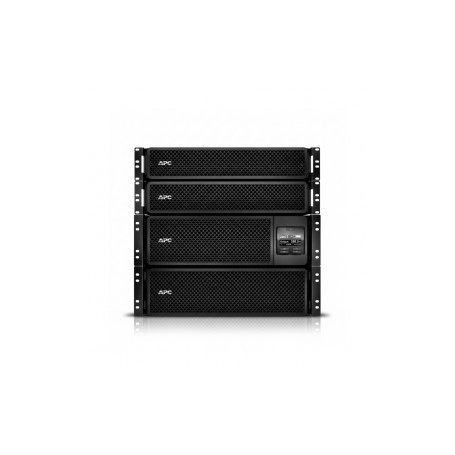

APC SRT10KXLT-5KTF2 Smart-UPS On-Line with Built-In Transformers
Overview :
The APC SRT10KXLT-5KTF2 is a 10 kVA / 10 kW double-conversion, on-line tower UPS designed for critical infrastructure deployment. It features two internal 5 kVA step-down transformers to convert 208/240 V to 120 V, simplifying mixed-voltage load distribution and reducing need for external transformers. The UPS delivers clean, continuous power to servers, networking equipment, and storage systems, filtering out disturbances and sustaining operation during mains failure. Designed for data centers, network rooms, and edge sites, it includes internal bypass, diagnostics, and advanced battery management.
Key Features :
Dual internal 5 kVA step-down transformers (208/240 V → 120 V)
True on-line, double conversion topology
16 NEMA 5-20R + mixed higher-current outlets (L6-20, L6-30, L14-30)
Integrated network management via NMC + SmartSlot
Internal automatic and maintenance bypass
Technical Specifications :
| Attribute | Specification |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | SRT10KXLT-5KTF2 |
| Product Type | Tower On-Line UPS with Step-Down Transformers |
| Rated Capacity | 10 kVA / 10 kW |
| Input Voltage | 208 V / 240 V |
| Input Frequency Range | 40-70 Hz (auto-sensing) |
| Input Connection | Hardwired 3-wire (2 phases + ground) |
| Output Voltage | 208 V / 240 V + 120 V via internal transformers |
| Outlets | 16 × NEMA 5-20R, 4 × L6-20R, 6 × L6-30R, 2 × L14-30R |
| Topology | Double-conversion on-line |
| Bypass Modes | Automatic and manual internal bypass |
| Battery Management | Intelligent, temperature-compensated charging |
| Runtime Expandability | Supports external battery packs |
| Monitoring / Control | Network Management Card + SmartSlot |
| Dimensions (W × D × H) | 20.6 in × 28.1 in × 17.0 in (≈ 523 mm × 714 mm × 432 mm) |
| Weight (Net) | ≈ 518 lb (≈ 235 kg) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -15 °C to 45 °C |
| Humidity (Operating) | 0 - 95% non-condensing |
| Warranty | Standard APC warranty terms |
