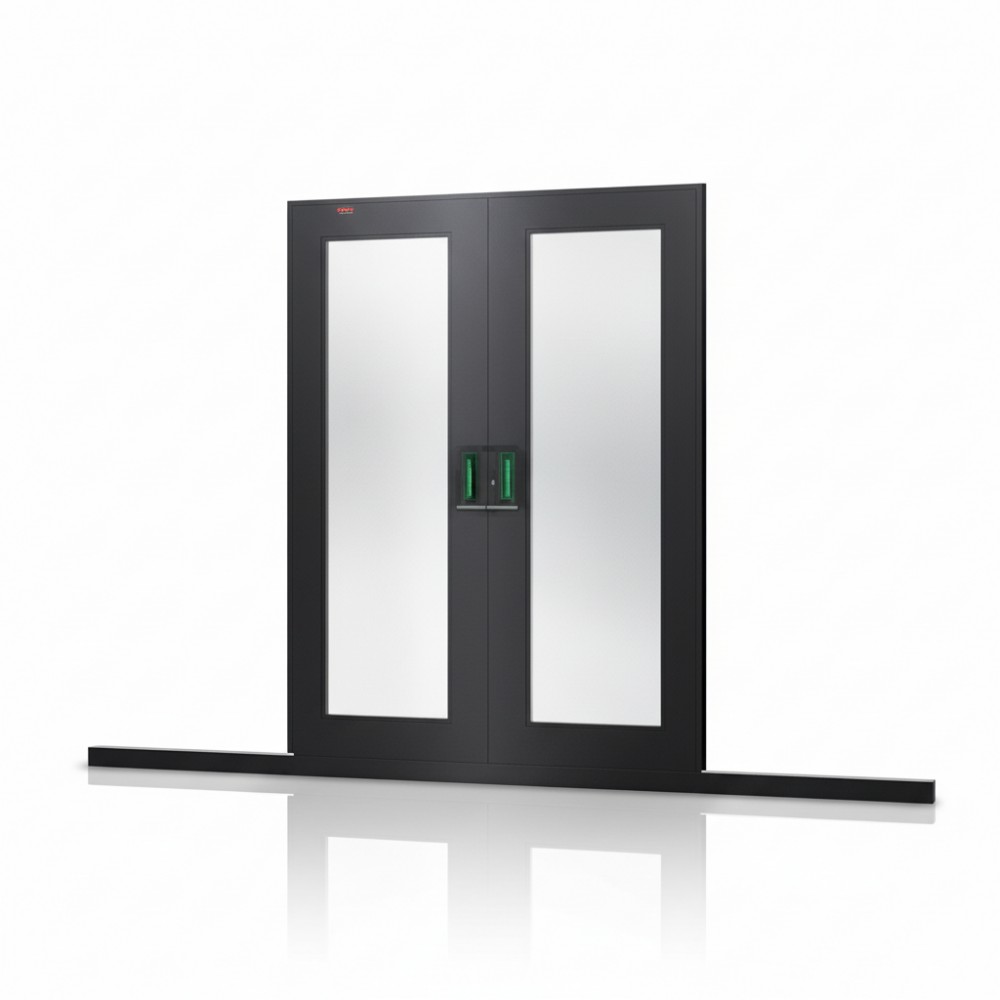

APC ACDC2400 Sliding Aisle Containment Door View larger

APC ACDC2400 Sliding Aisle Containment Door

ACDC2400

New

APC ACDC2400 is a 2 m-wide sliding door designed for NetShelter containment systems,
×




Detailed Specifications

APC ACDC2400 Sliding Aisle Containment Door

Overview

The APC ACDC2400 is a sliding containment door used in NetShelter / EcoAisle containment systems to separate hot and cold aisles in data centers. It solves the challenge of maintaining a sealed aisle while providing access for personnel and equipment. With a break-away emergency sliding mechanism, it ensures safe exit under adverse conditions. It’s most suitable for row-level containment in data centers where space efficiency and thermal management are critical — for example, in a hot-aisle containment deployment. Compatible with other NetShelter aisle panels and containment frames, it integrates into existing containment architecture.

Key Features

  • Safe slide door: emergency break-away design allows quick egress under pressure.

  • Integrated LED lighting: high-efficiency LEDs with motion sensors for aisle illumination.

  • Fire-safe design: temperature-triggered drop ceiling panels support fire suppression systems.

  • RoHS-compliant and modular: supports scalable containment build-out by aisle width and rack height.

Technical Specifications

SpecificationDetail
Brand APC (Schneider Electric)
Part Number ACDC2400
Product Type Aisle Containment Sliding Door
Key Spec — Width 2019 mm
Key Spec — Depth 2911 mm
Key Spec — Weight 66.4 kg
Management None (mechanical / passive)
Power Requirements None (no active power)
Dimensions Height: 129 mm; Width: 2019 mm; Depth (max): 2911 mm
Operating Environment Data center aisle containment systems
Compliance RoHS compliant
