Overview

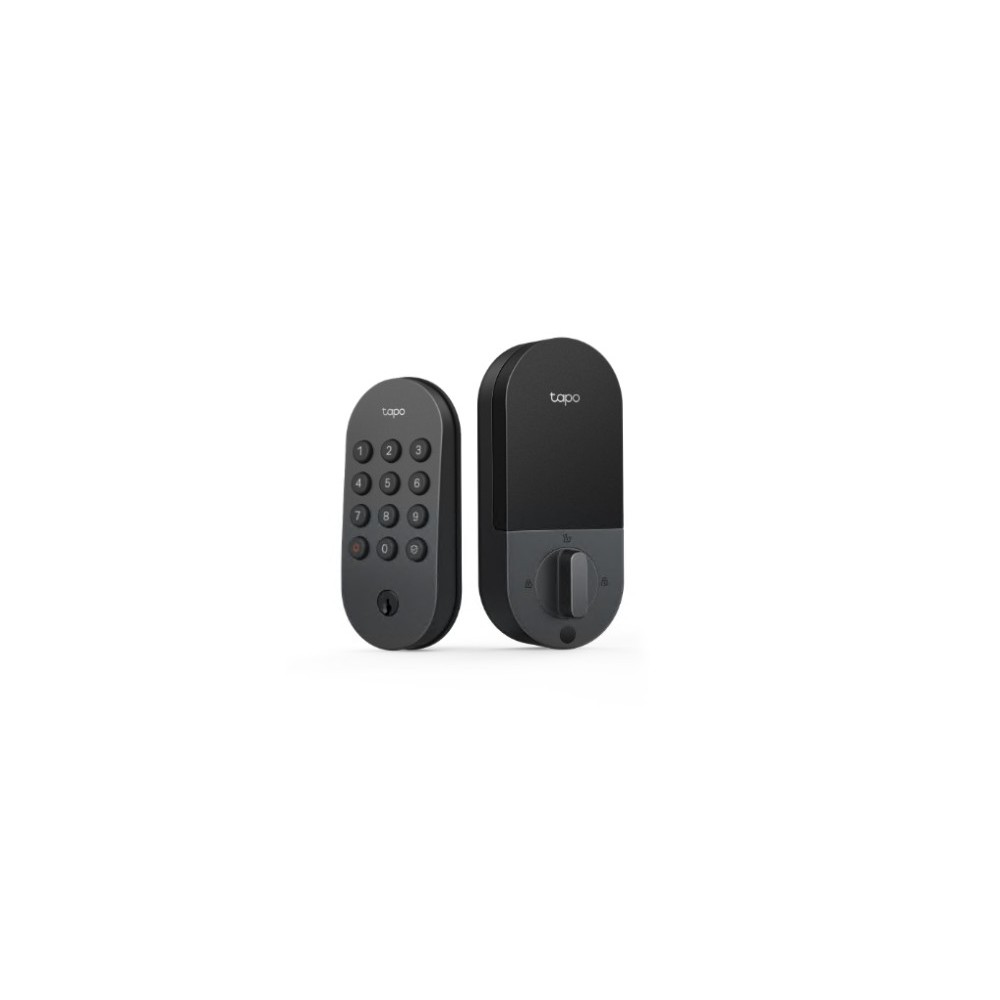

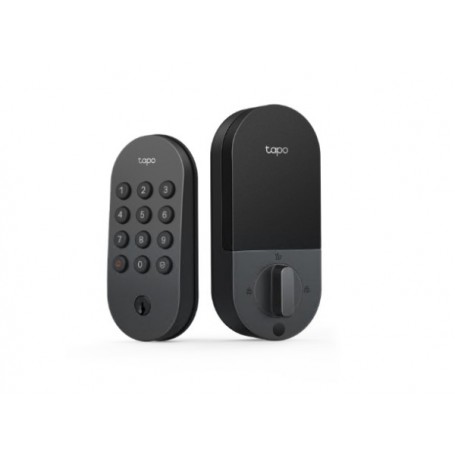

The TP-Link Tapo DL100 is a smart Wi-Fi deadbolt door lock designed for compatible standard deadbolt installations. It provides multiple access methods, including keypad, Bluetooth, Tapo App, voice commands, and mechanical keys. The lock supports up to 200 customizable access codes and provides remote lock control, status monitoring, activity logs, and alerts through the Tapo App.
Access and Security
The DL100 supports permanent, one-time, and scheduled access codes for controlled entry. Its keypad is backlit and supports PIN masking with random digits. A PIN attempt limiter helps restrict access after repeated incorrect attempts. Two mechanical keys provide a physical backup access method.
Smart Connectivity
The lock connects to 2.4 GHz Wi-Fi and Bluetooth 5.0. Through the Tapo App, users can remotely check the lock status and control the lock when connected to the internet. The DL100 also supports Google Assistant, Amazon Alexa, and Samsung SmartThings. Voice unlocking requires PIN verification.
Power and Installation
The DL100 operates using four AA/LR6 batteries. TP-Link specifies up to 7 months of battery life in Wi-Fi mode or up to 10 months in Bluetooth-only mode under its stated test conditions. A USB-C port provides emergency power when the main batteries are depleted.
Key Features
- Supports up to 200 customizable access codes
- Keypad, Bluetooth, Tapo App, voice command, and mechanical-key access
- 2.4 GHz Wi-Fi and Bluetooth 5.0 connectivity
- Configurable automatic locking and activity logs
- IP54-rated exterior assembly with USB-C emergency power
Compatibility
The DL100 is designed for compatible standard deadbolt configurations. Door and existing lock dimensions should be checked against the manufacturer's installation requirements before purchase. The connected smart functions require compatible Wi-Fi networking and the Tapo App.
Applications
- Residential entry doors
- Smart home access control
- Remote door access management
- Scheduled access for family members or guests
DC Supplies Product Note
Confirm the existing deadbolt and door dimensions before installation because physical compatibility depends on the door and lock configuration. The DL100 uses four AA/LR6 batteries and includes USB-C emergency power for situations where the primary batteries are depleted.
Specifications
| Brand | TP-Link |
|---|
| Part Number / MPN | Tapo DL100 |
|---|
| Product Type | Smart Wi-Fi Door Lock |
|---|
| Maximum Access Codes | 200 |
|---|
| Access Methods | Keypad, Bluetooth, Tapo App, voice command, mechanical key |
|---|
| Automatic Locking | Yes |
|---|
| Wi-Fi | IEEE 802.11b/g/n, 2.4 GHz |
|---|
| Bluetooth | Bluetooth 5.0 |
|---|
| Security | 128-bit AES with SSL/TLS; WPA/WPA2-PSK/WPA3 |
|---|
| Power Source | 4 × AA/LR6 batteries |
|---|
| Emergency Power | USB-C |
|---|
| Battery Life | Up to 7 months Wi-Fi mode / 10 months Bluetooth mode |
|---|
| Weather Resistance | IP54, exterior assembly |
|---|
| Smart Home Integration | Amazon Alexa, Google Assistant, Samsung SmartThings |
|---|
| Operating Temperature | -30°C to 70°C, exterior assembly |
|---|
| Operating Humidity | 10%–90% RH, non-condensing |
|---|
| Exterior Assembly Dimensions | 5.88 × 2.65 × 2.20 in |
|---|
| Interior Assembly Dimensions | 6.57 × 2.85 × 1.81 in |
|---|
Frequently Asked Questions
How many access codes does the Tapo DL100 support?
The DL100 supports up to 200 customizable access codes, including permanent, one-time, and scheduled codes.
Can the Tapo DL100 be controlled remotely?
Yes. When connected to Wi-Fi and the internet, the Tapo App can be used to remotely check the lock status and control the lock.
What batteries does the Tapo DL100 use?
The lock uses four AA/LR6 batteries.
Does the Tapo DL100 have emergency power?
Yes. The exterior assembly includes a USB-C port for emergency power when the primary batteries are depleted.
Does the DL100 support voice assistants?
Yes. It supports Amazon Alexa, Google Assistant, and Samsung SmartThings. Voice unlocking requires PIN verification.
