Overview

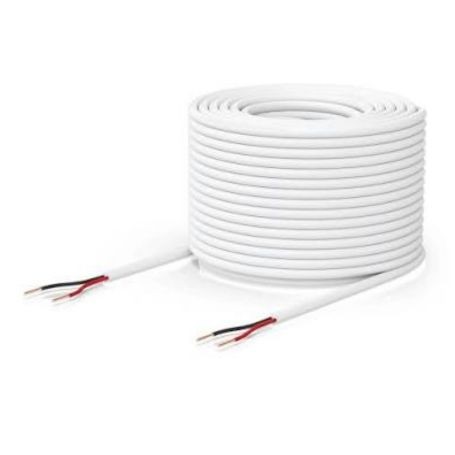

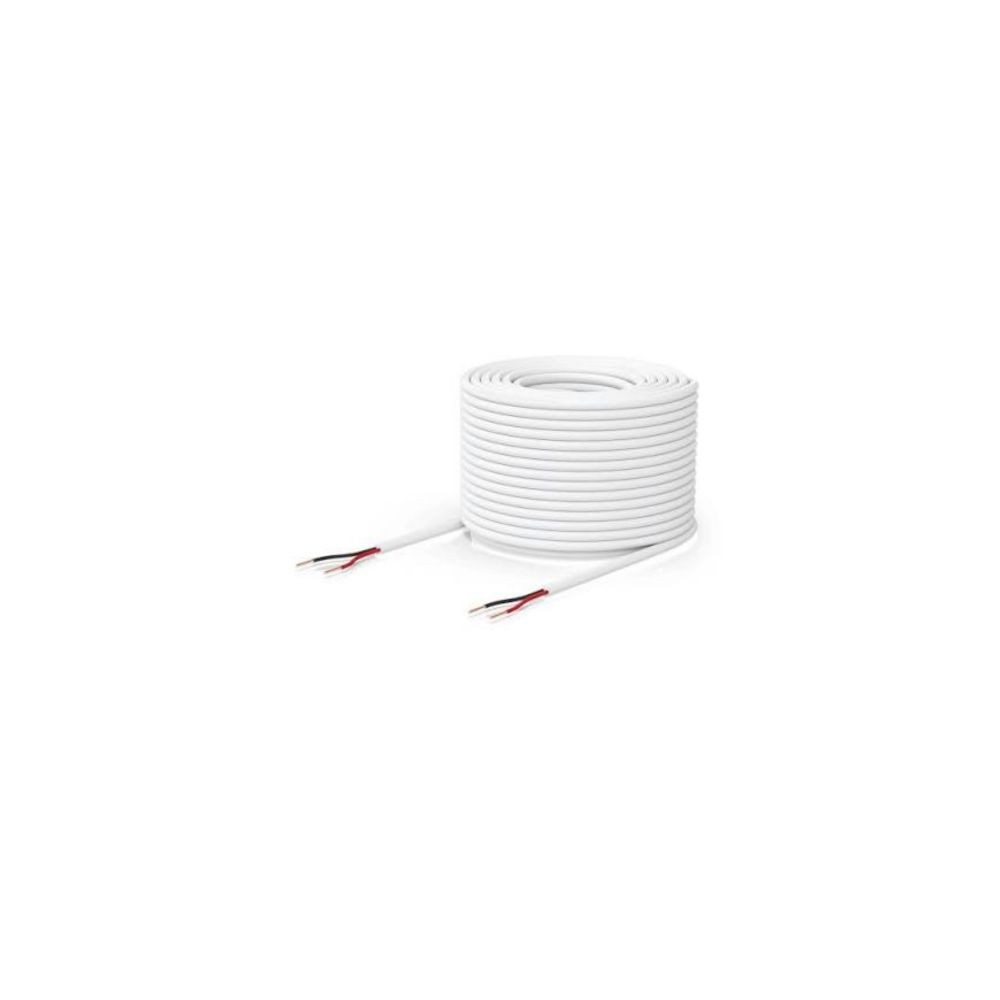

The Ubiquiti UACC-Cable-DoorLockRelay-1P is a 500-foot (152.4 m) spool of 1-pair low-voltage cable designed to connect an electric or magnetic door lock to a UniFi Access Hub. It contains two 18 AWG solid bare copper conductors and is intended for relay-powered door access wiring.
Technical Information
The 1-pair configuration uses black and red 18 AWG conductors with a thermoplastic elastomer (TPE) outer jacket and semi-rigid PVC insulation. Ubiquiti specifies a supported voltage range of 36V DC and a current rating of 2A for the 500-foot cable length.
Construction
The cable has a 4.2 mm outer diameter and a minimum bend radius of 33 mm. Its solid copper construction provides a dedicated two-conductor path for low-voltage relay connections, while the white TPE jacket provides a compact cable format for access-control installations.
Key Features
- 500ft (152.4m) cable spool
- 1-pair configuration with two 18 AWG conductors
- Solid bare copper conductors
- 36V DC supported voltage range
- VW-1 flame-rated construction
Applications
This cable is designed for connecting compatible electric or magnetic locks to UniFi Access Hubs. It is suitable for access-control installations where a dedicated two-conductor relay cable is required between the hub and door lock.
Compatibility
The 1-pair version is intended specifically for the door-lock connection. Ubiquiti's 2-pair version adds a separate pair for a door position sensor, while this 1-pair model provides two 18 AWG conductors for the electric or magnetic lock connection.
DC Supplies Product Note
Choose the 1-pair version when the installation requires wiring for the lock only. If the same cable run also needs dedicated conductors for a door position sensor, the 2-pair Door Lock Relay Cable is the corresponding Ubiquiti configuration.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-Cable-DoorLockRelay-1P |
|---|
| Product Type | Door Lock Relay Cable |
|---|
| Product Family | UniFi Door Lock Relay Cable |
|---|
| Cable Length | 152.4 m (500 ft) |
|---|
| Configuration | 1 pair / 2 conductors |
|---|
| Conductor Type | Solid bare copper |
|---|
| Conductor Wire Gauge | 18 AWG |
|---|
| Conductor Insulation Colours | Black / Red |
|---|
| Current Rating | 2A at 500 ft length |
|---|
| Supported Voltage Range | 36V DC |
|---|
| Conductor DCR | 23.2 ohm/km |
|---|
| Jacket Material | Thermoplastic elastomer (TPE) |
|---|
| Insulation Material | Semi-rigid polyvinyl chloride (SR-PVC) |
|---|
| Jacket Colour | White |
|---|
| Jacket Outer Diameter | 4.2 mm (0.17 in) |
|---|
| Minimum Bend Radius | 33 mm (1.3 in) |
|---|
| Pulling Tension | 16.4 kgf |
|---|
| Flame Rating | VW-1 |
|---|
| Ambient Operating Temperature | -45 to 65°C (-49 to 149°F) |
|---|
| Ambient Storage Temperature | -45 to 65°C (-49 to 149°F) |
|---|
| Weight | 4.58 kg (10.1 lb) |
|---|
FAQs
What is the UACC-Cable-DoorLockRelay-1P used for?
It is used to connect a compatible electric or magnetic door lock to a UniFi Access Hub.
How long is the cable?
The cable is supplied as a 152.4 m (500 ft) spool.
How many conductors does the 1P version have?
The 1P version has two conductors forming one pair, both using 18 AWG solid bare copper.
What is the difference between the 1P and 2P versions?
The 1P version provides two 18 AWG conductors for a door lock. The 2P version adds a second pair of 22 AWG conductors intended for a door position sensor.
What voltage range is supported?
Ubiquiti specifies a supported voltage range of 36V DC for the cable.
