Overview

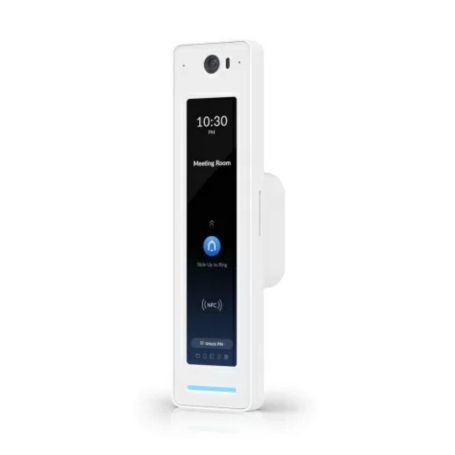

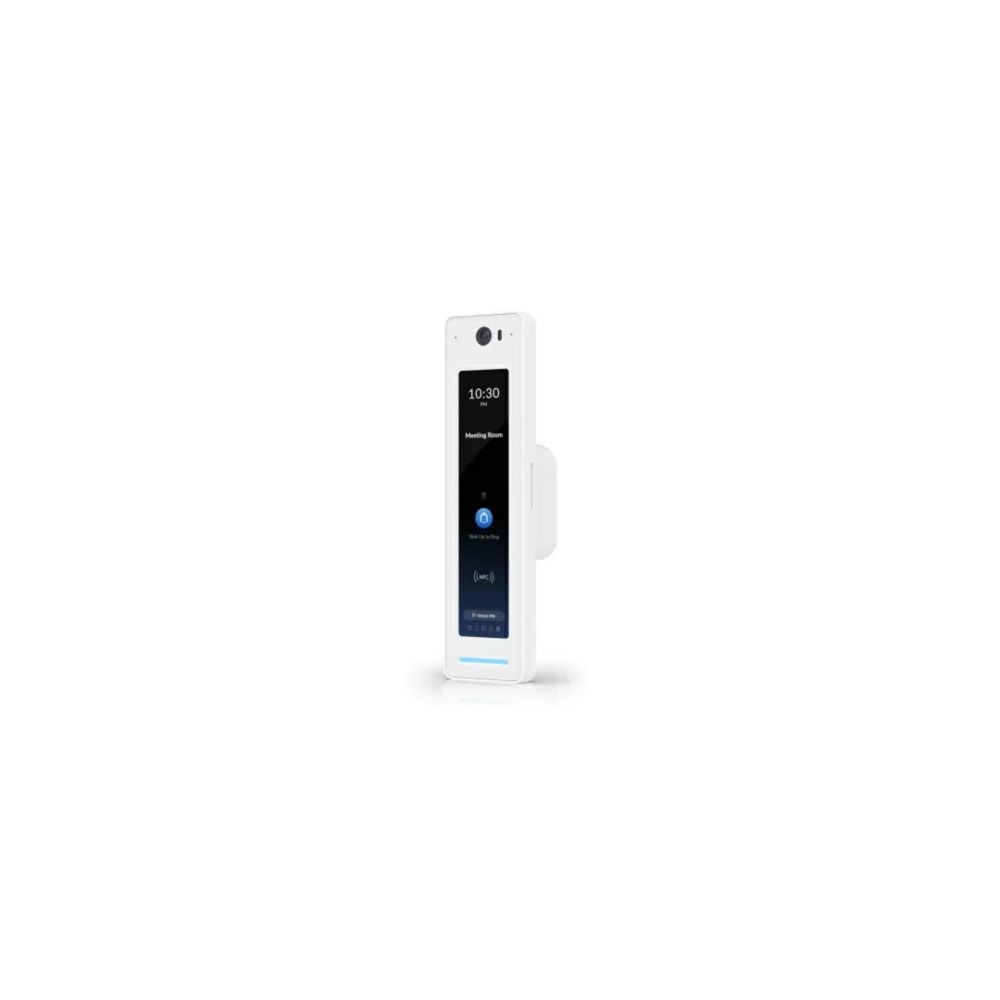

The Ubiquiti UVC-G6-Entry is a UniFi G6 Entry intelligent door entry system combining a 5MP camera, access-control features, NFC connectivity, and two-way audio in a compact wall-mountable enclosure. It integrates natively with UniFi Protect and UniFi Access.
Camera and Video
The main camera uses a 5MP CMOS sensor with a 1920 × 2560 resolution and a maximum frame rate of 30 FPS. Its field of view is 100° horizontal, 135° vertical, and 180° diagonal. Built-in IR illumination and an IR cut filter provide night vision up to 5 m (16 ft).
Access and Entry Features
The G6 Entry supports Face Recognition, NFC card and keyfob access, Apple Wallet and Google Wallet, mobile unlock, and Face Unlock. An Access Hub is required to enable door-access functions such as NFC, Face ID, and Interface Designer configuration, and both UniFi Protect and UniFi Access applications must be installed for those access features.
Audio and Communication
The device provides two-way audio through its integrated microphone and speaker. It also supports two-way intercom and doorbell access, allowing the unit to function as an entry communication terminal as well as a camera and access interface.
Networking and Power
The UVC-G6-Entry provides one Gigabit Ethernet RJ45 interface and supports BLE 4.1 and NFC connectivity. Power is supplied through PoE+ with a supported voltage range of 42–57V DC and maximum power consumption of 16W.
Installation and Protection
The G6 Entry supports wall mounting and gangbox mounting, with a 20° wedge mount included according to Ubiquiti's specifications. The enclosure is aluminum, with stainless steel, SGCC steel, polycarbonate, and aluminum used for the specified mounting components. IP55 weatherproofing and IK07 tamper resistance support indoor and outdoor installation environments.
Key Features
- 5MP main camera with 30 FPS video
- Face Recognition, Face Unlock, NFC, and mobile access features
- 180° diagonal main-camera field of view with 5 m IR night vision
- Gigabit Ethernet with PoE+ power
- IP55 weatherproofing and IK07 tamper resistance
Applications
- Residential door entry and visitor communication
- Commercial building access points
- Office and enterprise entry systems
- UniFi Protect video door entry deployments
- UniFi Access installations requiring camera, intercom, and credential-based entry functions
DC Supplies Product Note
For installations requiring NFC, Face ID, or other door-access control functions, plan for a compatible UniFi Access Hub in addition to the G6 Entry. The device itself provides the camera, reader, intercom, and network endpoint functions.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-Entry |
| Product Type | Door Entry System / Access Reader / Intercom |
| Product Family | UniFi G6 Entry |
| UniFi Applications | Protect, Access |
| Main Camera Resolution | 5MP |
| Main Camera Sensor | 5MP CMOS |
| Main Camera Resolution Format | 1920 × 2560, 3:4 |
| Main Camera Max Frame Rate | 30 FPS |
| Main Camera Field of View | H: 100°, V: 135°, D: 180° |
| Package Camera Resolution | 8MP |
| Package Camera Max Frame Rate | 3 FPS |
| Package Camera Field of View | H: 66°, V: 51.7°, D: 78° |
| Night Vision | IR, up to 5 m (16 ft) |
| Face Recognition | Supported |
| Access Methods | NFC Card & Keyfob, Apple Wallet, Google Wallet, Mobile Unlock, Face Unlock |
| Audio | Two-way audio |
| Networking Interface | 1 × GbE RJ45 |
| Wireless Connectivity | BLE 4.1, NFC |
| Power Method | PoE+ |
| Supported Voltage | 42–57V DC |
| Maximum Power Consumption | 16W |
| Weatherproofing | IP55 |
| Tamper Resistance | IK07 |
| Enclosure Material | Aluminum |
| Mounting | Wall mount, gangbox mount plate, 20° wedge mount |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Operating Humidity | 5–90% noncondensing |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| NDAA Compliant | Yes |
| Depth | 1.17 in |
| Width | 1.77 in |
| Height | 6.93 in |
| Weight | 0.61 lb |
| Dimensions | 1.17 × 1.77 × 6.93 in (Depth × Width × Height) |
FAQs
What is the UVC-G6-Entry?
The UVC-G6-Entry is a UniFi intelligent door entry system combining a 5MP camera, access-control functions, NFC, and two-way audio.
Does the G6 Entry support Face Recognition?
Yes. Ubiquiti specifies Face Recognition and Face Unlock support.
What networking connection does the UVC-G6-Entry use?
It provides one Gigabit Ethernet RJ45 port and uses PoE+ for power.
Does the G6 Entry support NFC and mobile access?
Yes. It supports NFC cards and keyfobs, Apple Wallet, Google Wallet, mobile unlock, and Face Unlock.
