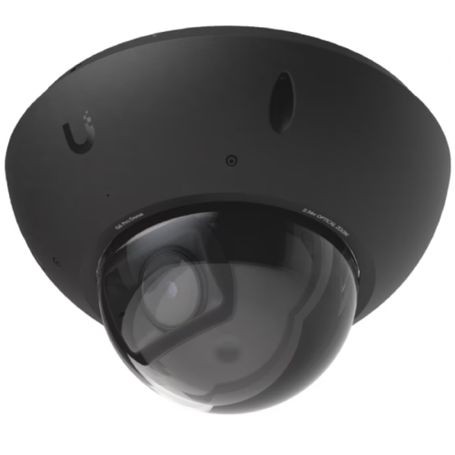

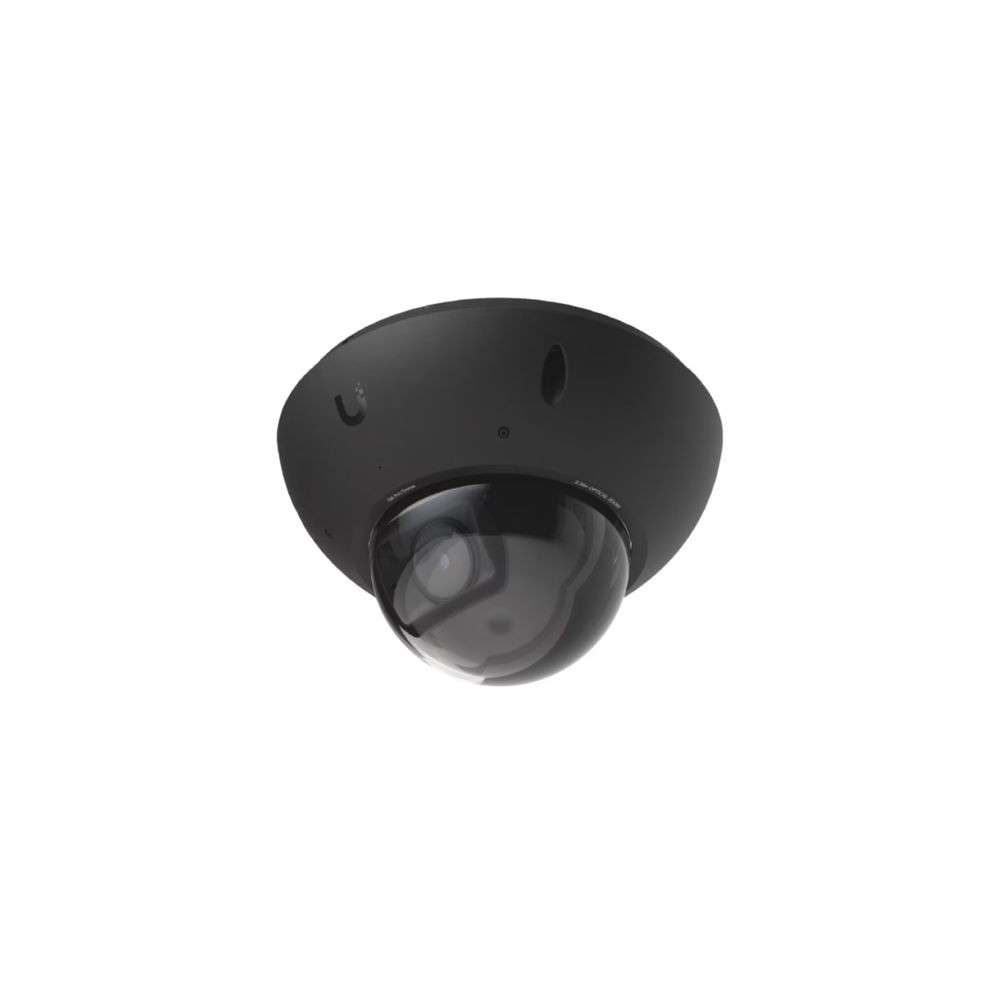

The Ubiquiti UVC-G6-PRO-DOME-B is a black UniFi G6 Pro Dome security camera designed for indoor and outdoor surveillance. It combines 4K video, an 8MP 1/1.2-inch sensor, 2.36x optical zoom, adaptive infrared illumination, and AI-powered recognition in a vandal-resistant dome enclosure.
Video and Imaging
The camera captures 8MP video at 3840 × 2160 resolution and up to 30 FPS. Its 5.9–13.8 mm varifocal lens provides 2.36x optical zoom, with wide and telephoto fields of view for flexible surveillance coverage.
AI Detection and Recognition
The UVC-G6-PRO-DOME-B supports face recognition, license plate recognition, and smart detection of people, vehicles, and animals. These capabilities support event-based monitoring and identification workflows within compatible UniFi applications.
Night Vision
Adaptive infrared LED illumination provides night vision up to 40 meters. An integrated IR-cut filter supports automatic transition between daytime and nighttime imaging.
Network and Power
A Gigabit Ethernet RJ45 interface provides network connectivity, while PoE+ supplies power to the camera. The supported input range is 42.5–57V DC with maximum power consumption of 15W.
Outdoor and Vandal-Resistant Construction
The camera has IP66 weatherproofing and IK10 impact resistance for demanding installation environments. Its enclosure combines aluminum alloy and polycarbonate, with a stainless steel mounting component.
Key Features
- 4K 8MP video at 3840 × 2160 and up to 30 FPS
- 2.36x optical zoom with 5.9–13.8 mm lens
- 40 m adaptive infrared night vision
- Face recognition and license plate recognition
- IP66 weatherproofing and IK10 tamper resistance
Applications
The UVC-G6-PRO-DOME-B is suited to building entrances, commercial facilities, perimeter areas, parking locations, corridors, and other surveillance environments requiring high-resolution video and a vandal-resistant dome form factor.
DC Supplies Product Note
The G6 Pro Dome combines a varifocal optical system with a relatively compact dome enclosure, allowing installers to adjust the optical framing after positioning the camera without changing the mounting location.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G6-PRO-DOME-B |
| Product Type | 4K PoE+ Dome Security Camera |
| Series | UniFi G6 Pro Dome |
| Color | Black |
| Resolution | 8MP, 3840 × 2160 |
| Maximum Frame Rate | 30 FPS |
| Image Sensor | 1/1.2-inch 8MP |
| Lens | 5.9–13.8 mm, f/1.5–f/2.9 |
| Optical Zoom | 2.36x |
| Field of View | Wide: 113.8° H / 61.9° V / 134° D; Tele: 45.5° H / 25.8° V / 52° D |
| IR Night Vision | 40 m |
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5–57V DC |
| Maximum Power Consumption | 15W |
| Smart Detection | People, vehicles, animals |
| Recognition | Face recognition, license plate recognition |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting | Ceiling, wall |
| Storage | MicroSD card |
| Operating Temperature | -20 to 50°C |
| Operating Humidity | 0–90% noncondensing |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Stainless steel |
| Processor | Quad-core Arm Cortex-A53 based chip |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
FAQs
What resolution does the UVC-G6-PRO-DOME-B support?
It supports 8MP 4K video at 3840 × 2160 resolution with a maximum frame rate of 30 FPS.
Does the camera have optical zoom?
Yes. The camera has a 2.36x optical zoom using a 5.9–13.8 mm lens.
How far can the camera see at night?
The integrated adaptive infrared illumination provides night vision up to 40 meters.
Does it support license plate recognition?
Yes. The UVC-G6-PRO-DOME-B supports license plate recognition as well as face recognition and smart detection of people, vehicles, and animals.
Is the camera suitable for outdoor installation?
Yes. It has an IP66 weatherproofing rating and IK10 impact resistance for outdoor and demanding surveillance installations.
How is the camera powered?
The camera uses PoE+ and supports a 42.5–57V DC input range, with maximum power consumption of 15W.
