Overview

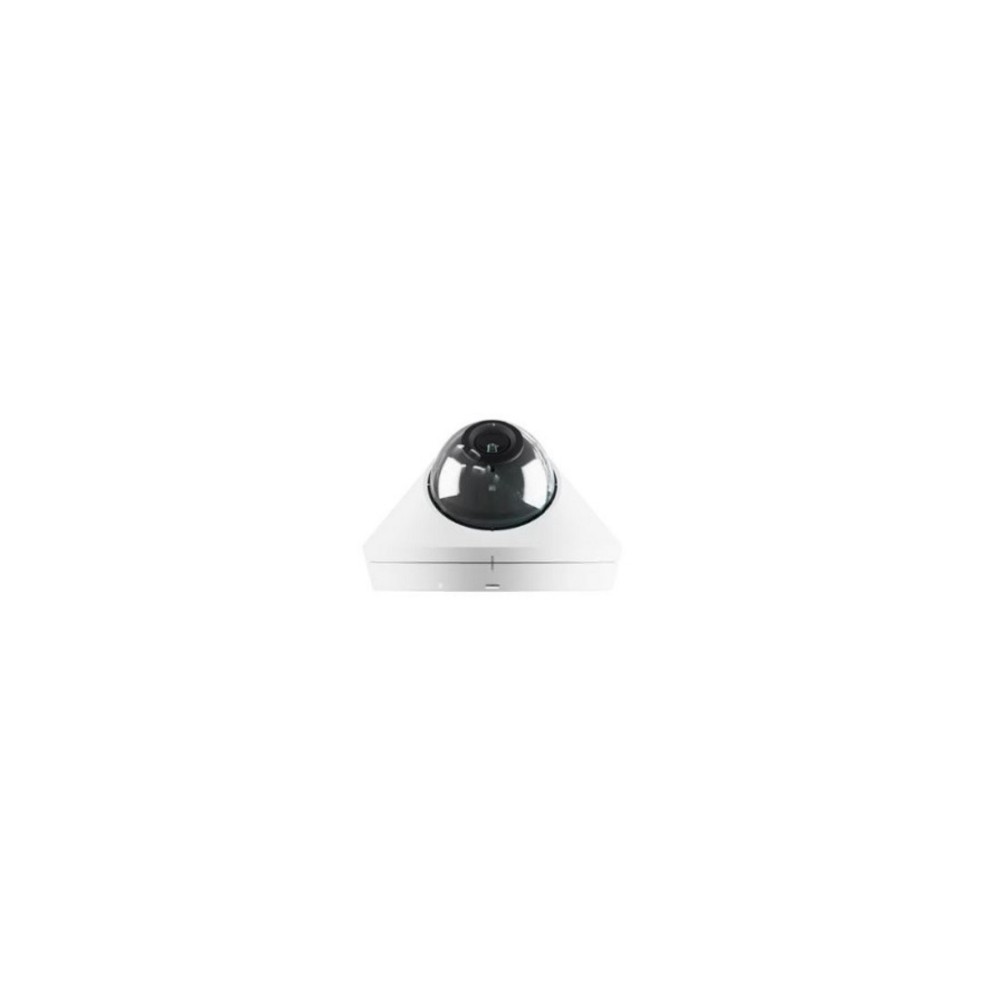

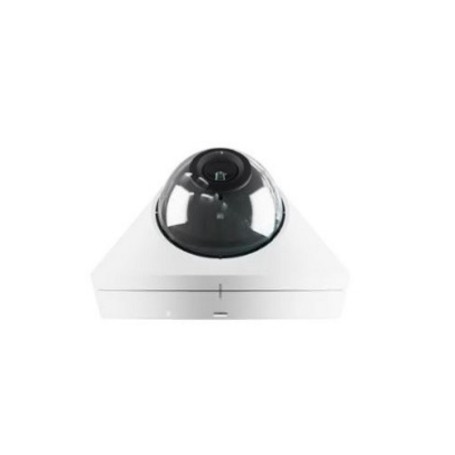

The Ubiquiti UVC-G5-DOME-3 is a three-pack of UniFi G5 Dome cameras designed for professional video surveillance deployments using the UniFi Protect platform. Each camera features a 4MP image sensor, 2K video resolution, infrared night vision, and AI-based detection for people and vehicles.
The dome-style enclosure is designed for ceiling or wall installation and includes a motorized infrared-cut filter for day and night operation. Power and network connectivity are provided through Ethernet with 802.3af PoE.
Video and Imaging
Each G5 Dome camera provides a maximum resolution of 2688 x 1512 at up to 30 frames per second. The camera uses a 5MP sensor with an effective 4MP resolution and provides a 102.3° horizontal, 68.8° vertical, and 122.3° diagonal field of view.
The integrated infrared LEDs provide night vision up to 20 m (66 ft). The camera includes an IR-cut filter for switching between day and night imaging modes. The specified image features include wide dynamic range and digital noise reduction for supported surveillance conditions.
AI Detection and Audio
The G5 Dome supports AI-based detection of people and vehicles. Each camera also includes an integrated microphone for audio capture within the supported UniFi Protect environment.
Network and Power
The camera uses a 10/100 Mbps Ethernet interface and receives power through 802.3af PoE. Maximum power consumption is specified at 5W. The camera is intended to connect to compatible PoE network equipment that can provide the required power and network connection.
Installation and Enclosure
The G5 Dome supports ceiling and wall mounting. Its enclosure is rated IPX5 for protection against water projected from any direction. The operating temperature range is -30°C to 50°C (-22°F to 122°F), with an operating humidity range of 5% to 90% non-condensing.
Key Features
- 4MP surveillance camera with 2688 x 1512 maximum resolution at 30 FPS
- Integrated infrared night vision with a range of up to 20 m (66 ft)
- AI detection for people and vehicles
- 102.3° horizontal field of view for broad area coverage
- 802.3af PoE connectivity with IPX5-rated enclosure
Applications
The UVC-G5-DOME-3 is suited to indoor and appropriately protected outdoor surveillance locations where a compact dome camera is preferred. The three-camera pack can be deployed across multiple monitoring areas within a UniFi Protect installation, such as entrances, corridors, offices, retail spaces, and other areas requiring video surveillance.
DC Supplies Product Note
Each camera requires 802.3af PoE and has a specified maximum power consumption of 5W. When deploying all three cameras, the PoE switch or PoE infrastructure should therefore provide sufficient power for three connected cameras in addition to any other connected PoE devices.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-G5-DOME-3 |
| Product Type | IP Dome Security Camera, 3-Pack |
| Product Family | UniFi G5 Dome |
| Application | UniFi Protect |
| Pack Quantity | 3 cameras |
| Sensor | 5MP |
| Effective Resolution | 4MP |
| Maximum Resolution | 2688 x 1512 |
| Maximum Frame Rate | 30 FPS |
| Horizontal Field of View | 102.3° |
| Vertical Field of View | 68.8° |
| Diagonal Field of View | 122.3° |
| Night Vision | Yes, infrared |
| Night Vision Range | Up to 20 m (66 ft) |
| Smart Detections | People and vehicles |
| Audio | Integrated microphone |
| Network Interface | 10/100 Mbps Ethernet |
| Power Method | 802.3af PoE |
| Maximum Power Consumption | 5W |
| Weather Resistance | IPX5 |
| Mounting | Ceiling and wall |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Operating Humidity | 5% to 90% non-condensing |
FAQs
How many cameras are included with the UVC-G5-DOME-3?
The UVC-G5-DOME-3 is a three-pack containing three UniFi G5 Dome cameras.
What resolution does the G5 Dome provide?
Each camera provides a maximum resolution of 2688 x 1512, with an effective 4MP image resolution and support for up to 30 FPS.
Does the camera support night vision?
Yes. The G5 Dome includes infrared night vision with a specified range of up to 20 m (66 ft).
What AI detections are supported?
The camera supports AI detection for people and vehicles.
How is the camera powered?
The G5 Dome uses 802.3af Power over Ethernet for power and network connectivity.
Can the G5 Dome be mounted outdoors?
The camera has an IPX5-rated enclosure and an operating temperature range of -30°C to 50°C. Installation should follow Ubiquiti's specified environmental and mounting requirements.
