Detailed Specifications

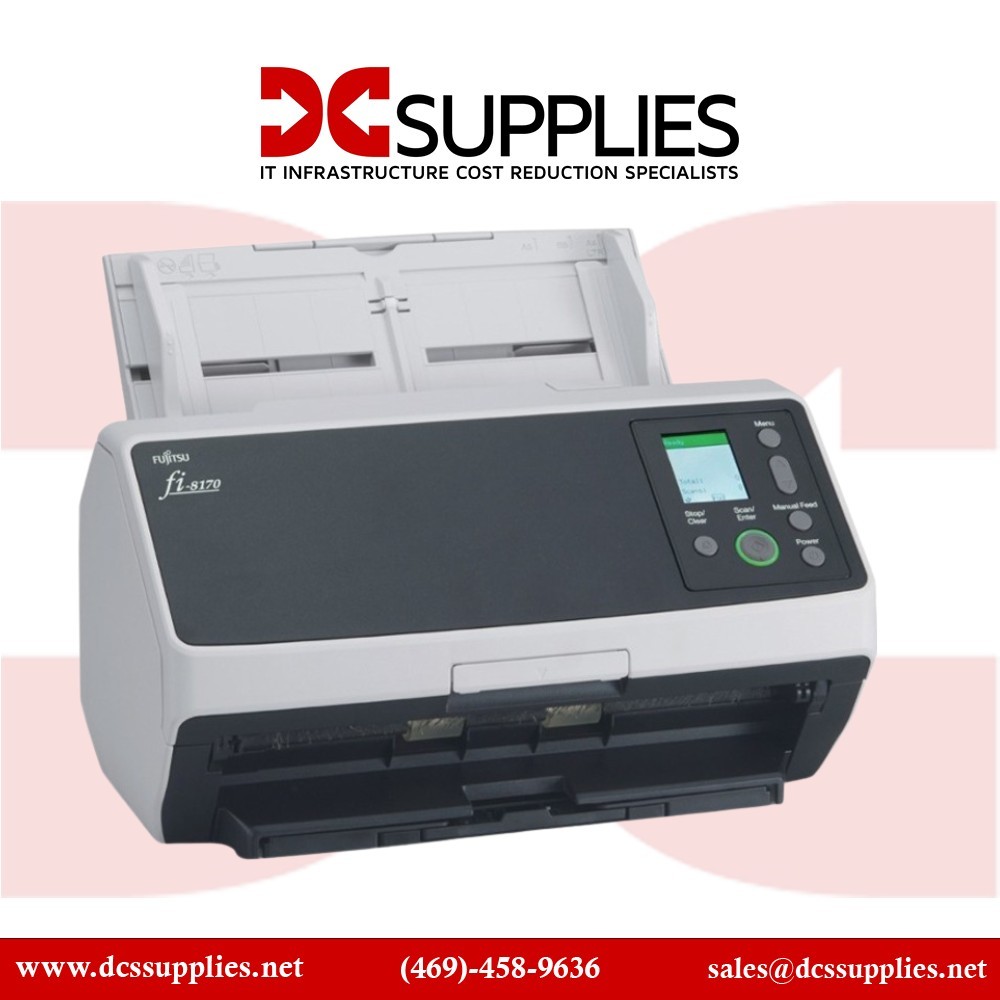

Ricoh PA03810-B055 fi-8170 Document Scanner
Overview
The Ricoh PA03810-B055 is the fi-8170 high-speed duplex document scanner designed for enterprise document capture, records management, financial services, healthcare, government, and business workflow automation. It combines high-volume scanning performance with advanced paper handling for reliable batch document processing.
The scanner delivers speeds of up to 70 pages per minute (ppm) and 140 images per minute (ipm) with duplex scanning at up to 600 dpi optical resolution. It features a 100-sheet Automatic Document Feeder (ADF), Dual CIS image sensors, USB 3.2 Gen 1 connectivity, Gigabit Ethernet, and an expected daily duty cycle of 10,000 sheets for demanding production environments.
The fi-8170 is well suited for centralized scanning stations, enterprise offices, and departmental document capture deployments. It is compatible with Windows, macOS, and Linux environments through Ricoh software and drivers. It is not intended for flatbed-only scanning applications or environments requiring large-format document scanning beyond its supported media size.
Key Features
- Scans up to 70 ppm and 140 ipm duplex
- 100-sheet ADF supports high-volume workflows
- USB 3.2 and Gigabit Ethernet connectivity
- 600 dpi optical resolution for detailed capture
- 10,000-sheet daily duty cycle for enterprise use
Specifications
| Specification | Value |
|---|
| Brand | Ricoh |
| Part Number | PA03810-B055 |
| Product Type | Desktop Duplex Document Scanner |
| Model | fi-8170 |
| Scanner Type | Sheetfed Duplex Scanner |
| Optical Resolution | 600 dpi |
| Scan Speed | Up to 70 ppm / 140 ipm |
| Image Sensor | Dual CIS |
| Automatic Document Feeder | 100 Sheets |
| Daily Duty Cycle | 10,000 Sheets |
| Maximum Document Size | 8.5 × 14 in |
| Interface | USB 3.2 Gen 1, Gigabit Ethernet |
| Long Document Scanning | Up to 240 in (6,096 mm) |
| Operating System Support | Windows, macOS, Linux |
| Included Software | PaperStream IP, PaperStream Capture, PaperStream ClickScan |
