Detailed Specifications

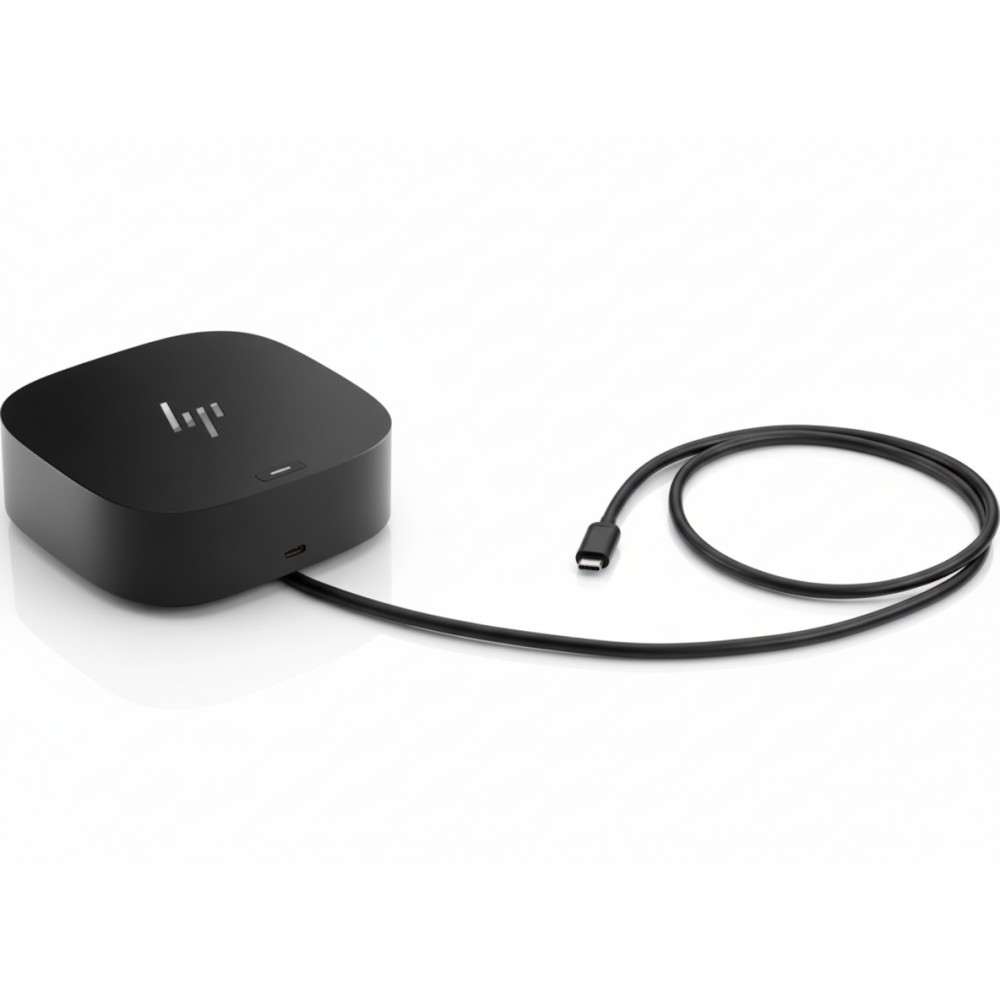

HP 5TW10AA - USB-C Dock G5
Overview :
The HP 5TW10AA (USB-C Dock G5) is a single-cable docking station designed for engineers and IT professionals deploying USB-C/Thunderbolt laptops in enterprise or mixed-device environments. It allows connection of peripherals, wired network and up to three external displays via one USB-C link while supplying up to 100 W power to the host. The unit supports both HP and non-HP notebooks that implement USB-C Alt-Mode with DisplayPort, making it suitable for desks, hot-desks, small offices or branch-site deployments. The compact 4.8 × 4.8 × 1.77 in footprint and 1.65 lb weight slide easily into modern workspace configurations. Enterprise manageability features such as PXE Boot, Wake-on-LAN and MAC-address pass-through add deployment value in campus or distributed IT roll-outs.
Key Features :
Supplies up to 100 W to host via USB-C with PD
Single cable host connection supports video, data and power
Dual DisplayPort 1.4 + HDMI 2.0 support three displays
Gigabit RJ-45 network port and e-tag asset tracking enabled
4.8 × 4.8 in footprint and 1.65 lb weight ease deployment
Specifications
| Specification | Detail |
|---|
| Brand | HP |
| Part Number | 5TW10AA |
| Product Type | USB-C Dock G5 |
| Host Connection | USB-C single-cable (USB Power Delivery) |
| Power to System | Up to 100 W via USB-C |
| Power to Host (PD) | 5V, 9V, 10V, 12V, 15V, 20V at 5A max |
| Front Ports | 1× USB-C (data + 15 W out), 1× USB-C cable to host |
| Side Ports | 2× USB 3.0 charging, 1× combo audio jack |
| Back Ports | 2× USB 3.0 charging, 2× DisplayPort 1.4, 1× HDMI 2.0, 1× RJ45 Gigabit, 1× lock slot |
| Dimensions (W×D×H) | 4.8 × 4.8 × 1.77 in |
| Weight | 1.65 lb |
| Supported Displays | Up to three displays (various modes) |
| Operating Systems | Windows 10/11, macOS, Chrome OS |
