Overview

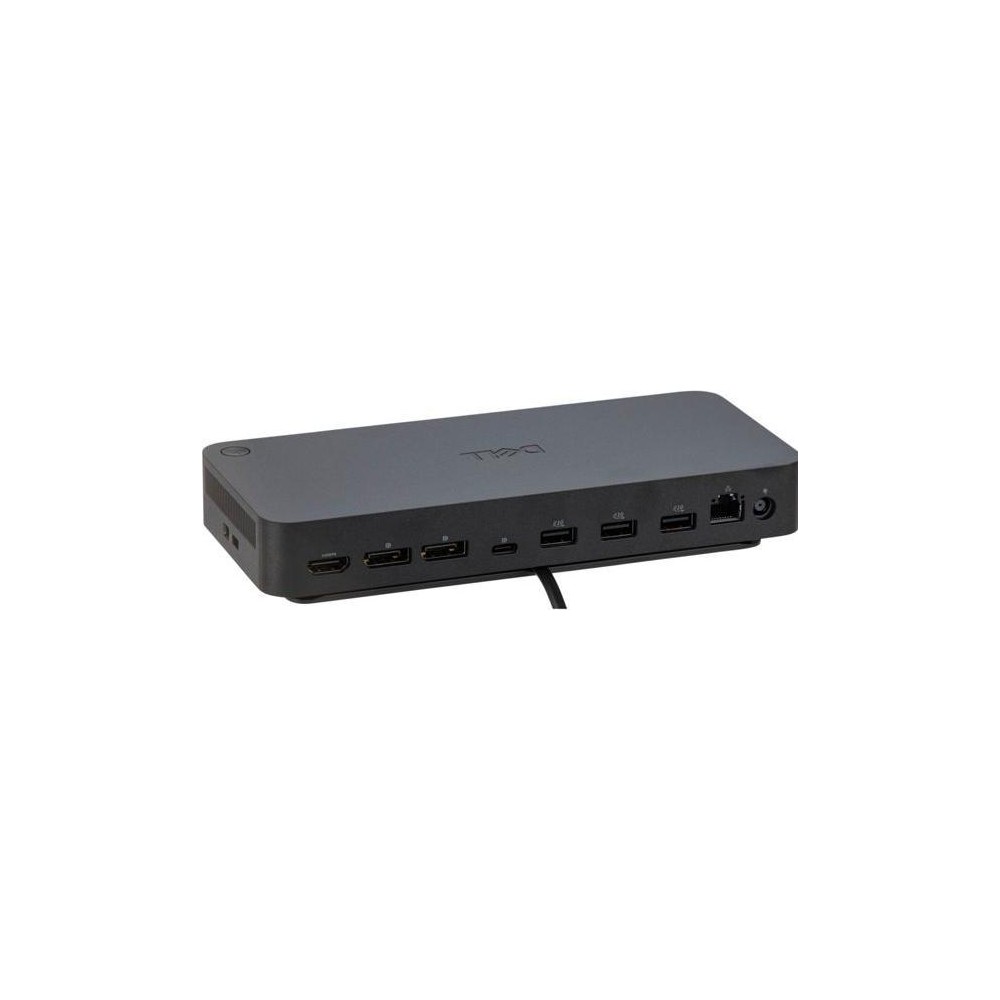

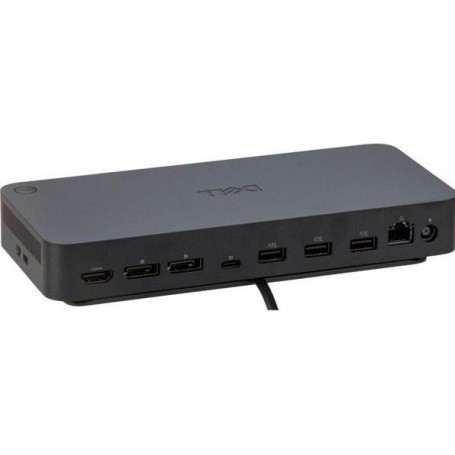

The Dell Pro Dock WD25 is a professional USB-C docking station designed to expand connectivity for compatible notebooks and desktop systems. It combines multiple display outputs, USB 10Gbps ports, 2.5GbE Ethernet, and host power delivery in a compact docking solution for workstation and enterprise deployments.
Display Connectivity
The WD25 provides two DisplayPort 1.4 outputs, one HDMI 2.1 port, and one USB-C 3.2 Gen 2 Multi-Function DisplayPort port supporting DisplayPort 1.4 Alt Mode. With compatible host hardware and Display Stream Compression, the dock supports up to four WQHD displays at 60Hz, three WQHD displays at 60Hz, two 5K displays at 60Hz, or one 6K display at 60Hz.
USB Connectivity
The dock provides four USB-A 3.2 Gen 2 ports with 10Gbps data transfer and one USB-C 3.2 Gen 2 port with 10Gbps data transfer. Additional USB-C and USB-A connections provide power to compatible peripherals even when the host computer is not connected.
Network Connectivity
An integrated RJ45 Ethernet interface supports 10/100/1000/2500 Mbps networking, providing 2.5GbE connectivity for compatible systems. The WD25 also supports Wake-on-LAN and MAC Address Pass-Through on supported computers.
Power Delivery
The WD25 uses a 130W AC power adapter and can provide up to 100W to compatible Dell computers or up to 96W to compatible non-Dell computers. The available charging capability depends on the host system and its USB Power Delivery support.
Compatibility and Management
The WD25 is compatible with USB Type-C computers supporting DisplayPort Alt Mode and Thunderbolt computers. Dell management capabilities include PXE Boot, Wake-on-LAN, MAC Address Pass-Through, Dock Power Button Sync, firmware updates, port disablement, and Kernel Direct Memory Access protection.
Key Features
- Supports up to four external displays with compatible host configurations.
- Provides 2.5GbE RJ45 Ethernet connectivity.
- Includes four USB-A and one USB-C 10Gbps data ports.
- Provides up to 100W power delivery to compatible Dell systems.
- Supports DisplayPort 1.4, HDMI 2.1, and USB-C DisplayPort Alt Mode video connections.
Applications
The WD25 is suited to enterprise laptop deployments, office workstations, engineering desks, professional workstations, and other environments where a USB-C notebook requires expanded display, network, peripheral, and power connectivity.
DC Supplies Product Note
For multi-monitor deployments, verify the host computer's DisplayPort Alt Mode or Thunderbolt capabilities and graphics support before installation. The maximum number of displays and supported resolutions depend on the host system, DisplayPort configuration, and available graphics bandwidth.
Specifications
| Specification | Details |
|---|
| Brand | Dell |
| Part Number / MPN | WD25 |
| Product Type | Docking Station |
| Series | Pro |
| Connectivity Technology | Wired |
| DisplayPort | 2 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.1 |
| USB-C Video | 1 x USB-C 3.2 Gen 2 Multi-Function DisplayPort 1.4 |
| USB-A Data | 4 x USB-A 3.2 Gen 2, 10Gbps |
| USB-C Data | 1 x USB-C 3.2 Gen 2, 10Gbps |
| Ethernet | RJ45 10/100/1000/2500 Mbps, 2.5GbE |
| External Displays | Up to 4 |
| Maximum Display Configuration | Up to 4 x WQHD, 2 x 5K, or 1 x 6K at 60Hz with compatible configurations |
| Power Adapter | 130W |
| Power Delivery | Up to 100W to Dell systems; up to 96W to non-Dell systems |
| Docking Cable Length | 0.9 m |
| Supported Operating Systems | Windows 10, Windows 11, Ubuntu 24.04, Red Hat Enterprise Linux 9.6+, ChromeOS 137 |
| Management Features | PXE Boot, Wake-on-LAN, MAC Address Pass-Through, Dock Power Button Sync, firmware updates, port disablement, DMA protection |
| Security | Kensington Security Slot |
| Warranty | 3-Year Limited Hardware Warranty with Advanced Exchange |
Frequently Asked Questions
How many monitors can the Dell WD25 support?
The WD25 supports up to four external displays when used with a compatible host system and suitable display configuration.
How much power does the WD25 provide?
The WD25 provides up to 100W to compatible Dell computers and up to 96W to compatible non-Dell computers when used with its 130W AC adapter.
Does the WD25 support 2.5GbE Ethernet?
Yes. The dock includes an RJ45 Ethernet port supporting 10/100/1000/2500 Mbps connectivity.
What video outputs does the WD25 provide?
The dock provides two DisplayPort 1.4 ports, one HDMI 2.1 port, and one USB-C Multi-Function DisplayPort connection.
Is the WD25 compatible with Thunderbolt computers?
Yes. Dell specifies compatibility with Thunderbolt computers as well as USB Type-C computers supporting DisplayPort Alt Mode.
