Overview

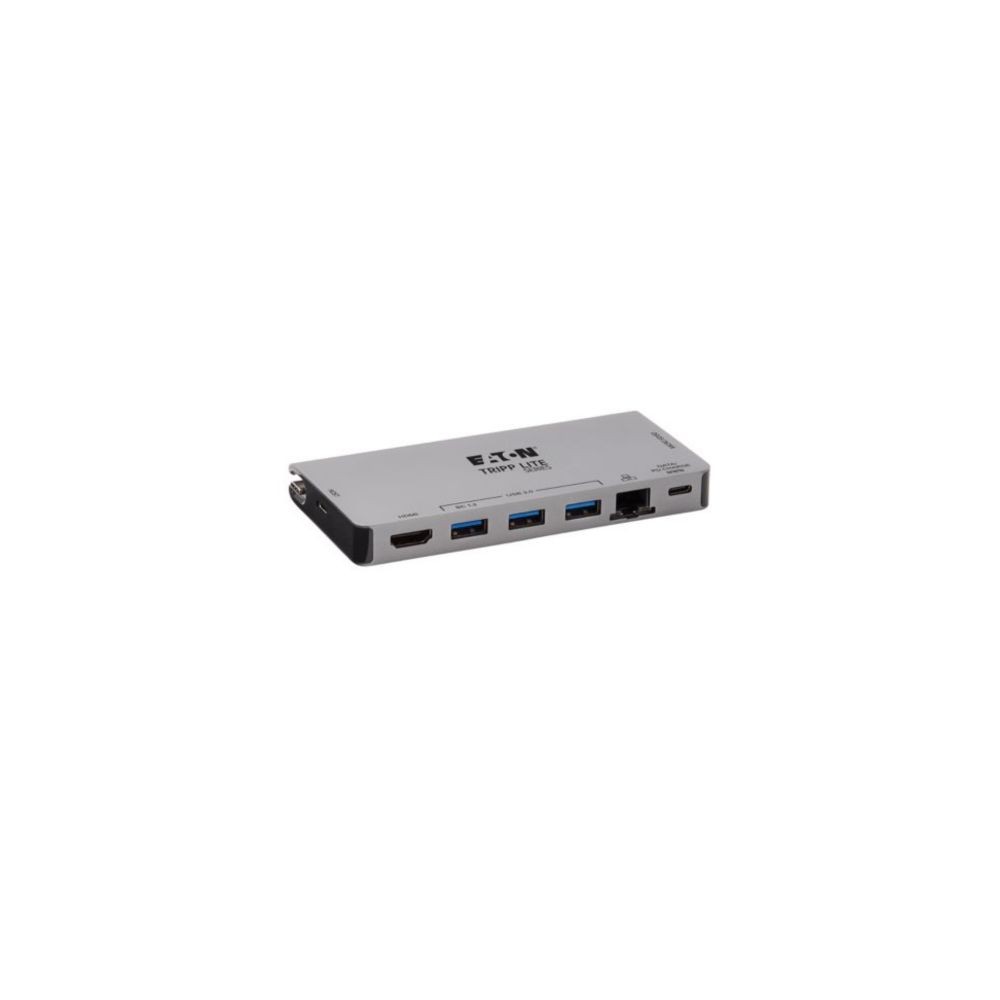

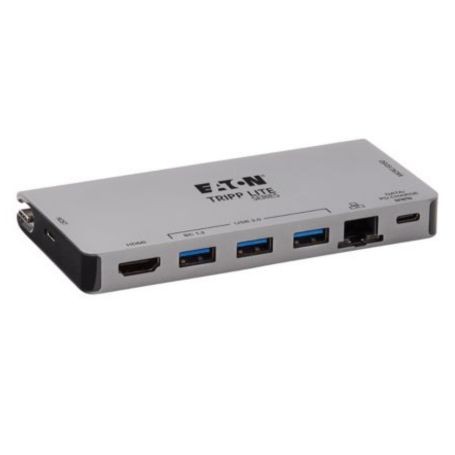

The Eaton Tripp Lite U442-DOCK5D-GY is a USB-C portable docking station that expands a compatible laptop, Chromebook, tablet or other USB-C host with HDMI video, USB connectivity, Gigabit Ethernet, SD and Micro SD card access. The dock uses a detachable USB-C cable and supports USB-C DisplayPort Alternate Mode for video output.
Video and Display
The HDMI 1.4 output supports resolutions up to 3840 x 2160 at 30 Hz, with support for 4:4:4 chroma subsampling and HDCP 1.4. The dock is designed to connect a compatible USB-C or Thunderbolt 3 host to an HDMI display such as a monitor, HDTV or projector. A DVI display can also be connected through an appropriate HDMI-to-DVI adapter.
USB Connectivity and Charging
Three USB-A USB 3.2 Gen 1 ports provide data transfer rates up to 5 Gbps and support connected USB peripherals such as storage devices, keyboards, mice and printers. A separate USB-C port provides USB 3.2 Gen 1 data connectivity together with Power Delivery charging.
The USB-C PD port can deliver up to 100W of PD charging power to the connected host device when used with a compatible PD charger. The 100W figure describes charging/output power delivered to the host, rather than power consumed as an input by the dock itself.
For USB-A charging, one USB-A port supports up to 5V/1.5A (7.5W) for mobile-device charging. When a PD 3.0-compliant charger is connected, all three USB-A ports share a combined 5V/2A (10W) charging allocation. Without external power connected, USB-A output depends on the connected host source.
Networking and Memory Card Access
The integrated RJ45 Ethernet port supports 10/100/1000 Mbps network connections. The dock also provides separate SD and Micro SD memory card slots for accessing external storage through the USB-C host connection. The SD and Micro SD slots can be used simultaneously.
Key Features
- Up to 3840 x 2160 resolution at 30 Hz through HDMI 1.4
- Up to 100W USB Power Delivery charging output to a compatible host device
- Three USB-A USB 3.2 Gen 1 ports with data rates up to 5 Gbps
- Integrated 10/100/1000 Mbps Gigabit Ethernet connectivity
- SD and Micro SD memory card slots with detachable USB-C host cable
Applications
The U442-DOCK5D-GY can consolidate display, USB peripheral, wired networking and removable-storage connections for compatible USB-C laptops, Chromebooks and other supported host devices. It is suited to portable workstation setups where a single USB-C connection is used to expand available connectivity.
DC Supplies Product Note
The charging figures should be considered separately when planning a deployment: the USB-C PD connection can provide up to 100W to the host, while the three USB-A ports have a shared 10W allocation when the dock is connected to a PD 3.0-compliant charger. The actual host charging level also depends on the connected device and compatible power source.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite series |
| Part Number / MPN | U442-DOCK5D-GY |
| Product Type | USB-C Docking Station |
| Color | Gray |
| Host Connector | USB-C Male |
| HDMI Output | HDMI 1.4, Female |
| Maximum Video Resolution | 3840 x 2160 at 30 Hz |
| HDCP | HDCP 1.4 |
| USB-A Ports | 3 x USB 3.2 Gen 1, Female |
| USB-C Data/PD Port | USB 3.2 Gen 1, Female |
| USB Data Transfer Rate | Up to 5 Gbps |
| Power Delivery | USB PD 3.0, up to 100W to host |
| Host Charging Output | Up to 20V/5A (100W) |
| USB-A Charging | 5V/1.5A (7.5W) dedicated port; three USB-A ports share 5V/2A (10W) with PD 3.0 power connected |
| Ethernet | RJ45, 10/100/1000 Mbps |
| Memory Card Slots | SD and Micro SD |
| IEEE Standards | 802.3, 802.3az, 802.3u, 802.3x |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Material | Aluminum |
| Dimensions | 5.0 x 2.4 x 0.6 in |
| Weight | 0.35 lb |
| Warranty | 3-year limited warranty |
| Compliance | CE, RoHS, FCC, REACH, NOM, ICES |
FAQs
Does the U442-DOCK5D-GY provide 100W input to the dock?
No. The 100W specification refers to USB Power Delivery charging/output available to the connected host device through the USB-C PD port, up to 20V/5A with a compatible power source and host.
How much charging power is available through the USB-A ports?
One USB-A port supports up to 5V/1.5A (7.5W). When connected to a PD 3.0-compliant charger, all three USB-A ports share a combined 5V/2A (10W) allocation.
What display resolution does the HDMI output support?
The HDMI output supports up to 3840 x 2160 at 30 Hz and supports HDCP 1.4 and 4:4:4 chroma subsampling.
Does the dock support Gigabit Ethernet?
Yes. Its RJ45 port supports 10/100/1000 Mbps Ethernet connectivity.
Are both SD and Micro SD cards supported?
Yes. The dock provides separate SD and Micro SD card slots, and the manufacturer specifies that they can be used simultaneously.
Is a detachable USB-C cable included?
Yes. The package includes a detachable USB 3.2 Gen 1 Type-C male-to-male cable measuring approximately 0.4 ft (12.1 cm), along with the owner's manual.
