Detailed Specifications

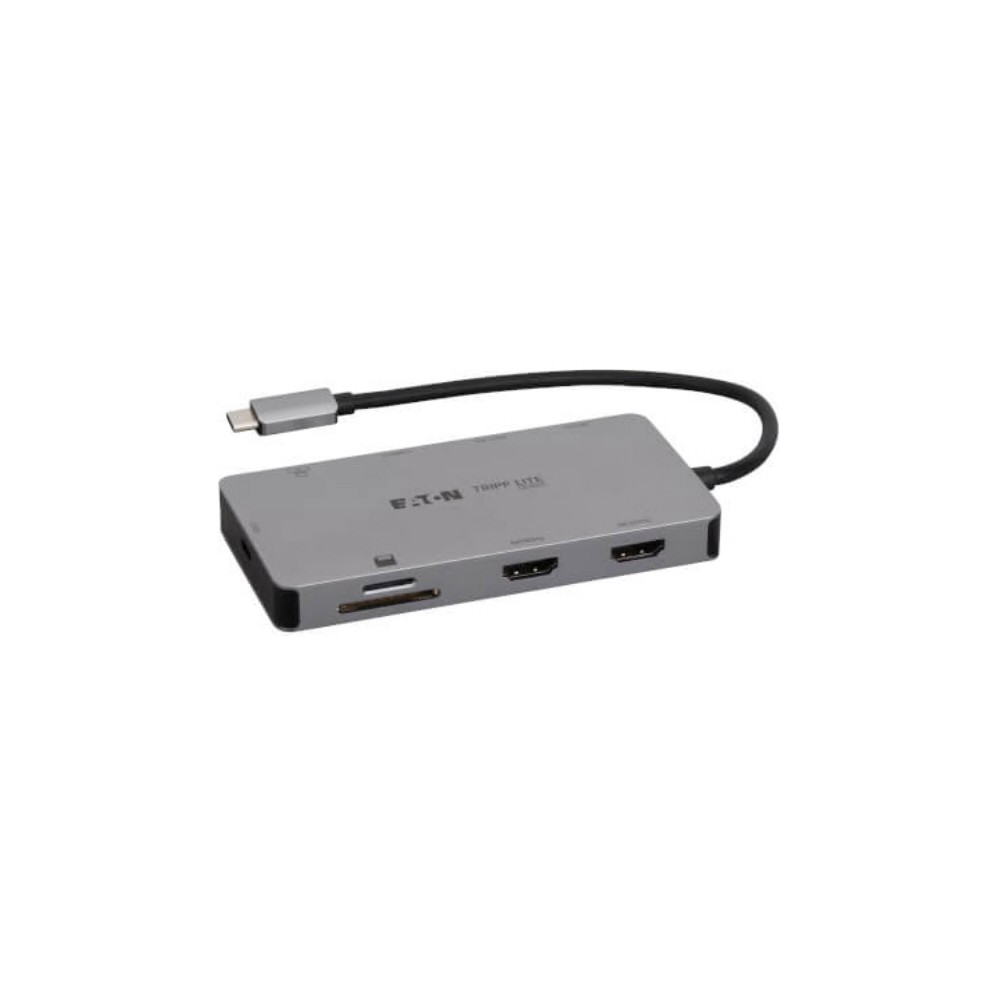

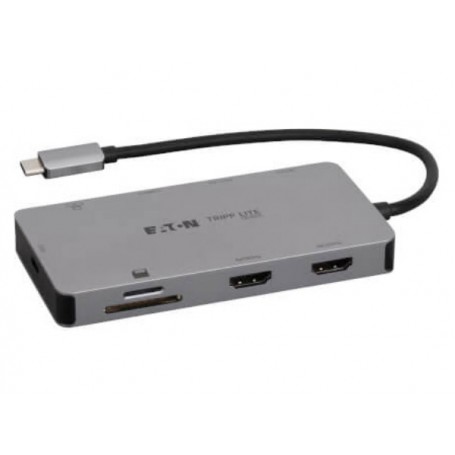

Eaton U442-DOCK8G-GG2 USB-C Triple-Display Travel Dock compatible Tripp Lite
Overview :
The Eaton U442-DOCK8G-GG2 is a Tripp Lite by Eaton USB-C travel docking station designed to expand a compatible laptop, Chromebook, tablet or computer into a multi-display workstation. It supports up to three external displays through two HDMI outputs and one USB-C video output.
The dock supports up to 8K at 30 Hz through USB-C and up to 4K at 60 Hz through each HDMI output. With a compatible DisplayPort 1.4 Alt Mode host and DSC support, the three video outputs can operate simultaneously in dual 4K/60 Hz or triple 4K/30 Hz configurations. Actual video capability depends on the host device, cables and connected displays.
The U442-DOCK8G-GG2 also provides USB-A and USB-C data connectivity, Gigabit Ethernet, SD and microSD card slots, and USB Power Delivery 3.0. The USB-C PD input supports 100W total, with 85W available for charging the connected host after 15W is allocated to powering the dock itself.
Key Features :
- USB-C travel docking station
- Supports up to 3 external displays
- Two HDMI outputs
- One USB-C video/data output
- USB-C video up to 8K at 30 Hz
- HDMI video up to 4K at 60 Hz per port
- Supports HDR and DSC
- Supports up to 36-bit Deep Color
- USB 3.2 Gen 1 data transfer up to 5 Gbps
- USB 2.0 data support up to 480 Mbps
- Gigabit Ethernet connectivity
- SD and microSD card slots
- 100W USB Power Delivery 3.0
- Up to 85W host charging
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Tripp Lite by Eaton |
| Part Number | U442-DOCK8G-GG2 |
| Product Type | USB-C Travel Docking Station |
| Host Connection | USB-C Male |
| Number of Monitors Supported | 3 |
| Video Outputs | 2 x HDMI, 1 x USB-C |
| USB-C Video Resolution | Up to 7680 × 4320 @ 30 Hz |
| HDMI Resolution | Up to 3840 × 2160 @ 60 Hz per port |
| USB-C High Refresh Support | Up to 4K @ 120 Hz |
| Dual-Display Configuration | Up to 4K @ 60 Hz × 2 with compatible DSC host |
| Triple-Display Configuration | Up to 4K @ 30 Hz × 3 with compatible DSC host |
| DisplayPort Specification | DisplayPort 1.4 |
| HDMI Specification | HDMI |
| HDCP | HDCP 1.4 / HDCP 2.3 |
| HDR | Yes |
| DSC | Yes |
| Color Depth | Up to 36-bit Deep Color |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| USB Data Ports | USB-A and USB-C |
| USB Specification | USB 2.0 / USB 3.2 Gen 1 |
| USB Data Rate | Up to 5 Gbps |
| Ethernet | RJ45 Gigabit Ethernet |
| Network Speed | 10/100/1000 Mbps |
| Memory Card Slots | SD and microSD |
| USB Power Delivery | PD 3.0 |
| Maximum PD Power | 100W |
| Host Charging | Up to 85W |
| Dock Power Allocation | 15W |
